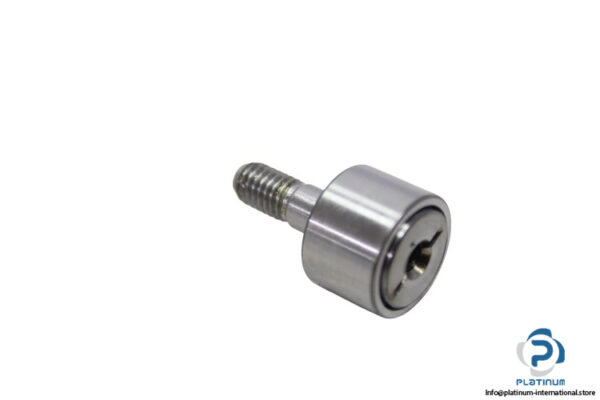

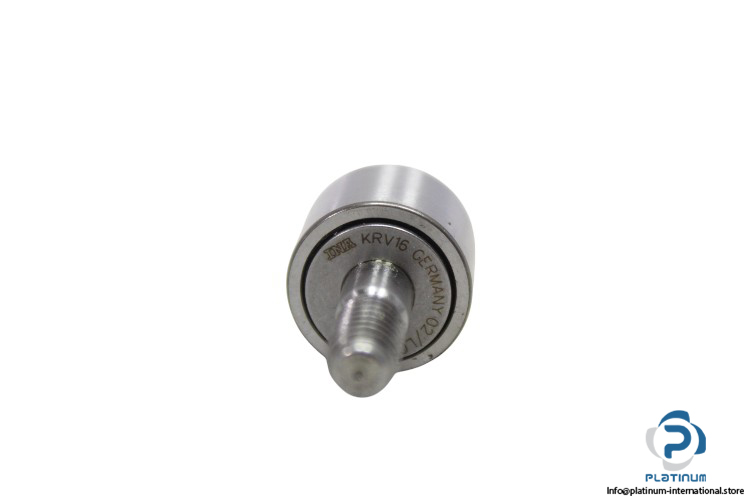

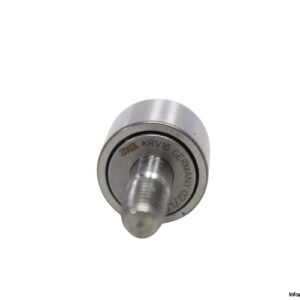

INA KRV16 Stud Type Track Roller
The INA KRV16 Stud Type Track Roller is designed for smooth and efficient operation, offering robust performance for various industrial applications. It features a compact design with precise dimensions for effective load distribution and stability.
Manufacturer: INA
Type: Stud Type Track Roller
Model: KRV16
Technical Information:
- Outside Diameter (D): 16 mm
- Fit Diameter of Roller Stud (d1): 6 mm
- Width: 28 mm
- Width of Thrust Washer: 12.2 mm
- Width, Outer Ring: 11 mm
- Thread G: M6
- Thread Length: 8 mm
