Manufacturer: Schaeffler INA

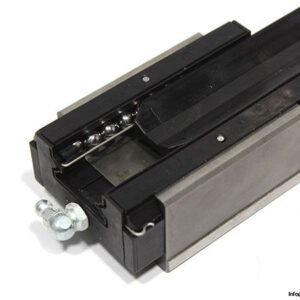

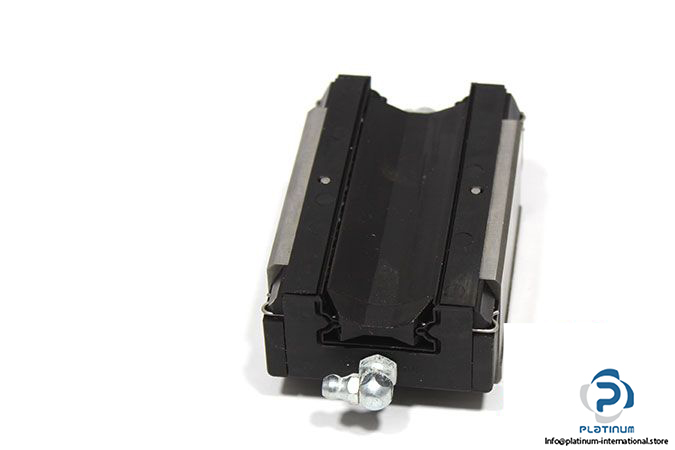

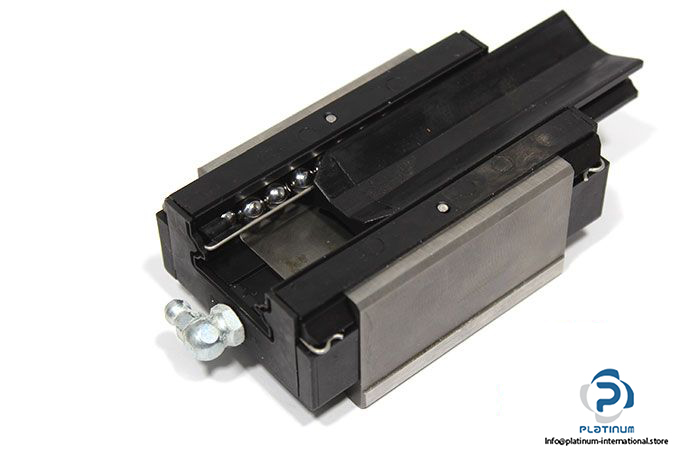

Type: Tow-Row Linear Recirculating Ball Bearing Carriage

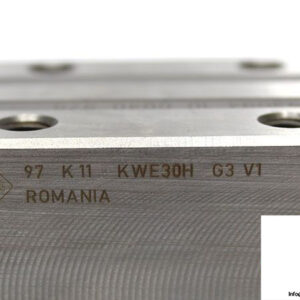

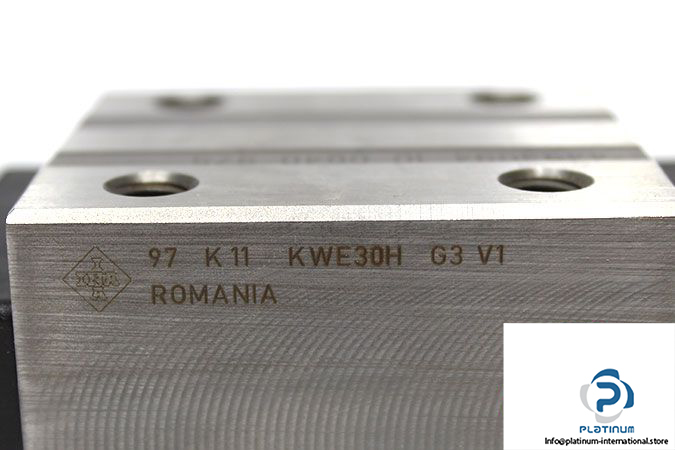

Model: KWE30-H-V1-G3

Size: 30 mm

Basic Load Ratings:

Dynamic C: 22.5 kN

Static C₀: 29.7 kN

Static Moment Rating About:

X axis M_0x: 437 Nm

Y axis M_0Y: 335 Nm

Z axis M_0Z: 335 Nm

Preload: V1

Accuracy Class: G3

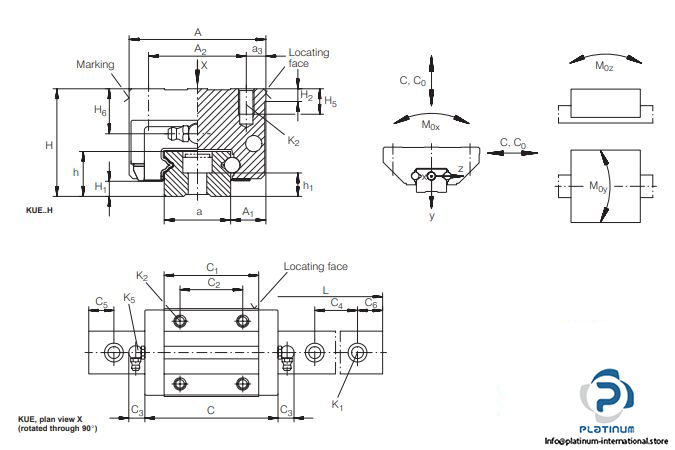

Dimensions:

Height system H: 45 mm

Width carriage A: 60 mm

Overall length carriage C: 93 mm

A₂: 40 mm

C₂: 40 mm

Weight: 1 kg
