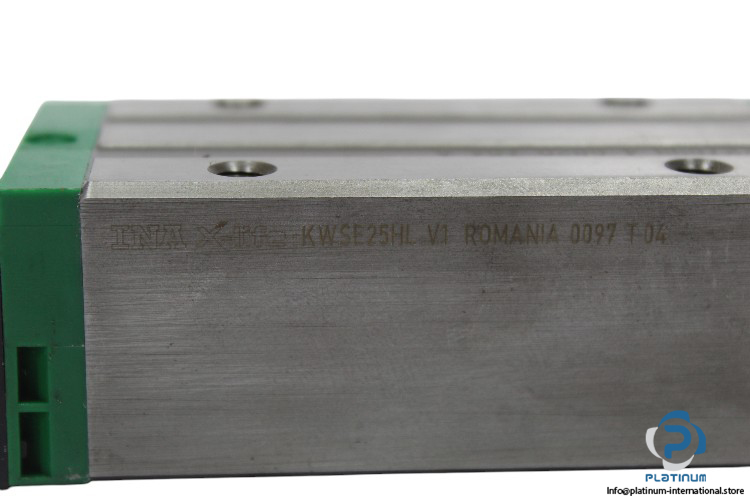

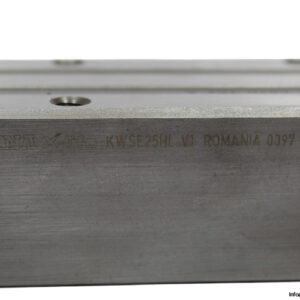

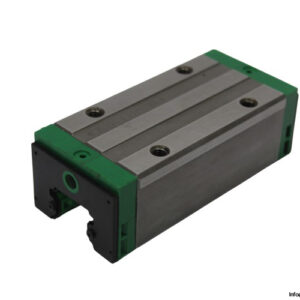

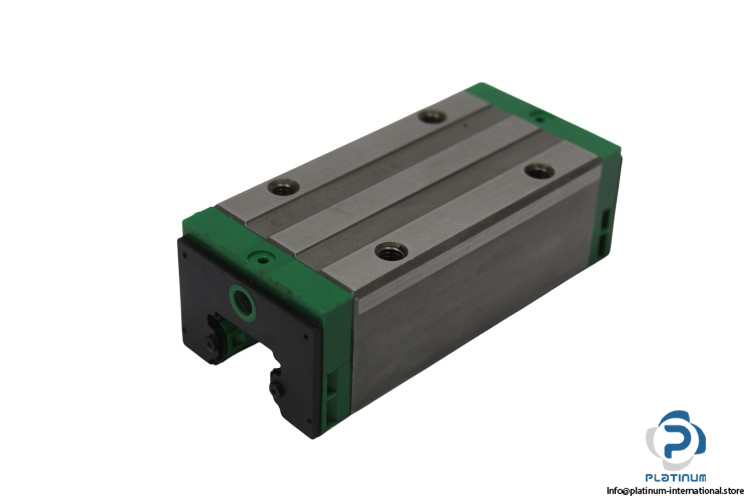

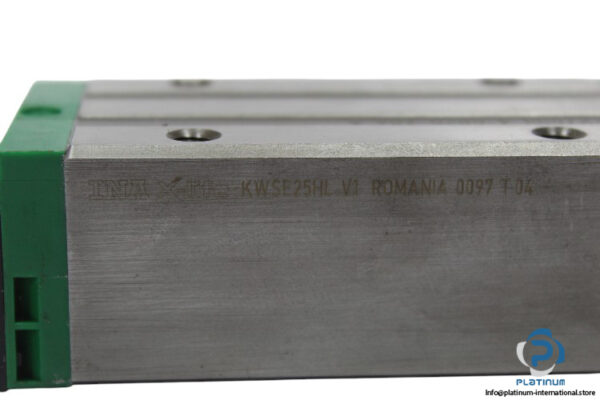

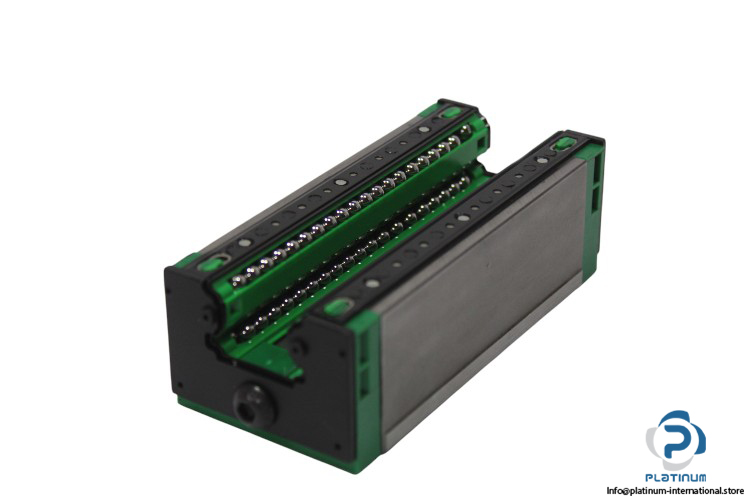

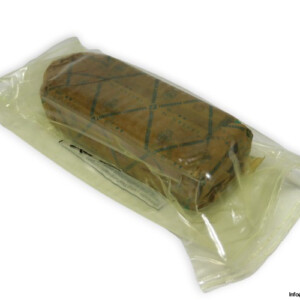

INA KWSE25 HL V1 G3 Linear Recirculating Ball Bearing
The INA KWSE25 HL V1 G3 is a high-precision linear recirculating ball bearing block designed for demanding linear motion applications. Featuring a high-load long carriage, accuracy class G3, and preload class V1, it delivers outstanding performance in dynamic, static, and lateral load conditions.
Manufacturer: INA
Type: Linear Recirculating Ball Bearing
Model: KWSE25 HL V1 G3

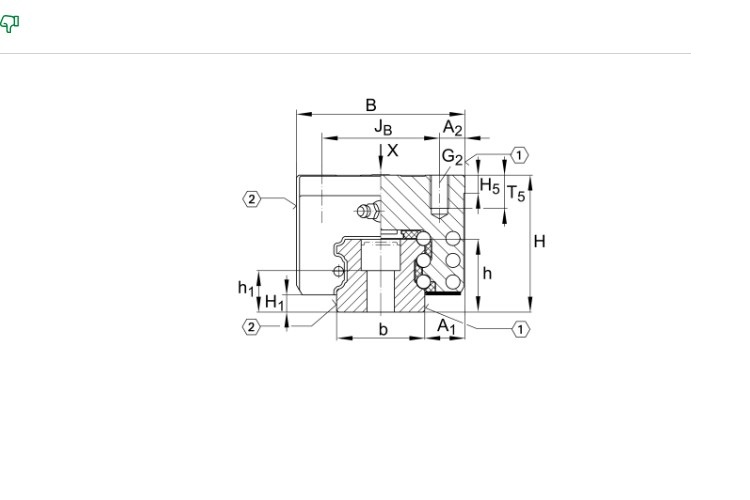

Technical Information:

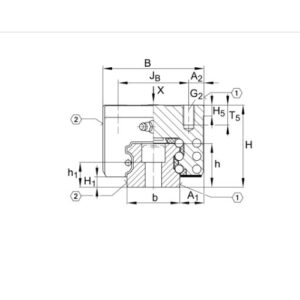

- Size: 25 mm
- Total Height (H): 40 mm
- Width of Carriage (B): 48 mm

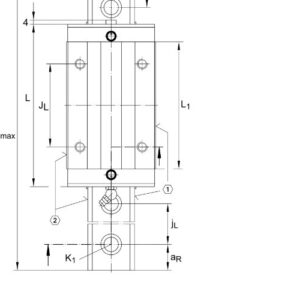

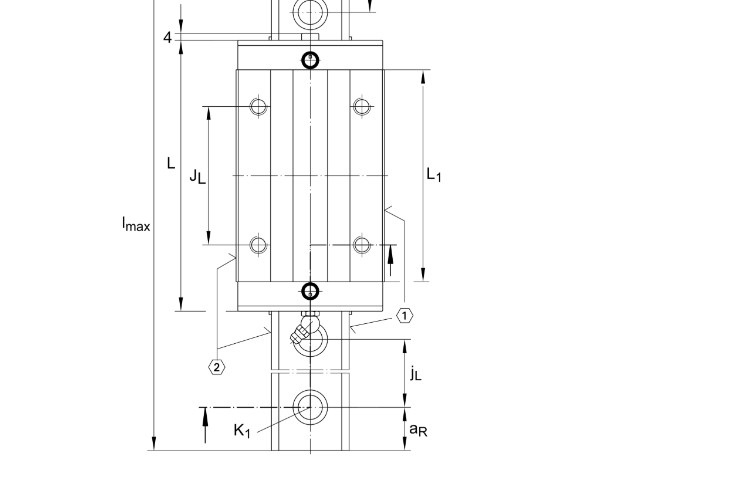

- Overall Length of Carriage (L): 104.3 mm
- Block Height (H-H1): 34.8 mm
- JB: 50 mm
- JL: 35 mm
- Carriage Design: HL “ High, Long Carriage
- Accuracy Class: G3
- Carriage Preload: V1
- Basic Load Ratings (Compressive Load):
- Dynamic (C): 35300 N
- Static (C0): 93700 N
- Basic Load Ratings (Tensile Load):
- Dynamic (C): 33000 N
- Static (C0): 62000 N
- Basic Load Ratings (Lateral Load):
- Dynamic (C): 35000 N
- Static (C0): 65000 N
