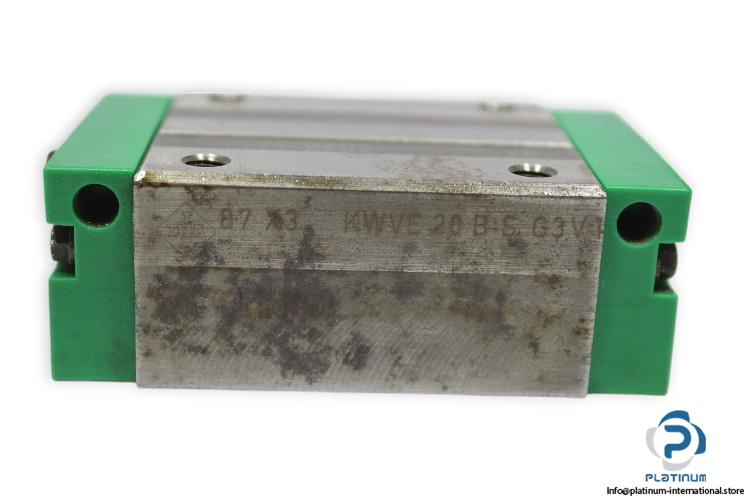

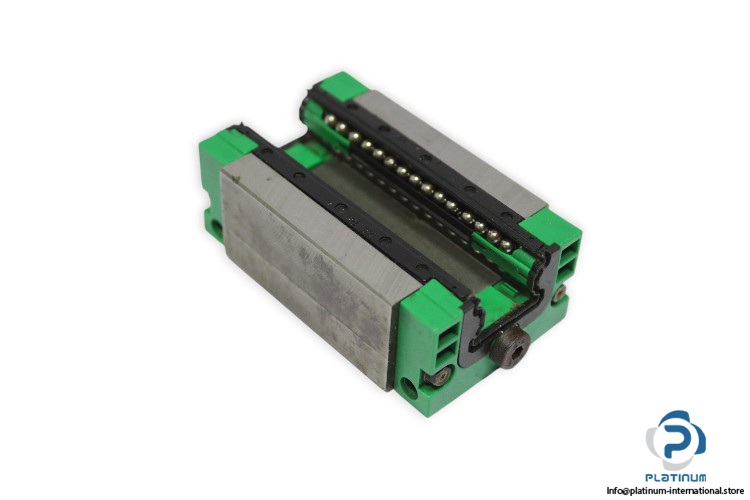

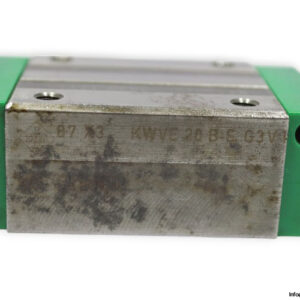

Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE20-B-S-G3-V1
Size: 20 mm

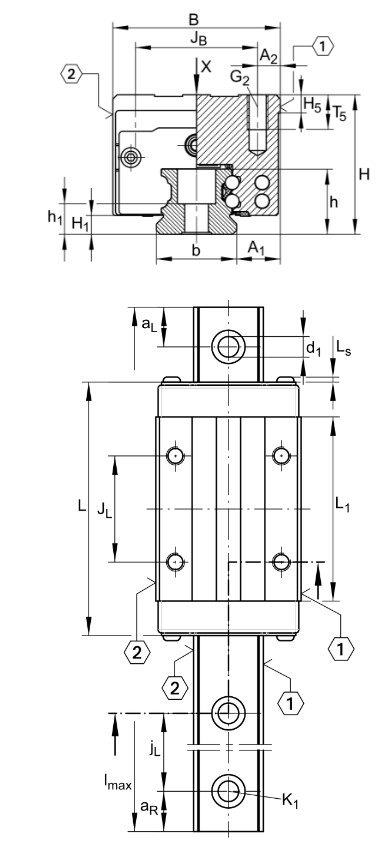

Dimensions
Overall length carriage ( L ): 71.4 mm
Width carriage ( B ): 44 mm
Height system ( H ): 30 mm
Block Height: 25.5 mm
JB: 32 mm
JL: 36 mm
Lubrication Connector: 5M
Carriage design :S, Narrow Carriage (four rows)
Basic Dynamic load rating: 13100 N
Basic Static load rating: 27000 N
Mounting Hole: 4 tapped holes
Guideway Model: TKVD20(-U)
Accuracy Class: G3
Carriage Preload: V1
