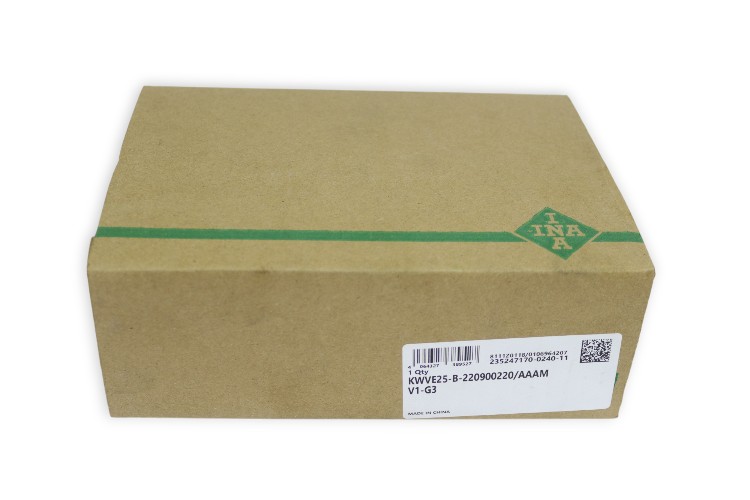

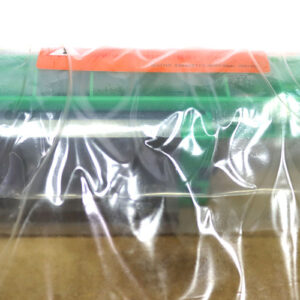

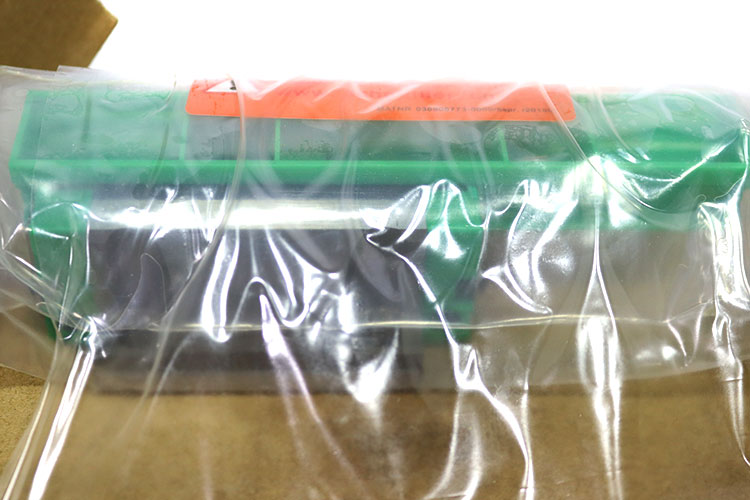

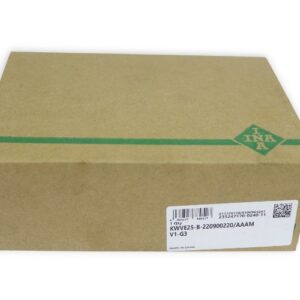

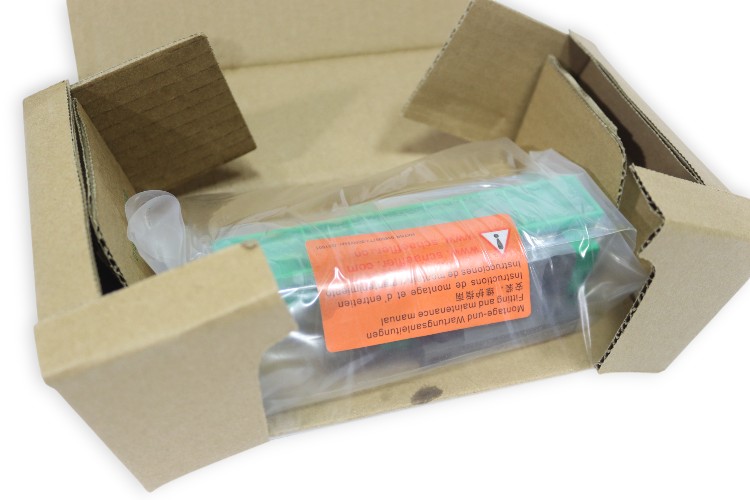

INA KWVE25-B-220900220/AAAM V1-G3 RECIRCULATING BALL BEARING CARRIAGE
The INA KWVE25-B-220900220/AAAM V1-G3 is a high-precision recirculating ball bearing carriage designed for smooth linear guidance and reliable performance in industrial applications. With preload V1 and accuracy class G3, it delivers excellent rigidity and load capacity.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage

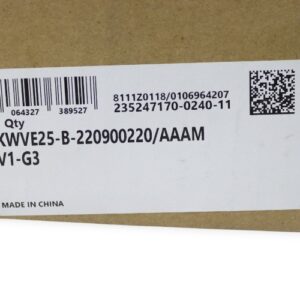

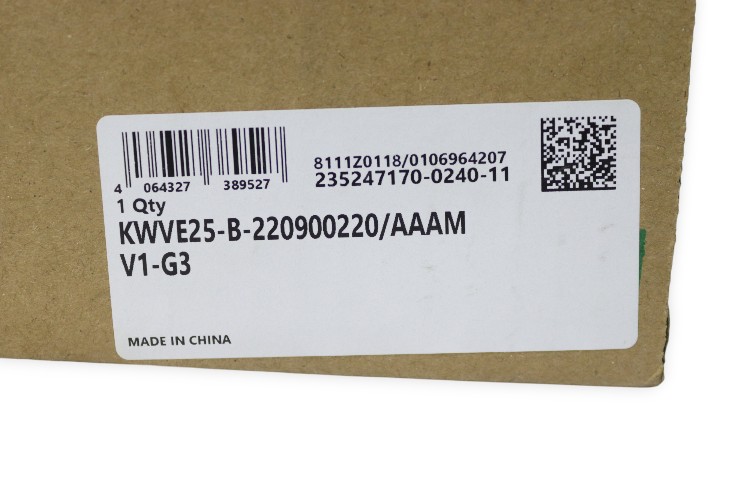

Model: KWVE25-B-220900220/AAAM V1-G3

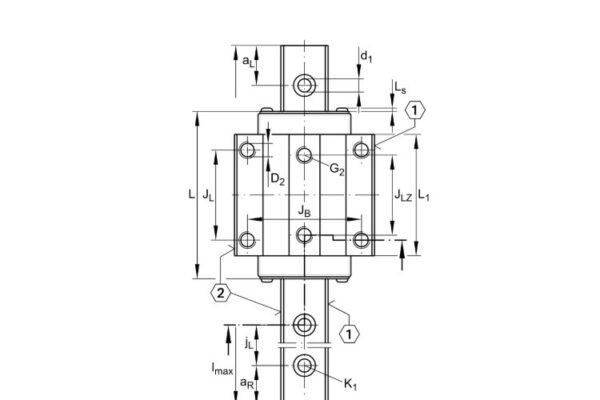

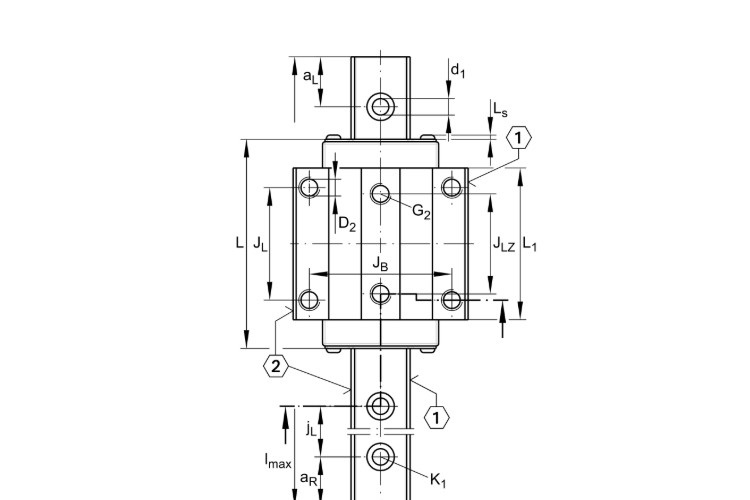

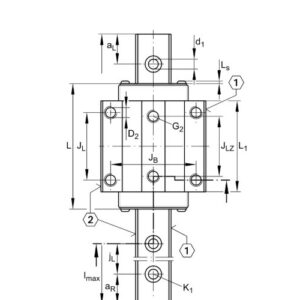

Technical Information
- Rail: TKVD 25
- Size Code: 25
- Height of System: 36 mm
- Height of Block: 30.9 mm
- Width: 70 mm
- Length: 83.3 mm
- JL: 45 mm
- JB: 57 mm
- Maximum Length: 900 mm
- Spacing to Hole on the Left: 220 mm
- Spacing to Hole on the Right: 220 mm
- Dynamic Load Rating: 17900 N
- Static Load Rating: 37000 N
- Static Moment Rating about X Axis: 510 Nm
- Static Moment Rating about Y Axis: 395 Nm
- Static Moment Rating about Z Axis: 395 Nm
- Preload: V1
- Accuracy: G3
- Letter Code: AAAM
Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing
