Manufacturer: INA
Type: LINEAR RECIRCULATING BALL BEARING
Model: KWVE25-H-G3-V1

Size: 25 mm

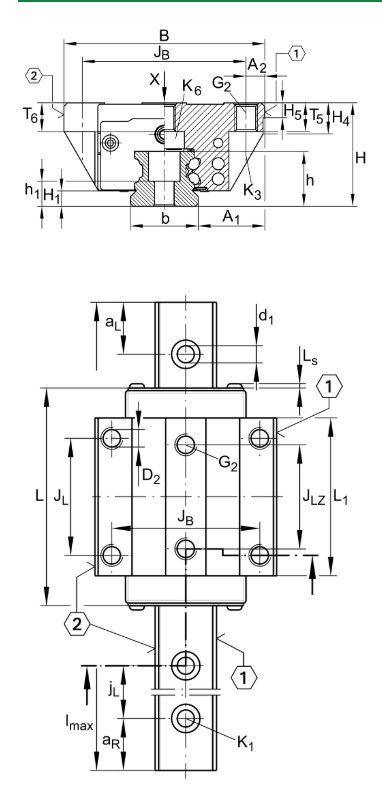

Dimensions
Height system H: 36 mm
Overall length carriage L: 83.3 mm
Width carriage B: 70 mm
Block height H-H1: 30.9 mm
JB: 57 mm
JL: 45 mm
Basic Load Ratings:
Dynamic C: 17,900 N
Static C₀: 37,000 N
Static Moment Rating About:
X axis M_0x: 510 Nm
Y axis M_0Y: 395 Nm
Z axis M_0Z: 395 Nm
Thread depth T5: 10 mm
Accuracy Class: G3
Carriage Preload: V1
Carriage Configuration: H, Narrow, Mounting from the top – Standard
