Manufacturer: Schaeffler INA

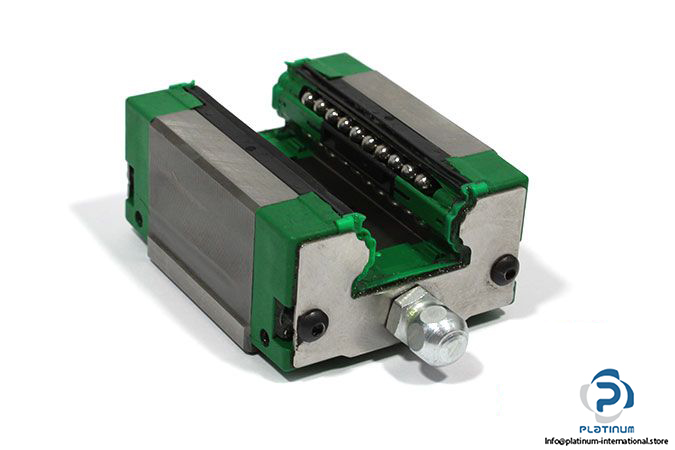

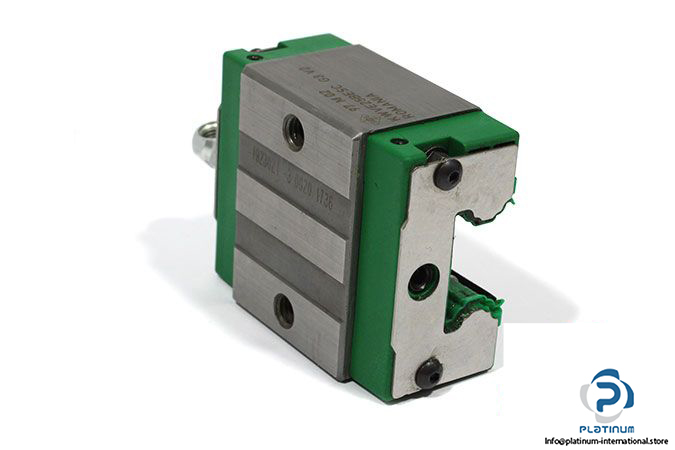

Type: Four-row Linear recirculating Ball Bearing

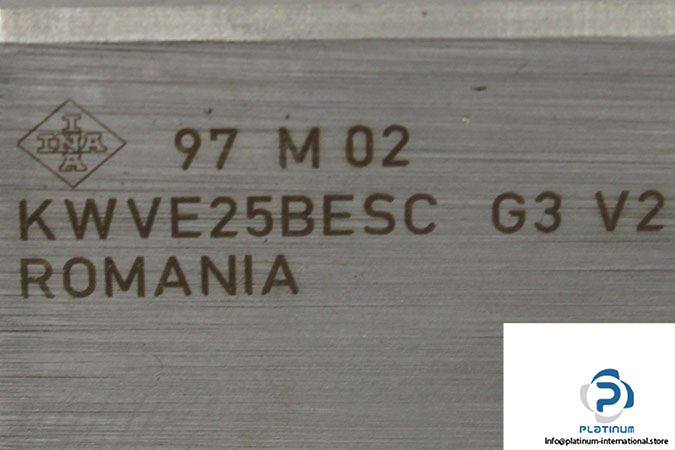

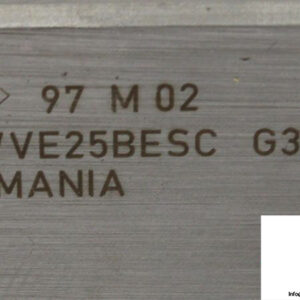

Model: KWVE 25-B-ESC

Size: 25

Carriage Design: Expanded design, short, narrow carriage

Basic Load Ratings:

Dynamic C: 12500 N

Static C₀: 22200 N

Static Moment Rating About:

X axis M_0x: 305 Nm

Y axis M_0Y: 155 Nm

Z axis M_0Z: 155 Nm

Preload: V2

Accuracy Class: G3

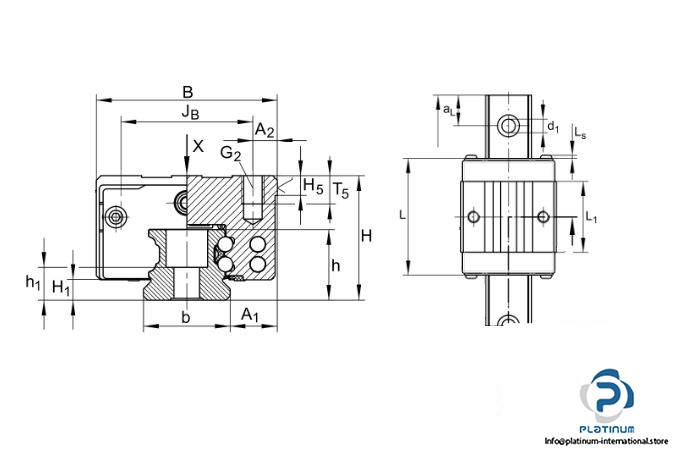

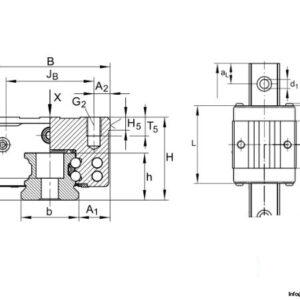

Dimensions

Total Height H: 33 mm

Width carriage B: 48 mm

Overall length carriage L: 58.2 mm

J_B: 35 mm

Weight: 0.31 kg
