Manufacturer: Schaeffler INA

Type: Four-row Linear recirculating Ball Bearing

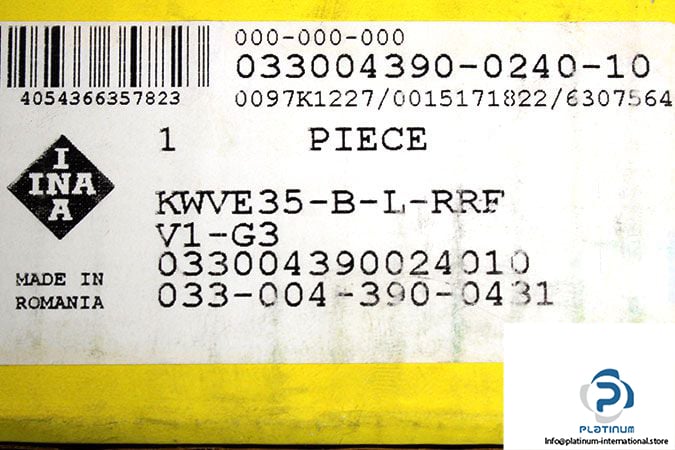

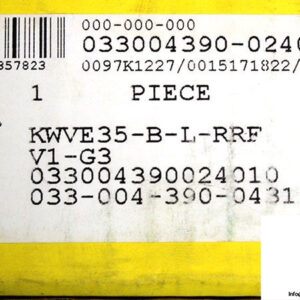

Model: KWVE35-B-L-RRF-V1-G3

Size: 35 mm

Carriage Design: long carriage with Anti-corrosion protection

Basic Load Ratings:

Dynamic C: 47500 N

Static C₀: 100000 N

Static Moment Rating About:

X axis M_0x: 2625 Nm

Y axis M_0Y: 1890 Nm

Z axis M_0Z: 1890 Nm

Preload: V1

Accuracy Class: G3

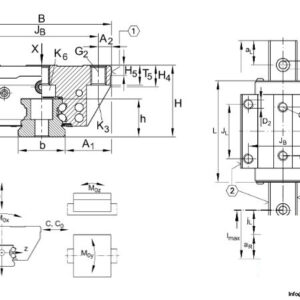

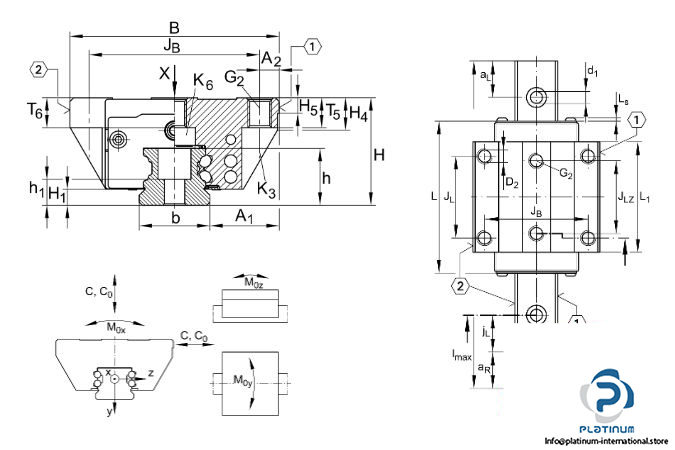

Dimensions

Total Height H: 48 mm

Width carriage B: 100 mm

Overall length carriage L: 145 mm

J_L: 62 mm

J_B: 82 mm

Weight: 2.83 kg
