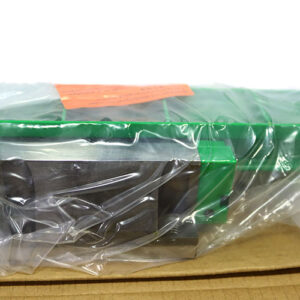

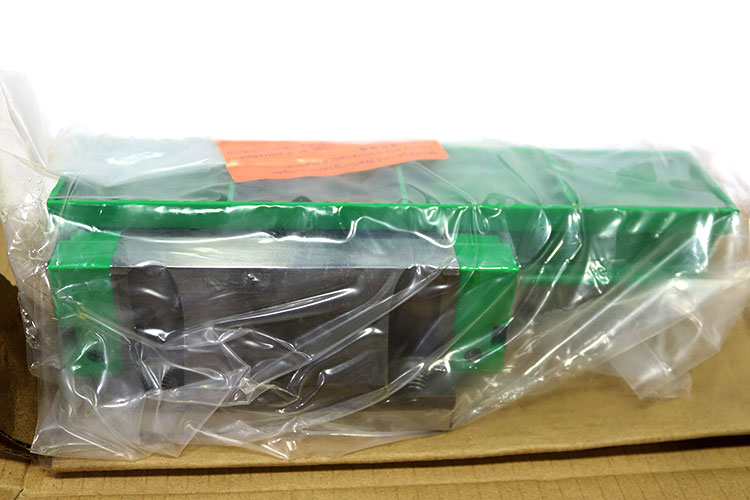

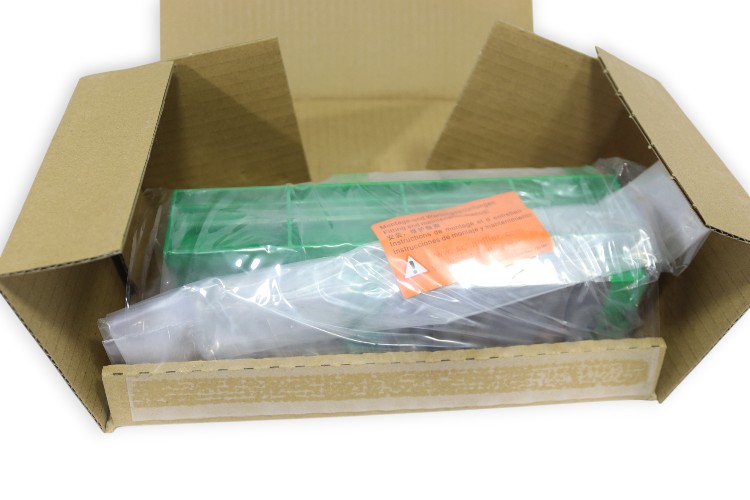

INA KWVE45-B-220900220/AAAU V1-G3 RECIRCULATING BALL BEARING CARRIAGE
The INA KWVE45-B-220900220/AAAU V1-G3 is a high-quality recirculating ball bearing carriage designed for smooth and precise linear guidance. Built with preload V1 and accuracy class G3, this carriage ensures excellent performance in demanding industrial applications.
Manufacturer: INA
Type: Recirculating Ball Bearing Carriage
Model: KWVE45-B-220900220/AAAU V1-G3

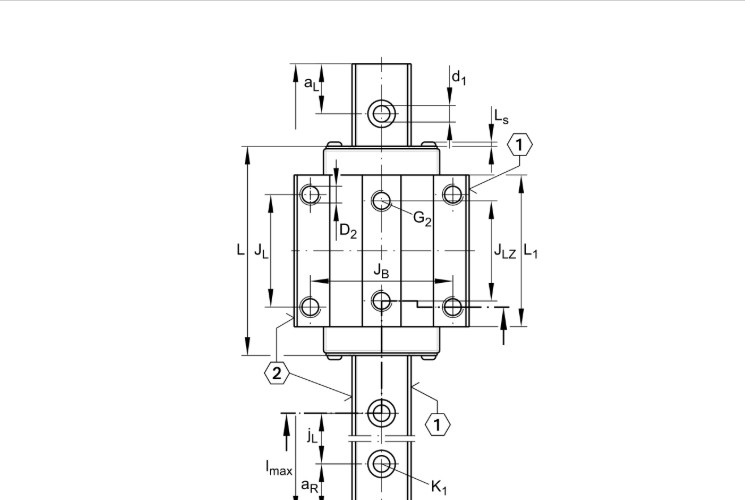

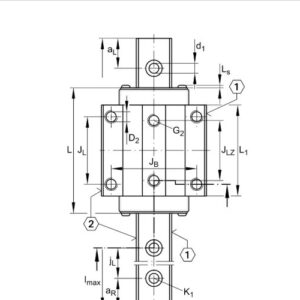

Technical Information
- Rail: TKVD 45
- Size Code: 45
- Height of System: 60 mm
- Height of Block: 50.3 mm
- Width: 120 mm
- Length: 140.6 mm
- JL: 80 mm
- JB: 100 mm
- Maximum Length: 900 mm
- Spacing to Hole on the Left: 220 mm
- Spacing to Hole on the Right: 220 mm
- Dynamic Load Rating: 69000 N
- Static Load Rating: 141000 N
- Static Moment Rating about X Axis: 3610 Nm
- Static Moment Rating about Y Axis: 2485 Nm
- Static Moment Rating about Z Axis: 2485 Nm
- Preload: V1
- Accuracy: G3
- Letter Code: AAAU
Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing
