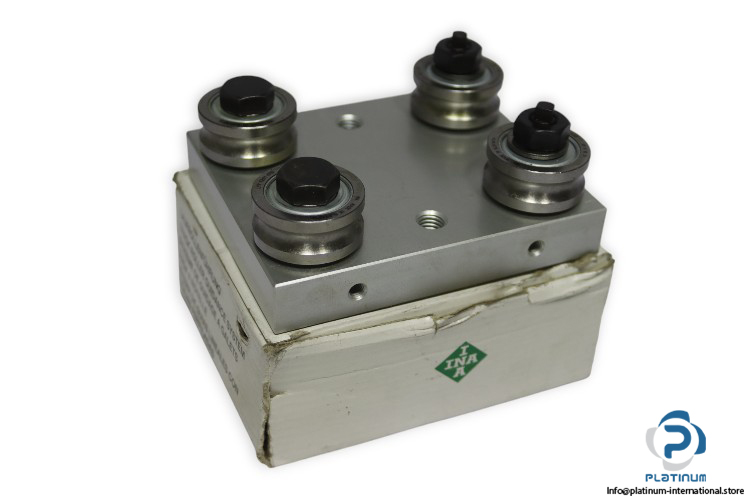

Manufacturer: INA
Type: TRACK ROLLER GUIDANCE
Model:  LFL52(100-120)

Size: 52 mm

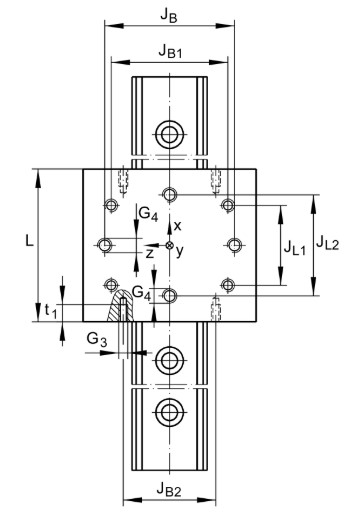

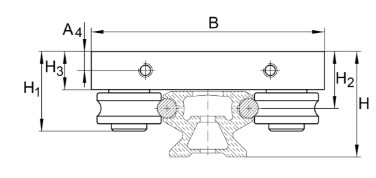

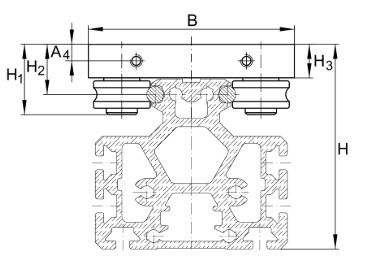

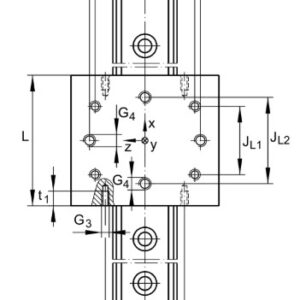

Dimensions
Total Height H: 54,3 mm
Carriage Height H1: 43.2 mm
Carriage Width B: 120 Mm
Carriage Length L: 100 Mm
JB: 59 mm
JL1: 60 mm
JL2: 70 mm
Block Type: open carriage, standard design
Mounting Hole: 4 tapped holes
Tightening torque: 40 Nm
Basic dynamic load rating in y-direction: 10000 N
Basic static load rating in y-direction: 5200 N
Basic dynamic load rating in z-direction: 16800 N
Basic static load rating in z-direction: 10000 N
static moment about X-axis M0x: 110 Nm
Static moment about Y-axis M0y: 290 Nm
Static moment about Z-axis M0z: 150 Nm
