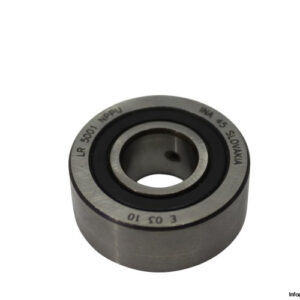

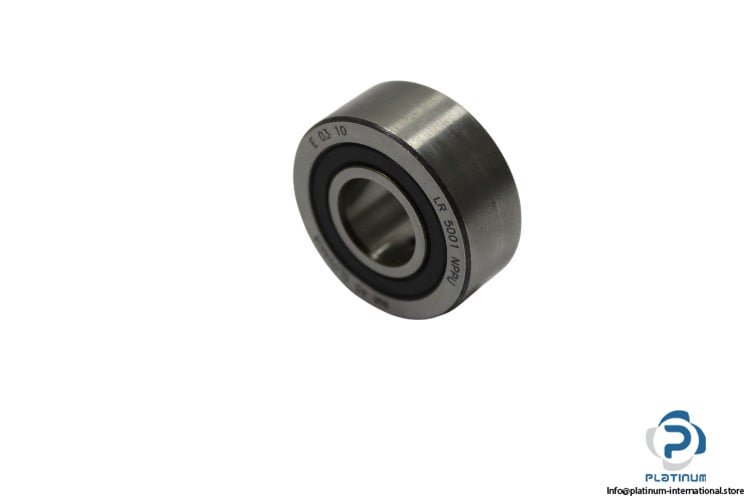

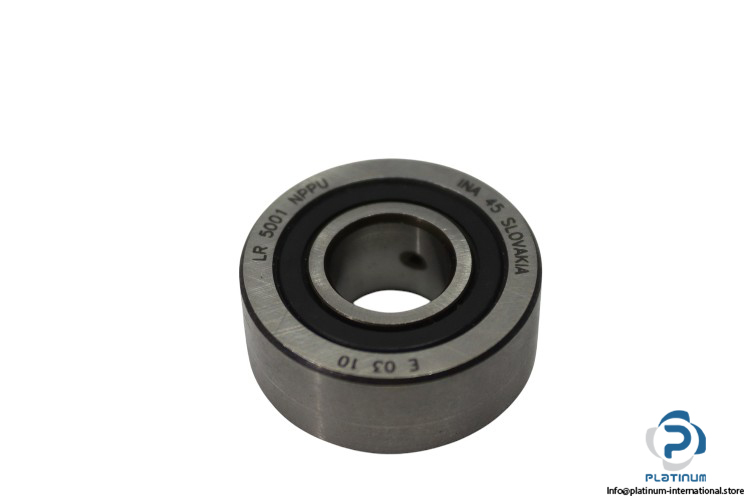

INA Schaeffler Track Roller LR 5001 NPPU

The INA Schaeffler LR 5001 NPPU Track Roller is designed for high-performance applications requiring smooth and efficient motion, featuring a crowned outside surface and high dynamic load ratings for industrial use.

Manufacturer: INA Schaeffler

Model: LR 5001 NPPU

Type: Track Roller

Replaces: LR5001-2RS

Technical Information:

• Design: U, Crowned Outside Surface
• Bore Diameter (d): 12 mm
• Outer Diameter (D): 30 mm
• Height (C): 12 mm
• Dynamic Load Rating (Cr): 5,100 N
• Static Load Rating (C0r): 3,200 N
• Fatigue Load Limit (Cur w): 166 N
• Speed on Permanent Grease Lubrication: 8,500 1/min
• Permissible Dynamic Load Outer Ring, Radial: 3,200 N
• Sealing: NPP, Two Seals (Non-Preloaded)
