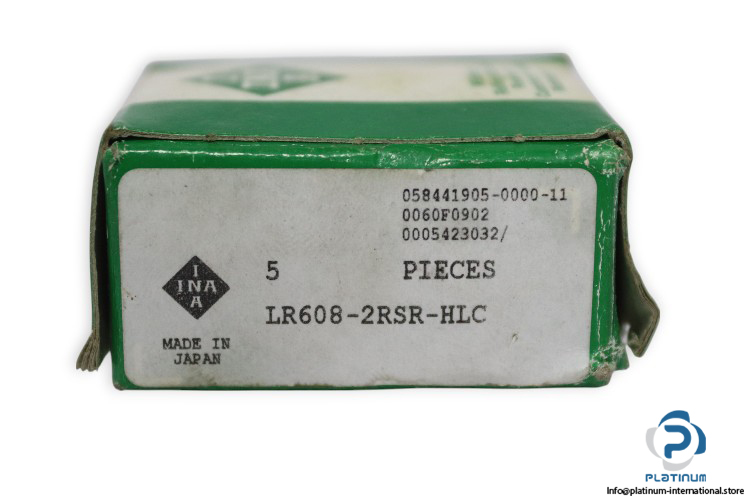

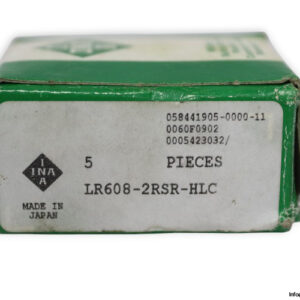

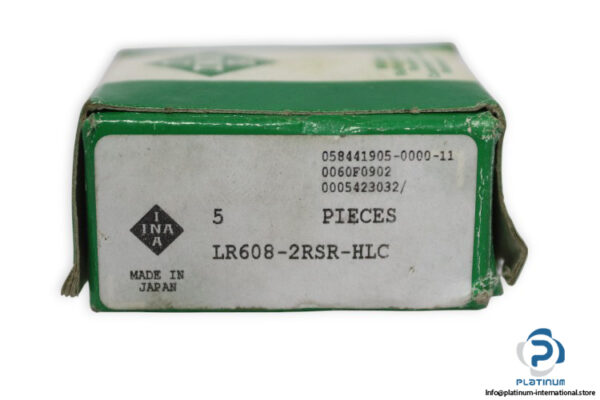

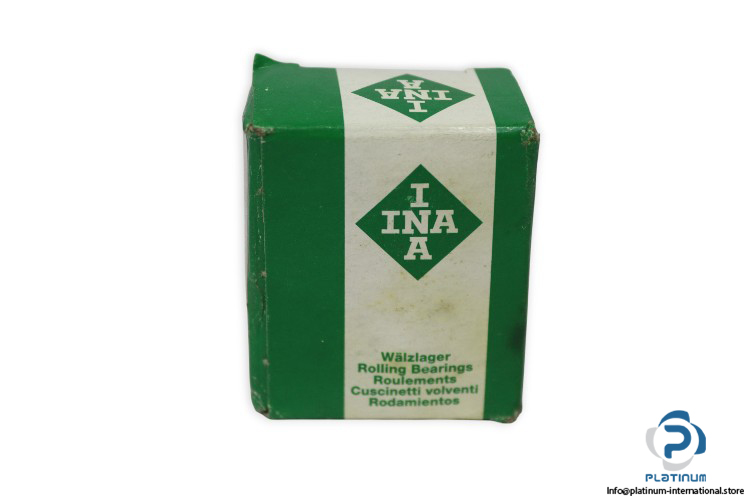

INA SCHAEFFLER LR608-2RSR-HLC YOKE TYPE TRACK ROLLER
The INA Schaeffler LR608-2RSR-HLC is a precision-engineered yoke type track roller designed for reliable performance in demanding applications. Built with lip seals on both sides and optimized for high-speed operation, it provides long-lasting durability and smooth performance.
Manufacturer: INA Schaeffler
Type: Yoke Type Track Roller
Model: LR608-2RSR-HLC
Technical Information
- Bore Diameter (d): 8 mm
- Outer Diameter (D): 24 mm
- Height of the Bearing (B): 7 mm
- Basic Dynamic Load Rating, Radial: 2,950 N
- Basic Static Load Rating, Radial: 1,280 N
- Fatigue Load Limit, Radial: 64 N
- Speed on Permanent Grease Lubrication: 19,000 1/min
- Sealing: 2RSR (Lip seal on both sides with radial sealing action)
- Item per Set: 5
