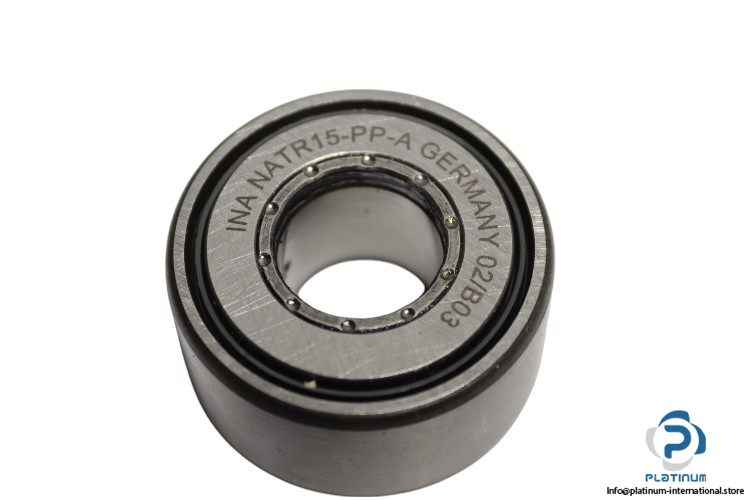

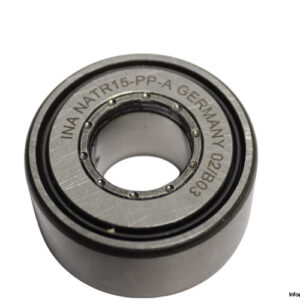

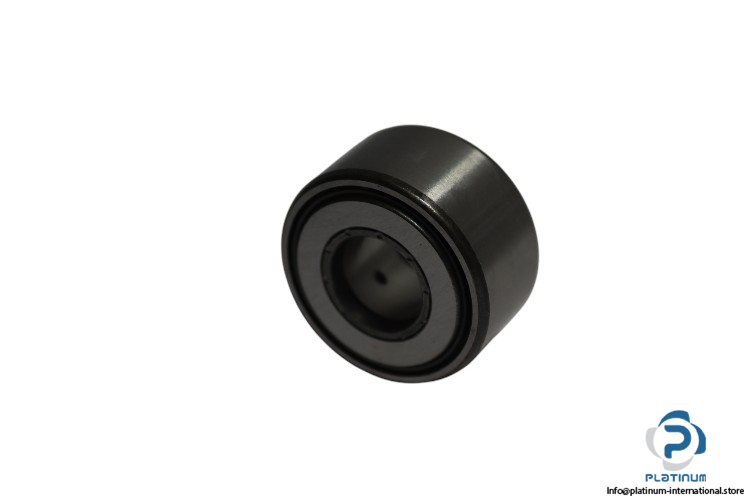

INA NATR15-PP-A Yoke Type Track Roller
The INA NATR15-PP-A is a robust yoke type track roller engineered for applications requiring efficient motion transfer and high radial load capacity. It features a three-stage PP sealing system for effective protection and extended service life, making it ideal for continuous operation under harsh conditions.
Manufacturer: INA
Type: Yoke Type Track Roller
Model: NATR15-PP-A
Technical Information:
- Functional Outside Diameter: 35 mm
- Bore Diameter (d2): 15 mm
- Width Inner Ring: 19 mm
- Width Outer Ring: 18 mm
- Outside Diameter of Thrust Washer: 27.6 mm
- Basic Dynamic Load Rating: 9,700 N
- Basic Static Load Rating: 14,500 N
- Fatigue Load Limit: 1,860 N
- Permissible Static Load, Radial: 14,500 N
- Permissible Dynamic Load, Outer Ring, Radial: 14,500 N
- Speed with Permanent Grease Lubrication: 3,600 r/min
- Sealing Type: PP, Three-stage sealing by plastic axial plain washer on both sides
