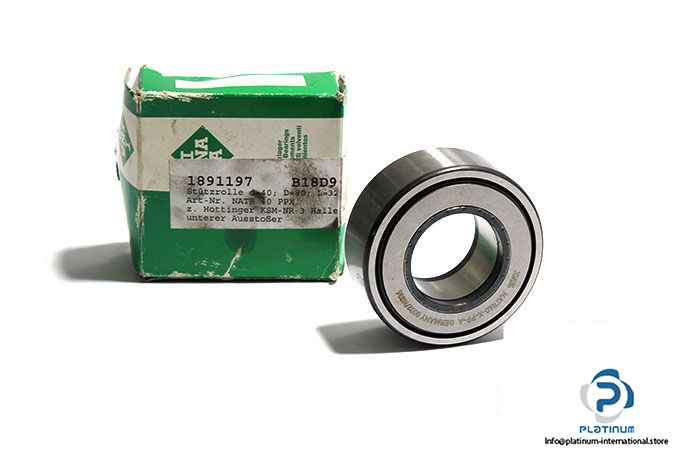

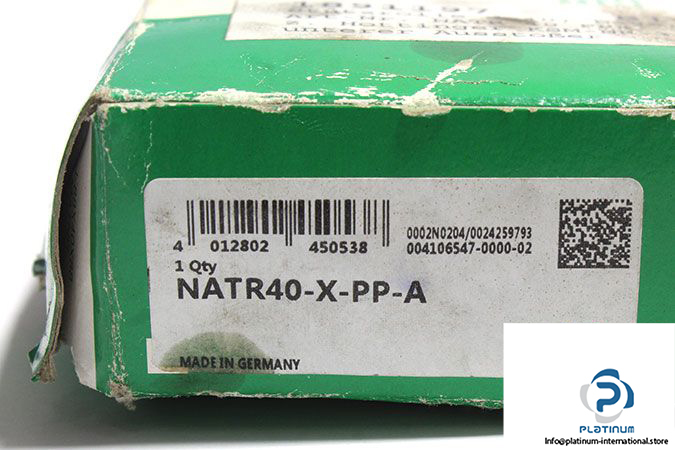

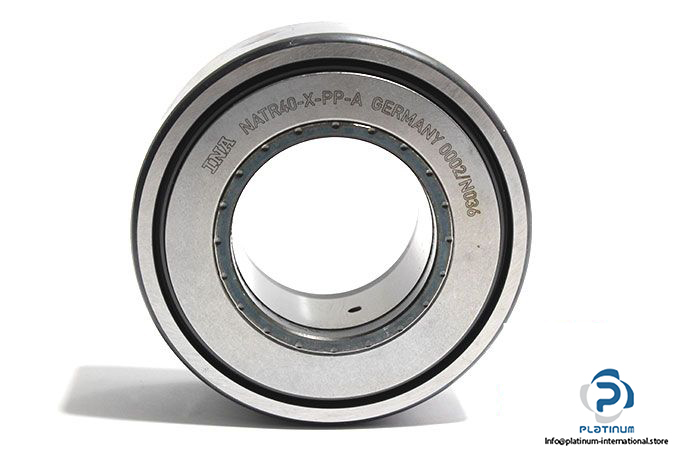

Schaeffler INA NATR 40-X-PP-A Yoke Type Track Roller
The Schaeffler INA NATR 40-X-PP-A Yoke Type Track Roller is designed to handle high radial loads with high precision. With its durable construction and three-stage sealing, this track roller ensures reliable performance in demanding applications.
Manufacturer: Schaeffler INA
Type: Yoke Type Track Roller
Model: NATR 40-X-PP-A
Technical Information:
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 80 mm
- Width, Inner Ring (B): 32 mm
- Dynamic Load Rating (Cr): 32,500 N
- Static Load Rating (C0r): 59,000 N
- Fatigue Load Limit, Radial: 8,400 N
- Speed on Permanent Grease Lubrication: 850 rpm
- Permissible Static Load, Radial: 59,000 N
- Permissible Dynamic Load Outer Ring, Radial: 59,000 N
- Sealing: PP, Three-Stage Sealing by Plastic Axial Plain Washer on Both Sides
