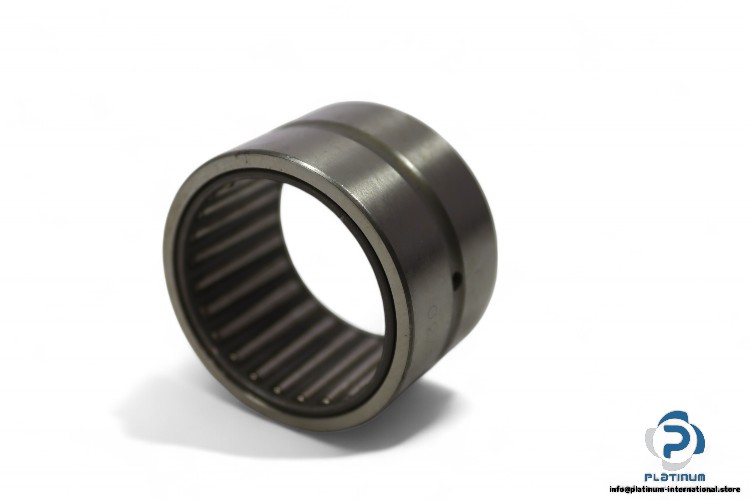

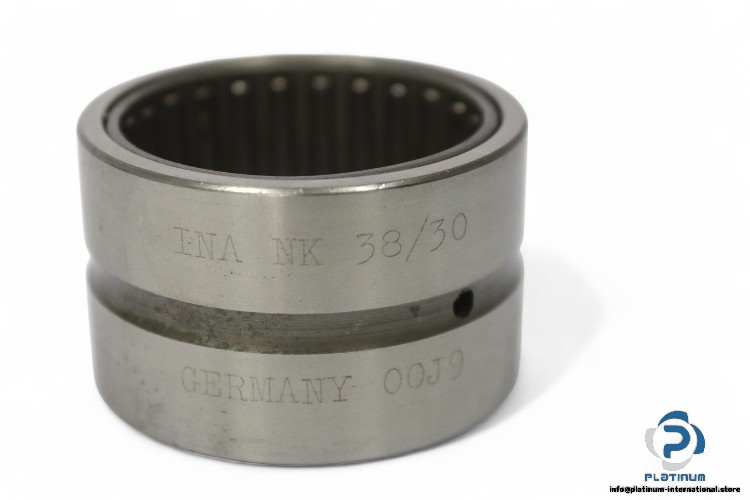

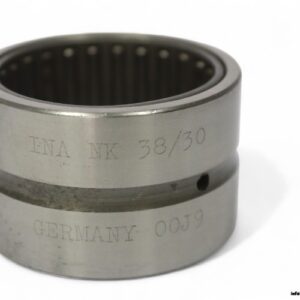

INA NK 38/30 Needle Roller Bearing
The INA NK 38/30 Needle Roller Bearing is designed for high load capacity and compact applications, ensuring efficient performance in industrial machinery. With a durable construction and high-speed capability, this bearing provides reliable operation under demanding conditions.
- Manufacturer: INA
- Type: Needle Roller Bearing
- Model: NK 38/30
Technical Information
- Bore Diameter (d): 38 mm
- Outer Diameter (D): 48 mm
- Width (B): 30 mm
- Basic Dynamic Load Rating (Cr): 43,000 N
- Basic Static Load Rating (C0r): 76,000 N
- Limiting Speed: 12,000 1/min
- Fatigue Load Limit: 14,300 N
- Reference Speed: 7,000 1/min
