Manufacturer: Schaeffler INA
Type: Needle roller / angular contact ball bearing
Model: NKIB5906

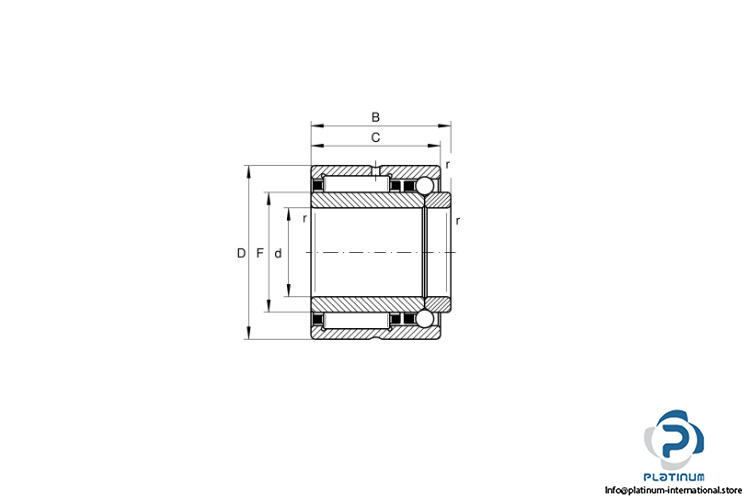

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 47 mm
Width B: 25 mm
Basic load ratings:
Dynamic Cr: 28500 N
Static C0r: 35500 N
Basic dynamic load rating, axial: 5900 N
Basic static load rating, axial: 11200 N
Fatigue load limit, radial: 6600 N
Fatigue load limit, axial: 510 N
Reference speed: 10000 rpm
Limiting speed: 12700 rpm
Operating temperature: -30 … +120 °C
