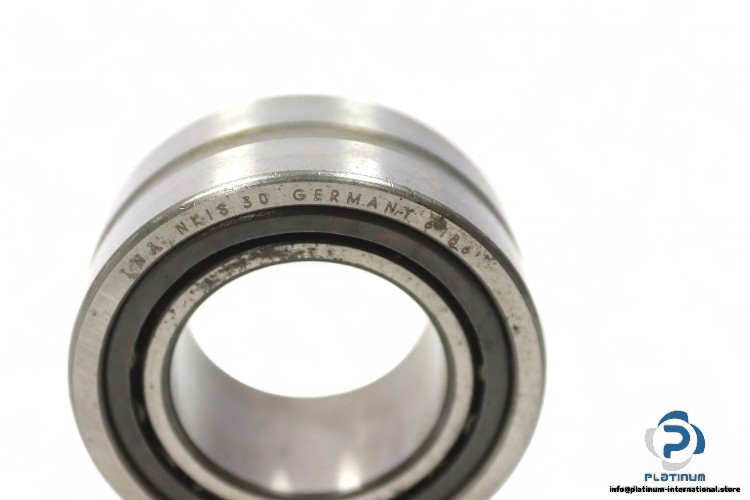

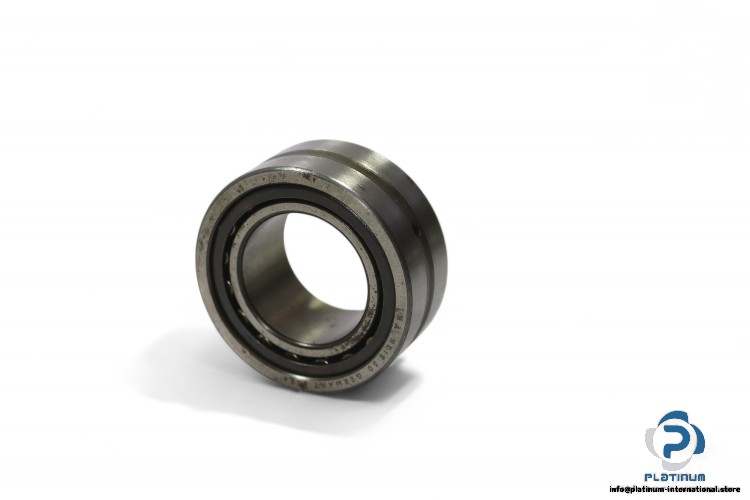

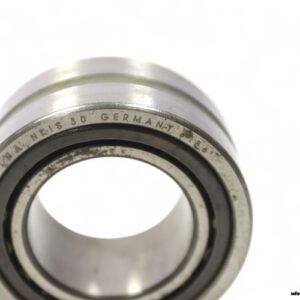

INA NKIS 30 Needle Roller Bearing
The INA NKIS 30 Needle Roller Bearing is a high-precision bearing designed for applications requiring high load capacity and compact design. With a bore diameter of 30 mm and an outer diameter of 52 mm, this bearing ensures durability, efficiency, and smooth operation in industrial machinery.
- Manufacturer: INA
- Type: Needle Roller Bearing
- Model: NKIS 30
Technical Information
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 52 mm
- Width (B): 22 mm
- Basic Dynamic Load Rating (Cr): 36,500 N
- Basic Static Load Rating (C0r): 50,000 N
- Limiting Speed: 11,700 1/min
- Fatigue Load Limit: 7,000 N
- Reference Speed: 6,400 1/min
