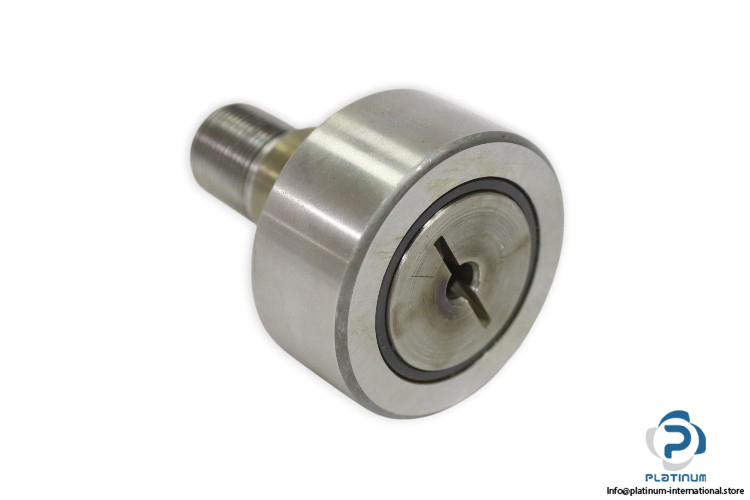

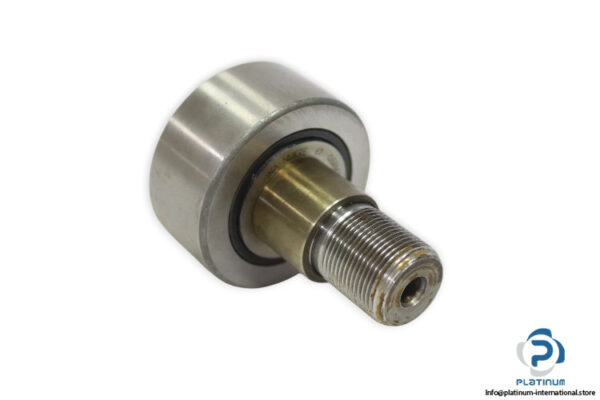

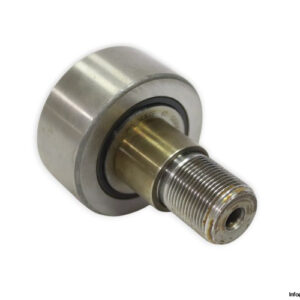

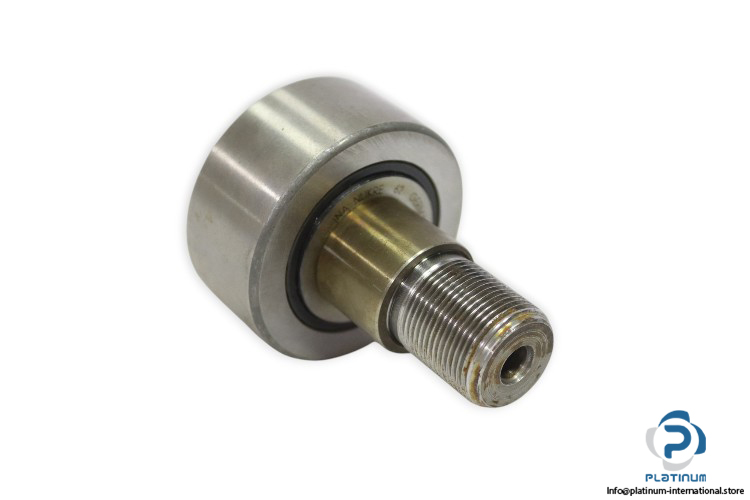

INA / Schaeffler NUKRE62 Stud Type Track Roller
The INA / Schaeffler NUKRE62 is a precision-engineered stud type track roller designed to handle high radial loads and deliver reliable performance in demanding motion systems.
Manufacturer: INA / Schaeffler
Type: Stud Type Track Roller
Model: NUKRE62

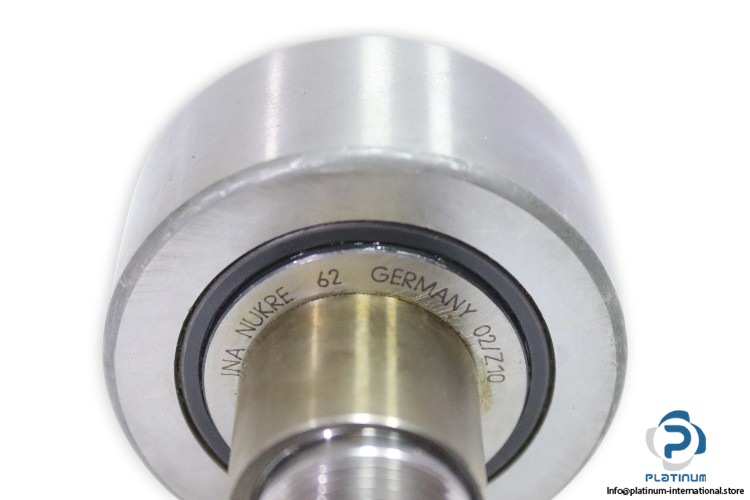

Code: 02/Z10
Technical Information
- Bore Diameter (d): 24 mm
- Outer Diameter (D): 62 mm
- Bearing Width (B): 80 mm
- Basic Dynamic Load Rating, Radial: 41,000 N
- Basic Static Load Rating, Radial: 54,000 N
- Fatigue Load Limit, Radial: 7,400 N
- Speed on Permanent Grease Lubrication: 2,600 1/min
- Permissible Static Load, Radial: 46,000 N
- Permissible Dynamic Load Outer Ring, Radial: 23,300 N
