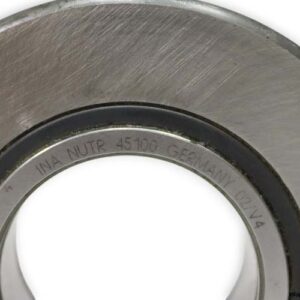

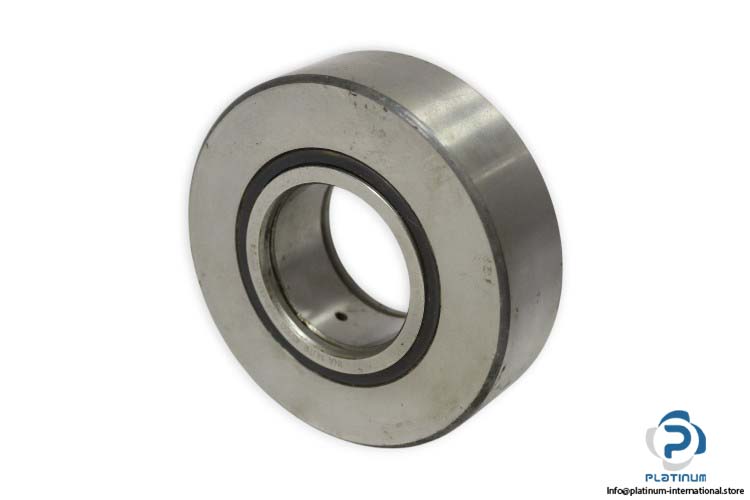

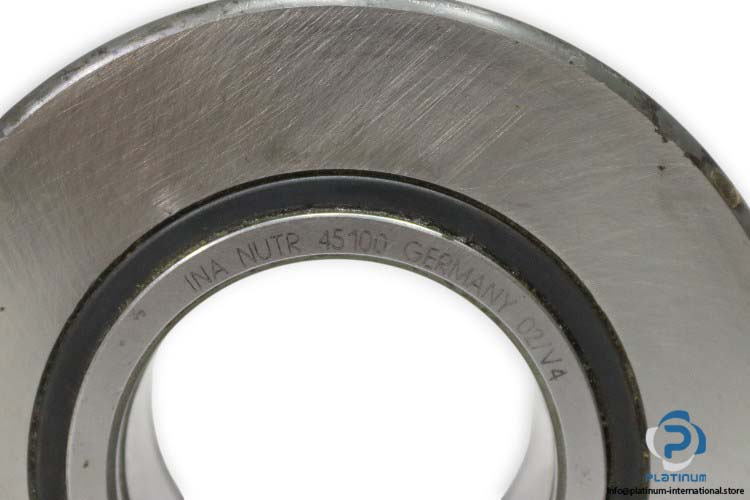

INA NUTR 45100 YOKE TYPE TRACK ROLLER
The INA NUTR 45100 Yoke Type Track Roller is designed for high-load applications requiring precise motion and durability. Featuring labyrinth seals on both sides and robust construction, it ensures reliable operation in demanding environments.
Manufacturer: INA
Type: Yoke Type Track Roller
Model: NUTR 45100
Technical Information
- Bore Diameter (d): 45 mm
- Outer Diameter (D): 100 mm
- Width (B): 32 mm
- Basic Dynamic Load Rating, Radial: 73,000 N
- Basic Static Load Rating, Radial: 114,000 N
- Fatigue Load Limit, Radial: 16,100 N
- Speed on Permanent Grease Lubrication: 1,400 rpm
- Permissible Static Load, Radial: 114,000 N
- Permissible Dynamic Load Outer Ring, Radial: 105,000 N
- Sealing: Labyrinth seals on both sides
