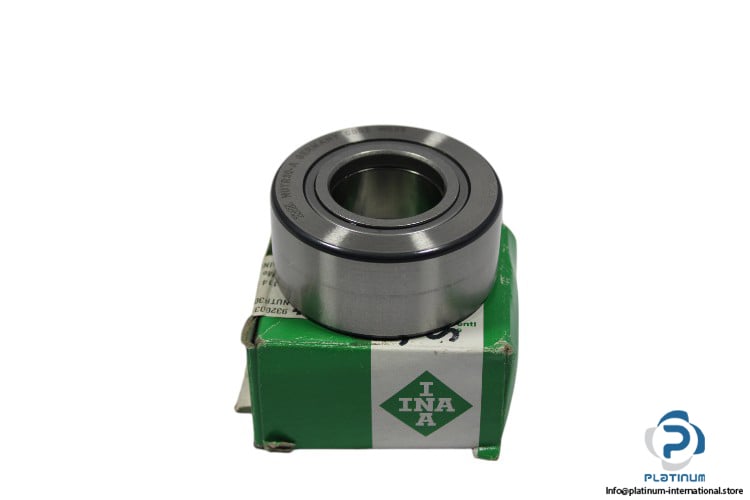

INA NUTR30-A Yoke Type Track Roller

The INA NUTR30-A Yoke Type Track Roller is designed for high-load applications, offering excellent radial support and durability. Engineered with precision, it ensures reliable performance in track guidance systems and heavy-duty industrial applications.

• Manufacturer: INA
• Type: Yoke Type Track Roller
• Model: NUTR30-A

Technical Information

• Bore Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Bearing Width (B): 29 mm
• Load Ratings:
• Basic Dynamic Load Rating, Radial: 41,000 N
• Basic Static Load Rating, Radial: 54,000 N
• Fatigue Load Limit, Radial: 7,400 N
• Speed and Load Capacity:
• Speed on Permanent Grease Lubrication: 2,600 1/min
• Permissible Static Load, Radial: 46,000 N
• Permissible Dynamic Load Outer Ring, Radial: 23,300 N
