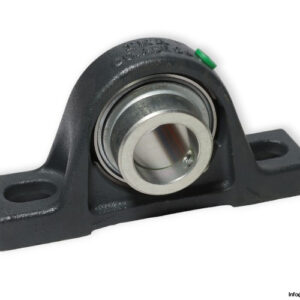

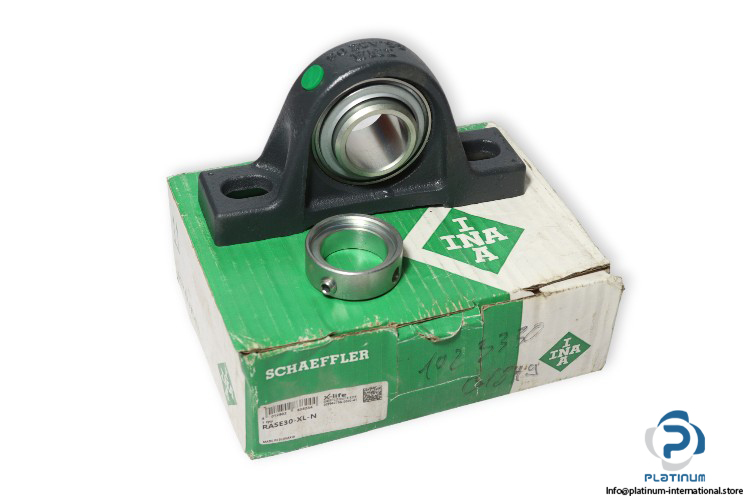

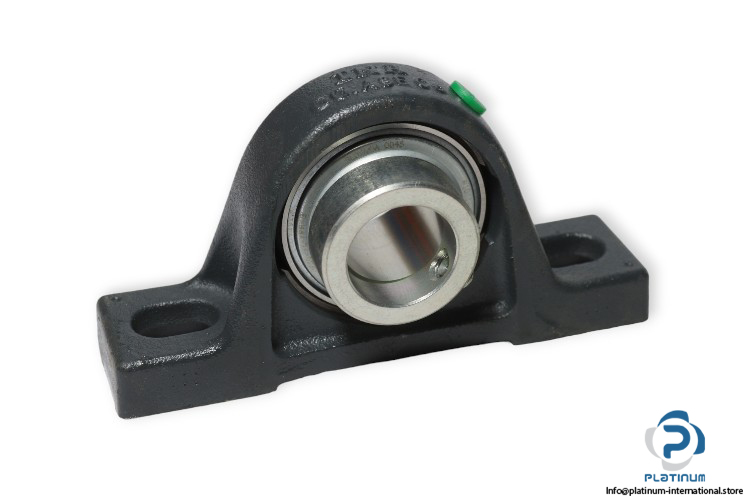

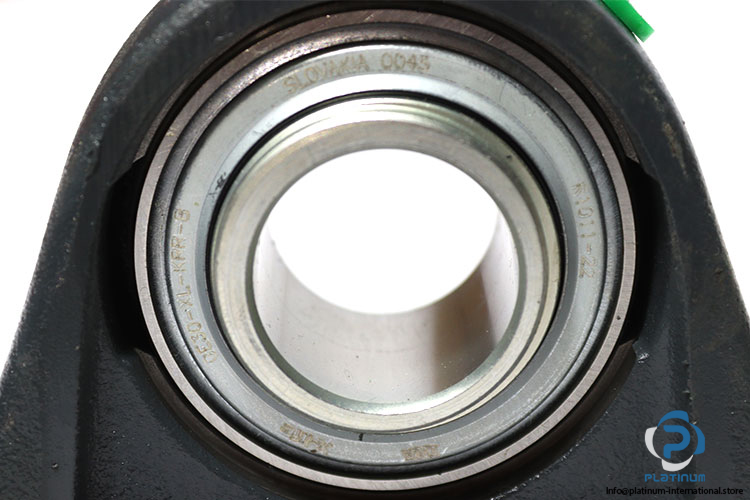

Manufacturer: Schaeffler INA
Type: Plummer block housing unit

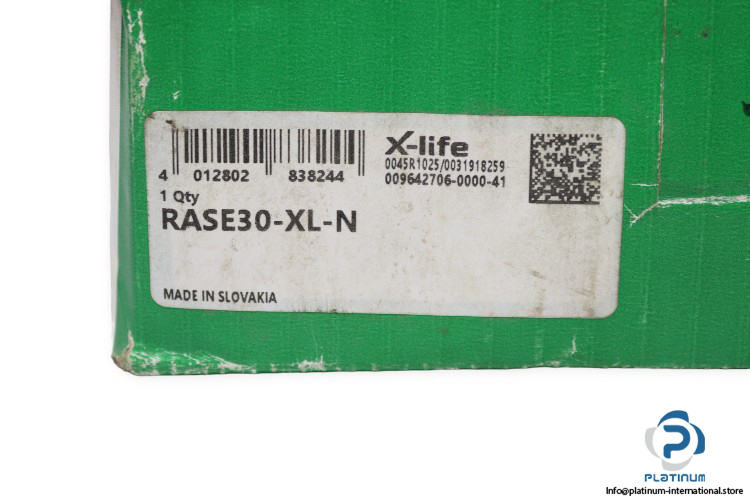

Model: RASE30 XL N

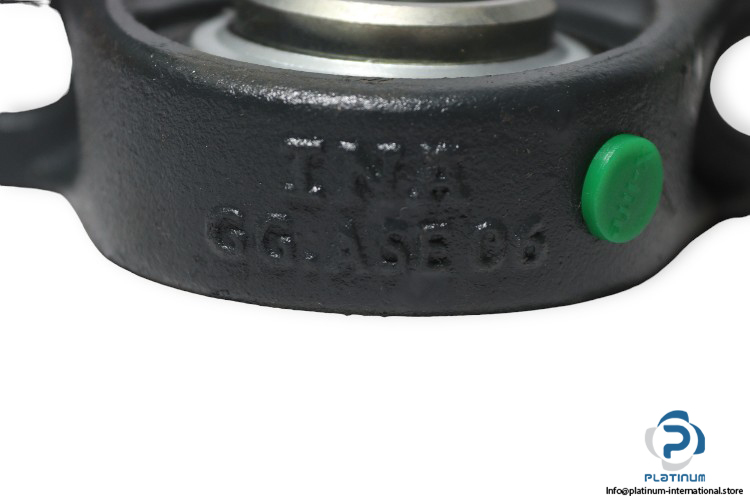

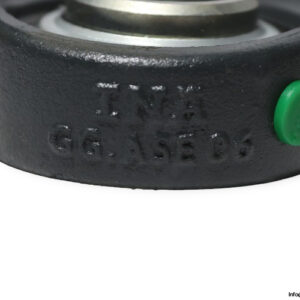

Housing: GG.ASE06

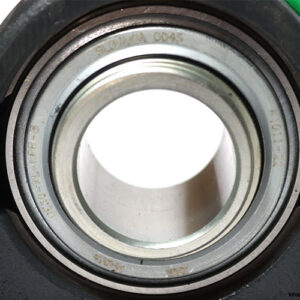

Bearing designation: GE30-XL-KRR-B

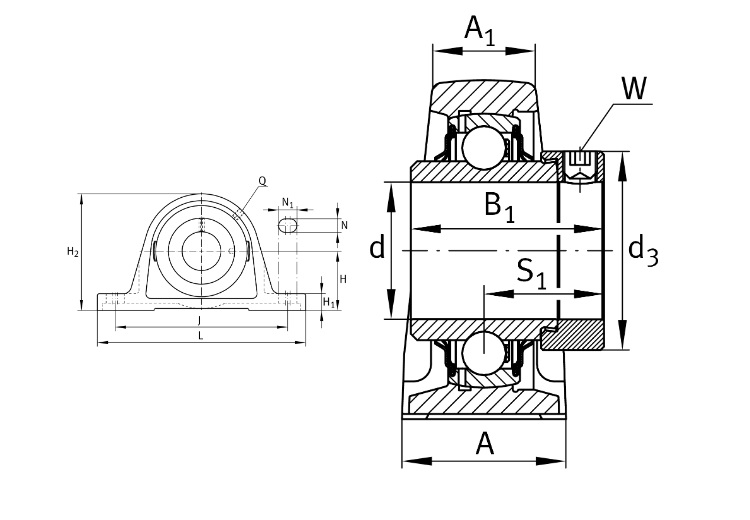

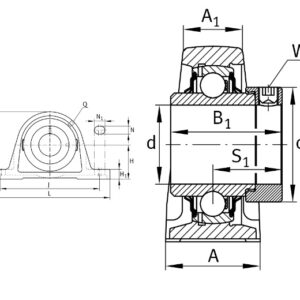

Dimensions
Bore Diameter d: 30 mm
Overall length L: 158 mm
Hight H2: 99 mm
Distance fixing bore J: 117.5 mm
Distance shaft axis H: 42.9 mm
width (Slot) N: 14 mm
Length (slot ) N1: 22 mm
Width (base) A: 40 mm
Locking collar total width B1: 48.5 mm
Connection thread for lubrication: M6
Groove: N, Cast iron housing with undercut slot for end caps
Locking device: eccentric locking collar
Material: GG, Grey cast iron
Protecting cap: KASK06
