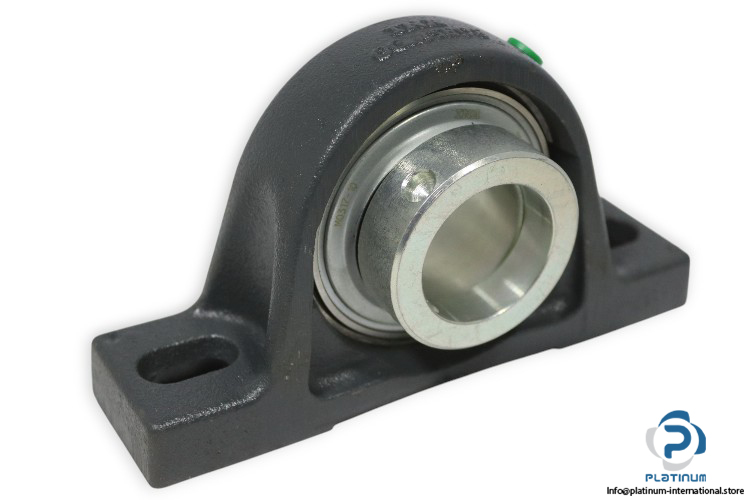

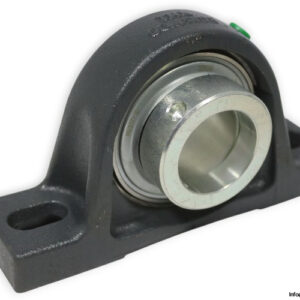

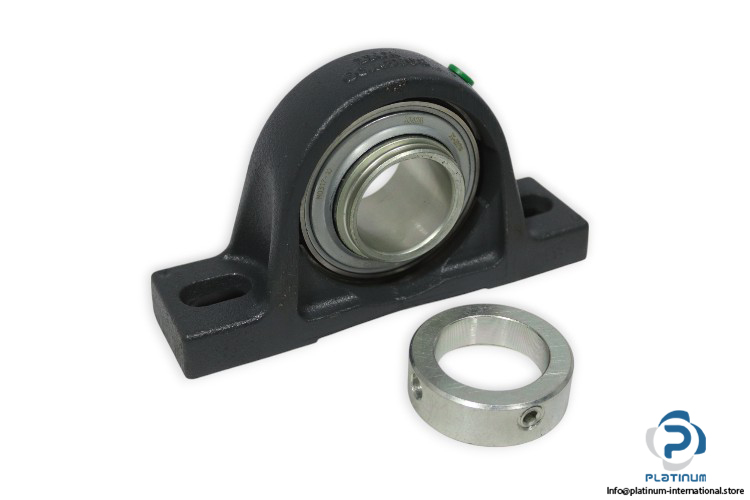

INA RASE40-N Plummer Block Housing Unit
The INA RASE40-N Plummer Block Housing Unit offers a reliable and durable solution for supporting radial loads in various industrial applications. Designed with a cast iron housing and a range of essential features, this unit provides enhanced stability and ease of installation.
Manufacturer: INA
Type: PLUMMER BLOCK HOUSING UNIT
Model: RASE40-N
Technical Information:

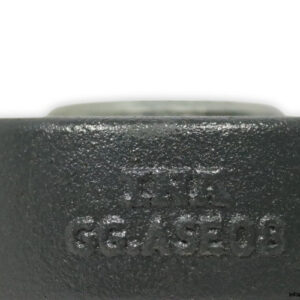

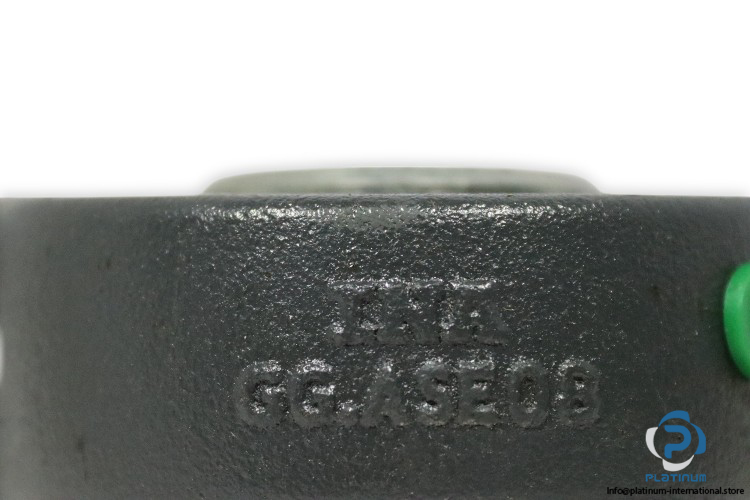

- Housing: GG. ASE08

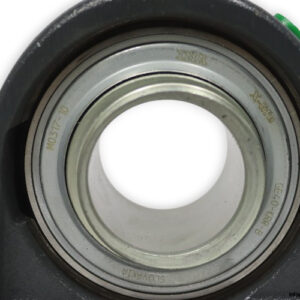

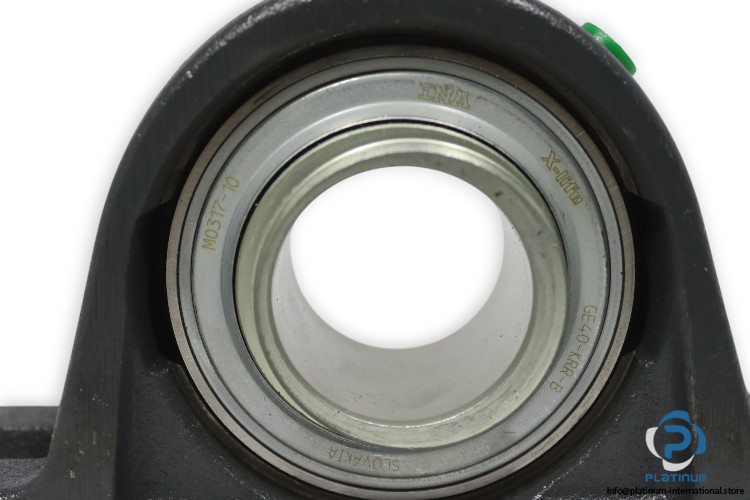

- Bearing Designation: GE40-KRR-B
- Bore Diameter (d): 40 mm
- Overall Length (L): 179 mm
- Height (H2): 99 mm
- Distance Fixing Bore (J): 138.25 mm
- Distance Shaft Axis (H): 49.2 mm
- Width (Slot) (N): 14 mm
- Length (Slot) (N1): 26 mm
- Width (Base) (A): 48 mm
- Locking Collar Total Width: 56.5 mm
- Connection Thread for Lubrication: M6
Housing Features:
- Groove: N, Cast iron housing with undercut slot for end caps
- Material: GG, Grey cast iron
- Protecting Cap: KASK08
This INA plummer block housing unit is designed to support rotating shafts while ensuring ease of maintenance and reliable protection against contaminants, making it an excellent choice for a wide range of machinery applications.
