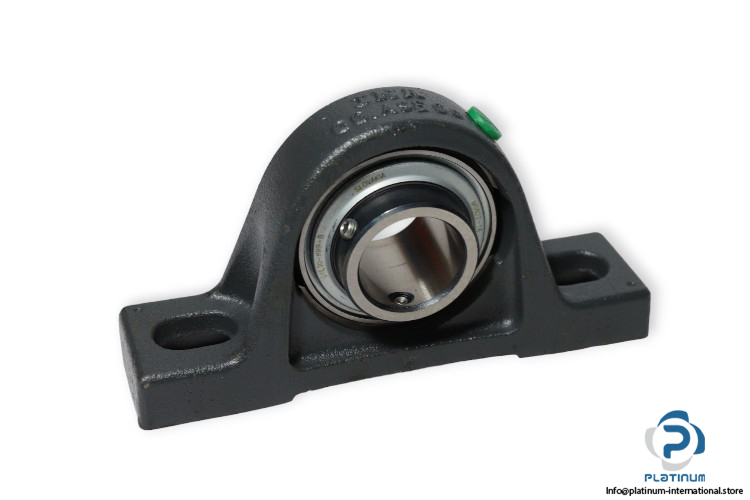

INA RASEY30-N PLUMMER BLOCK HOUSING UNIT

Manufacturer: Schaeffler INA
Type: Plummer block housing unit
Model: RASEY30 N
Replaces: RASEY30-XL-N

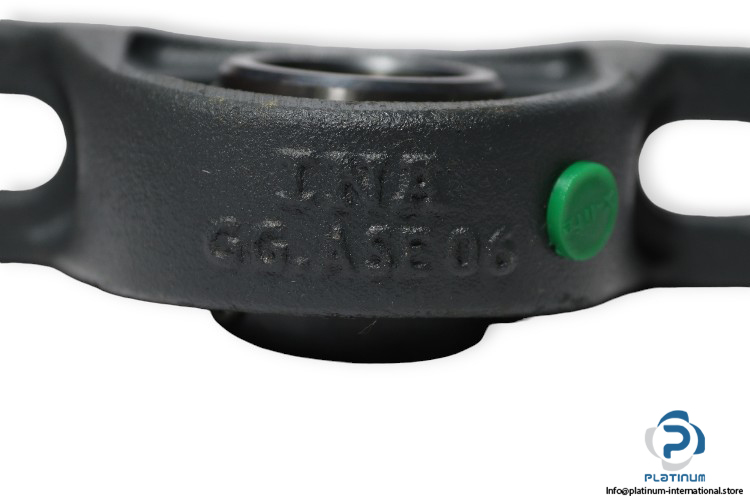

Housing: GG. ASE06

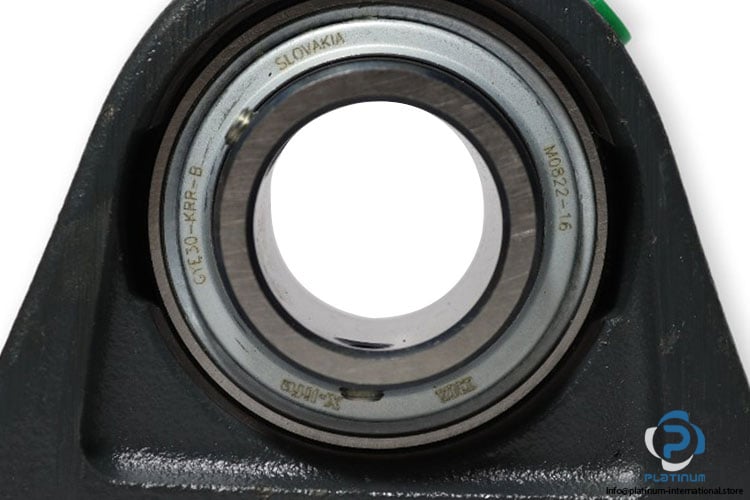

Bearing designation: GYE30-KRR-B

SKU: 1030832 Category: Tags: , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

Manufacturer: Schaeffler INA
Type: Plummer block housing unit
Model: RASEY30 N
Replaces: RASEY30-XL-N
Housing: GG. ASE06
Bearing designation: GYE30-KRR-B

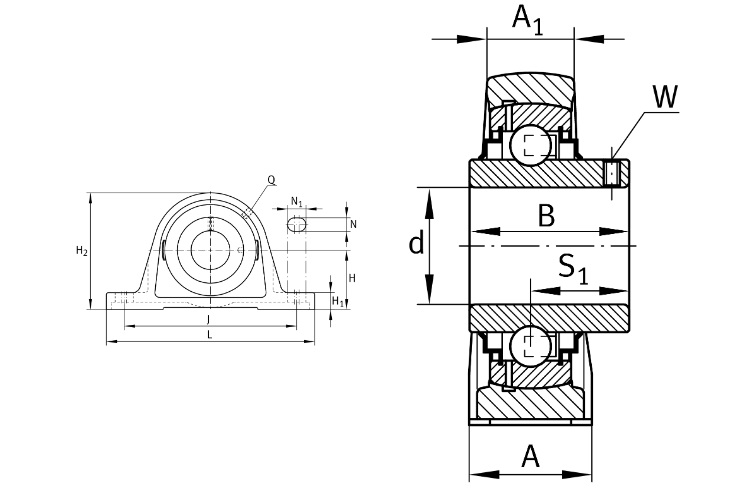

Dimensions
Bore Diameter d: 30 mm
Overall length L: 158 mm
Hight H2: 82 mm
Distance fixing bore J: 117.5 mm
Distance shaft axis H: 42.9 mm
width (Slot) N: 14 mm
Length (slot ) N1: 22 mm
Width (base) A: 40 mm
Connection thread for lubrication: M6
Groove: N, Cast iron housing with undercut slot for end caps
Locking device: eccentric locking collar
Material: GG, Grey cast iron
Protecting cap: KASK06

Weight 1,14 kg
