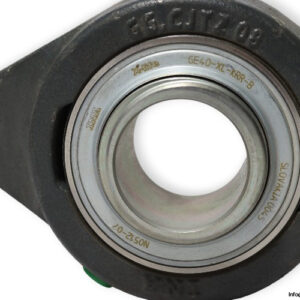

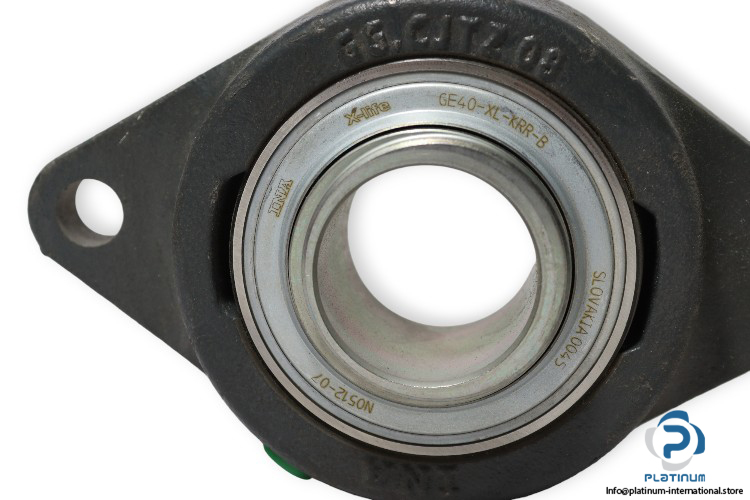

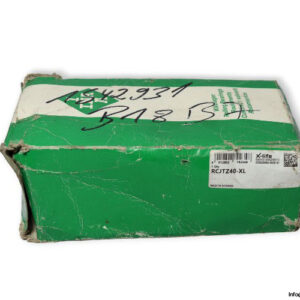

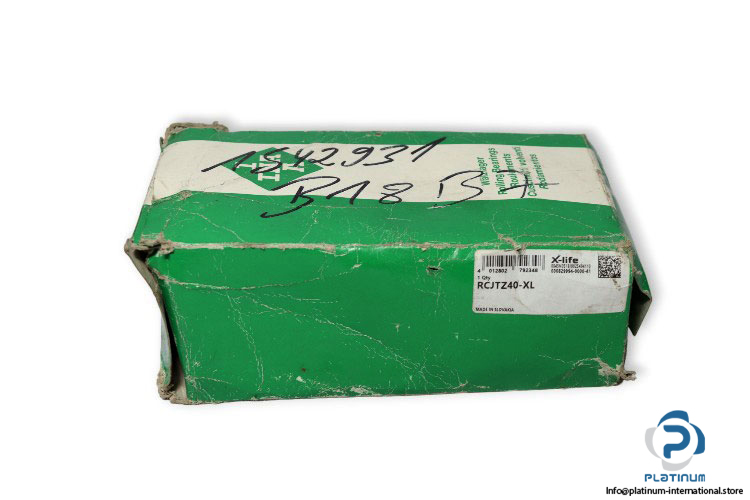

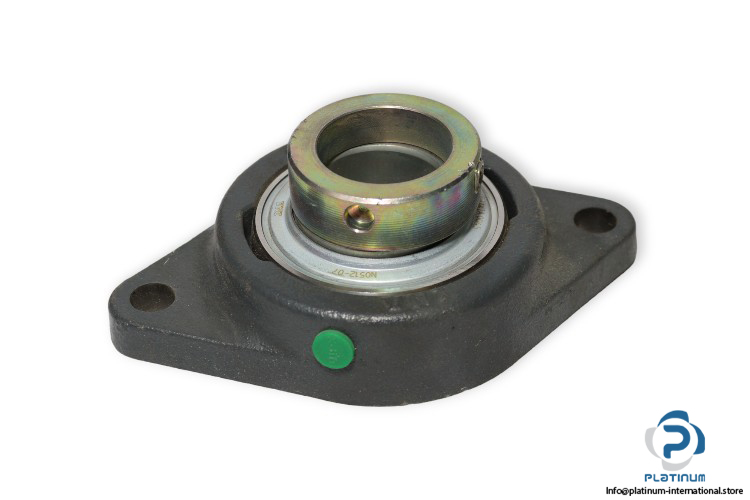

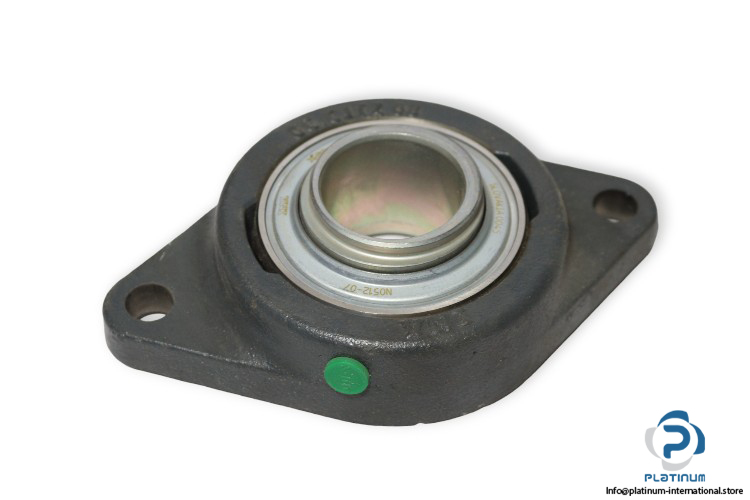

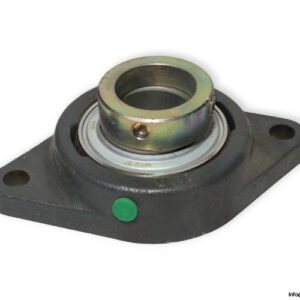

Manufacturer: INA
Type: Flanged Housing Unit
Model: RCJTZ40 XL
Housing: GG. CJTZ08
Bearing designation: GE40-XL-KRR-B

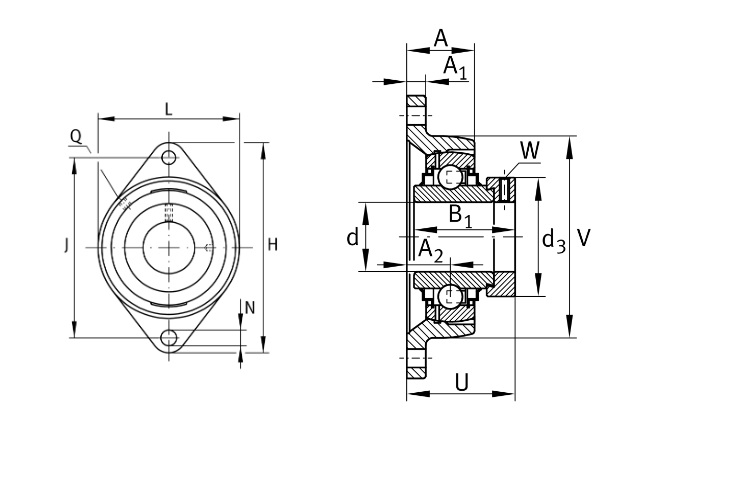

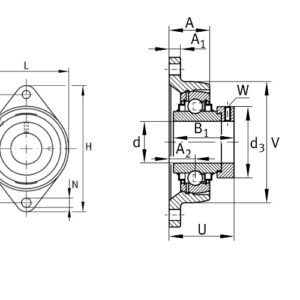

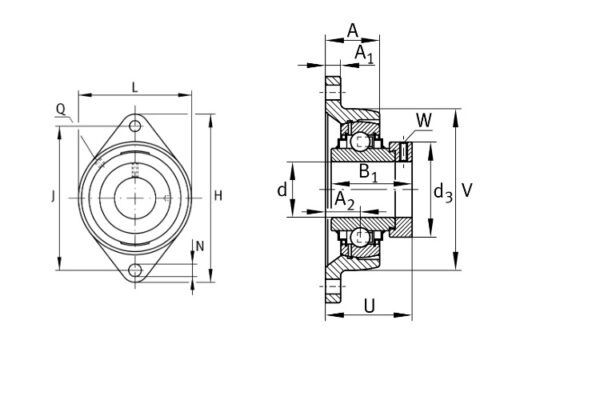

Bore Diameter d: 40 mm
Flange width L: 105 mm
Height flange H: 172 mm
Total height unit U: 55.1 mm
Distance fixing bore J: 143.5 mm
Fixing bore N: 14 mm
Basic dynamic load rating: 34500 N
Basic static load rating: 19800 N
Fatigue load limit: 840 N
Temperature range: -20 °C…120°C
Material: GG, Grey cast iron

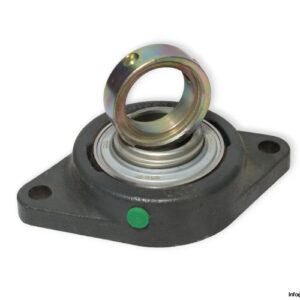

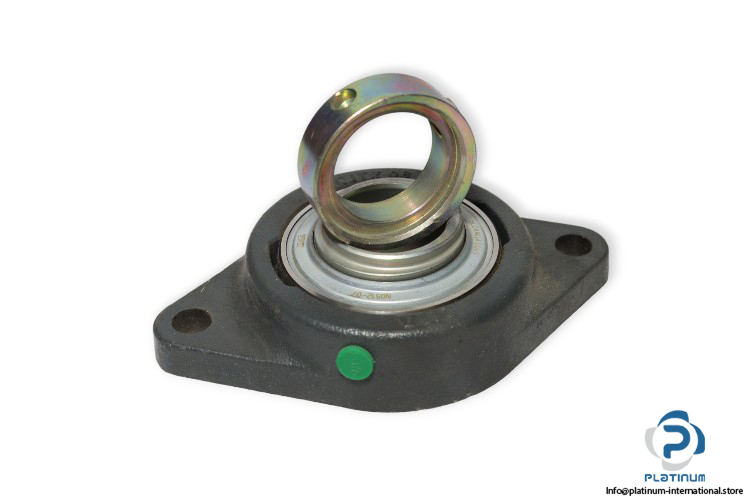

Locking device: eccentric locking collar
