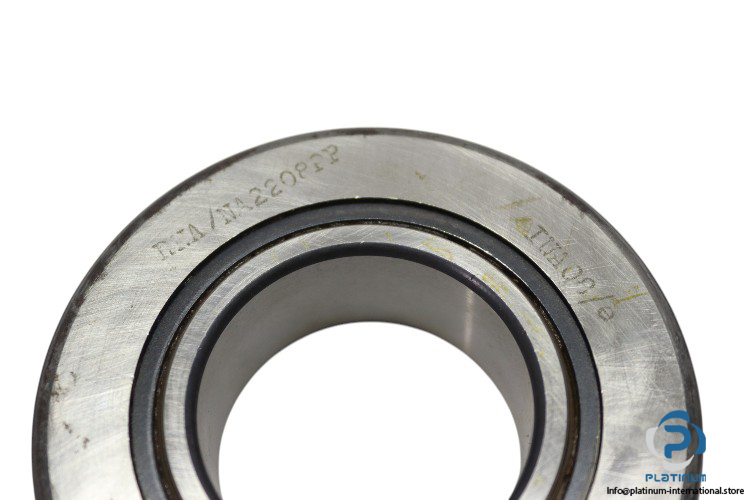

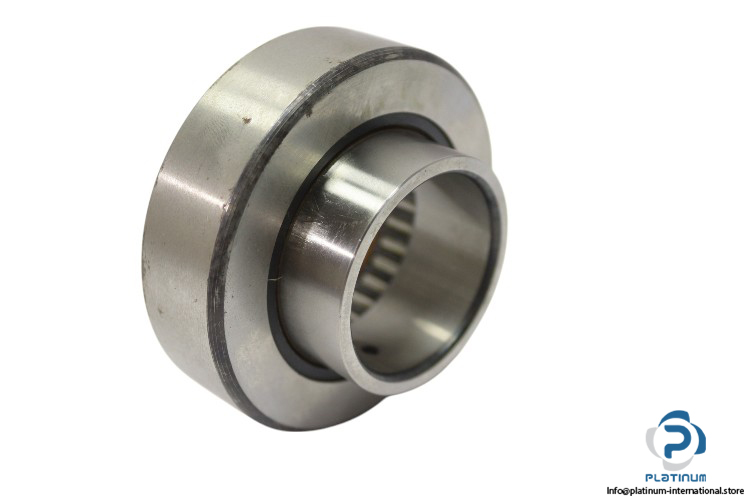

INA RNA/NA 2208 PP YOKE TYPE TRACK ROLLER
The INA RNA/NA 2208 PP is a high-performance yoke type track roller designed for demanding applications involving high radial loads and moderate speeds. Equipped with PP lip seals on both sides and permanent grease lubrication, it ensures reliable and maintenance-friendly operation in harsh environments.
Manufacturer: INA
Type: Yoke Type Track Roller
Model: RNA/NA 2208 PP
Technical Information
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 80 mm
- Width, Outer Ring (C): 22.7 mm
- Width of the Bearing (B): 23 mm
- Basic Dynamic Load Rating, Radial: 26,000 N
- Basic Static Load Rating, Radial: 41,500 N
- Fatigue Load Limit, Radial: 5,400 N
- Speed on Permanent Grease Lubrication: 850 rpm
- Sealing: PP, Lip seal on both sides
