Manufacturer: Schaeffler INA

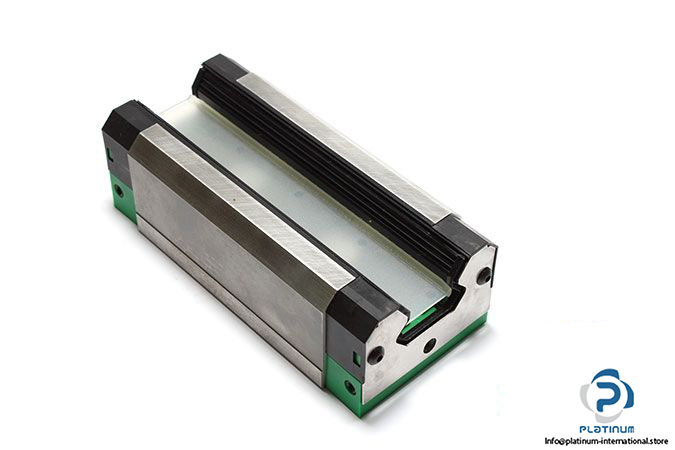

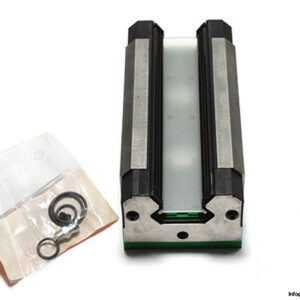

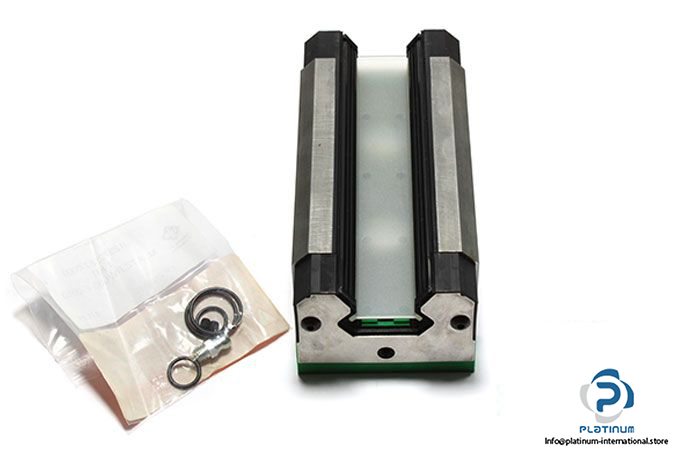

Type: Recirculating Roller Bearing Carriage

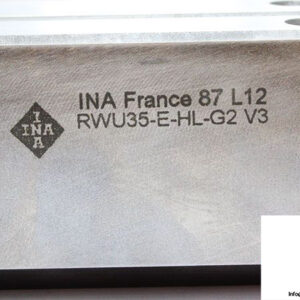

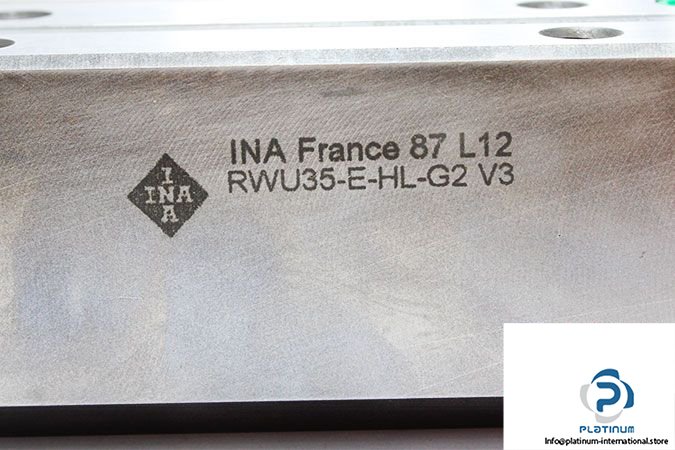

MNR: RWU35-E-HL-G2-V3

Size: 35 mm

Basic Load Ratings:

Dynamic C: 70,000 N

Static C₀: 175,000 N

Static Moment Rating About:

X axis M_0x: 1,500 Nm

Y axis M_0Y: 3,350 Nm

Z axis M_0Z: 3,000 Nm

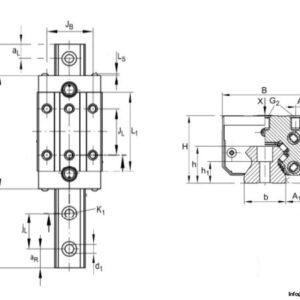

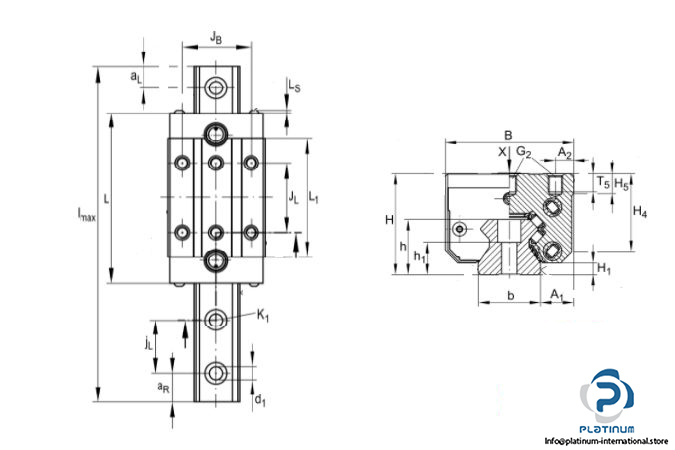

Dimensions

Height system H: 55 mm

Width carriage B: 70 mm

Overall length carriage L: 148.7 mm

Weight: 2.1 kg
