Manufacturer: Schaeffler INA

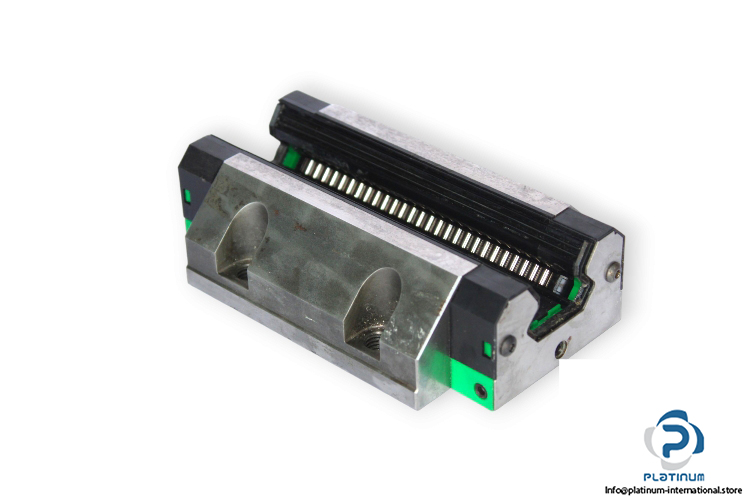

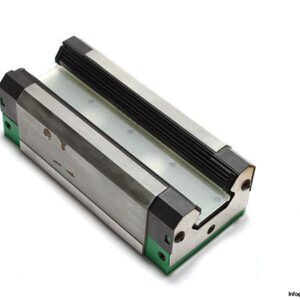

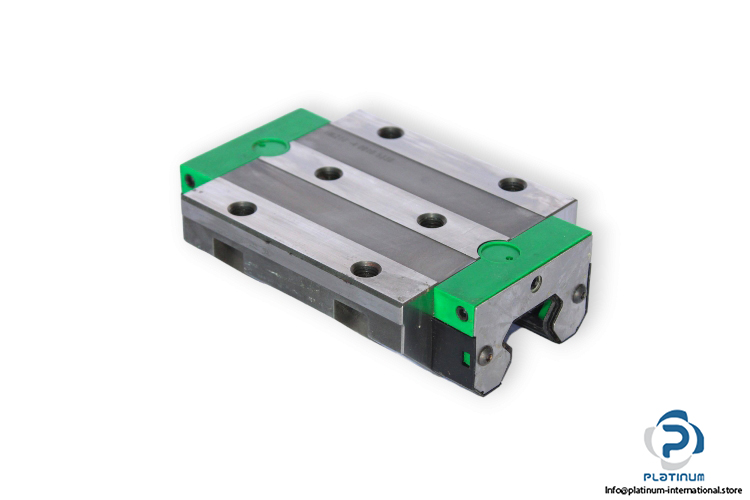

Type: Recirculating Roller Carriage
MNR: RWU35E-L-G2-V3

Size: 35 mm
Basic Load Ratings:
Dynamic C: 70,000 N
Static C₀: 175,000 N
Static Moment Rating About:
X axis M_0x: 1,500 Nm
Y axis M_0Y: 3,350 Nm
Z axis M_0Z: 3,000 Nm

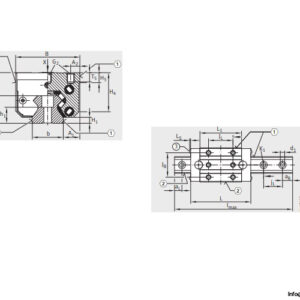

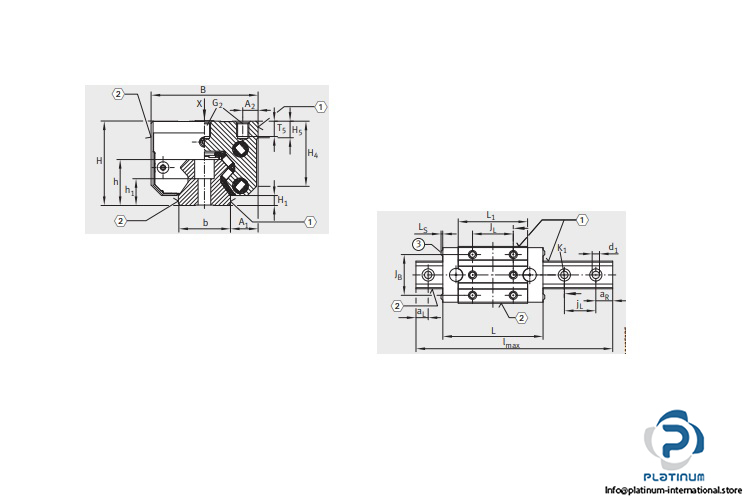

Dimensions
Height system H: 48 mm
Width carriage B: 100 mm
Overall length carriage L: 148.8 mm
