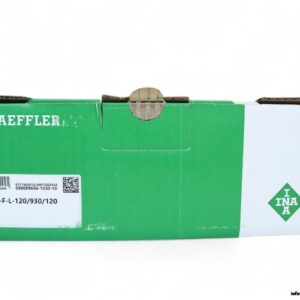

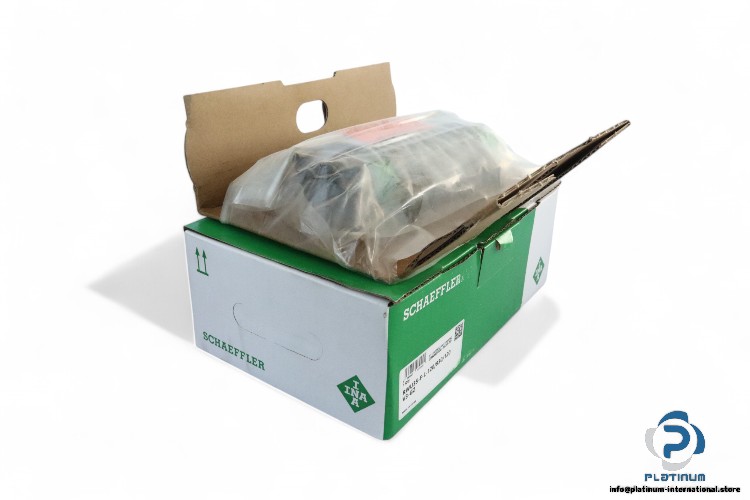

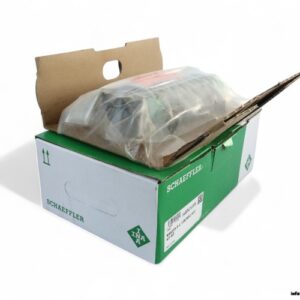

Manufacturer: INA
Type: RECIRCULATING ROLLER BEARING CARRIAGE
Model: RWU35-F-L-120/930/120-V3-G2
Size: 35 mm

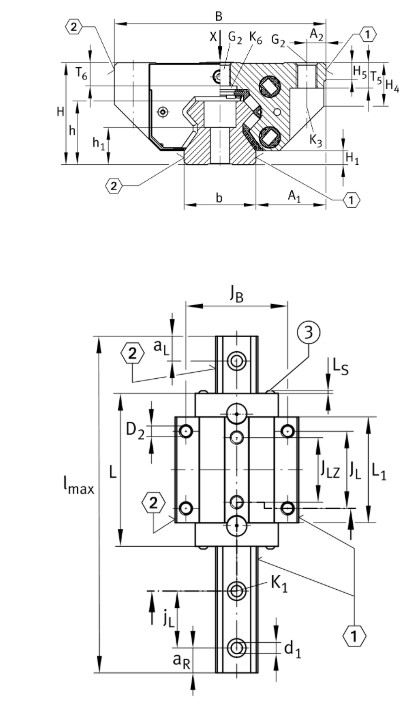

Dimensions
Height system H: 48 mm
Width carriage B: 100 mm
Overall length carriage L: 148.8 mm
Block height: 41.5 mm
Guideway length: 930 mm
aL: 120 mm
aR: 120 mm
Basic Load Ratings:
Dynamic C: 70,000 N
Static C0: 175,000 N
Static Moment Rating About:
X axis M0x: 1,500 Nm
Y axis M0Y: 3,350 Nm
Z axis M0Z: 3,000 Nm
Preload: V3
Accuracy class: G2
Version: F
Carriage design: L, Long carriage
