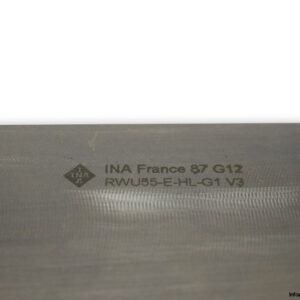

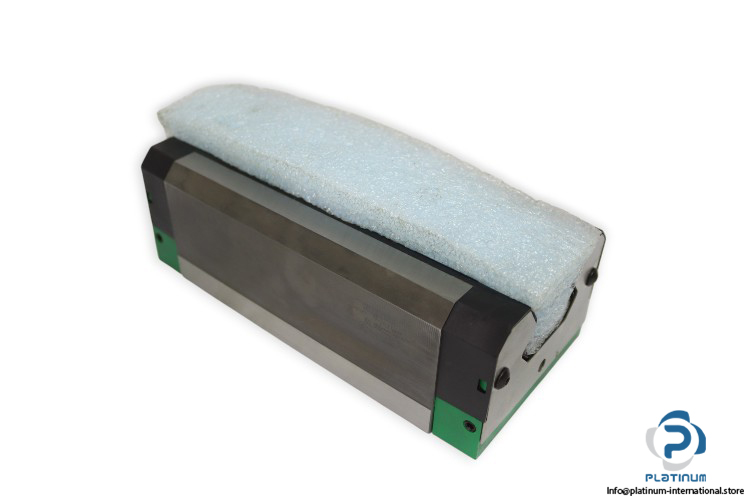

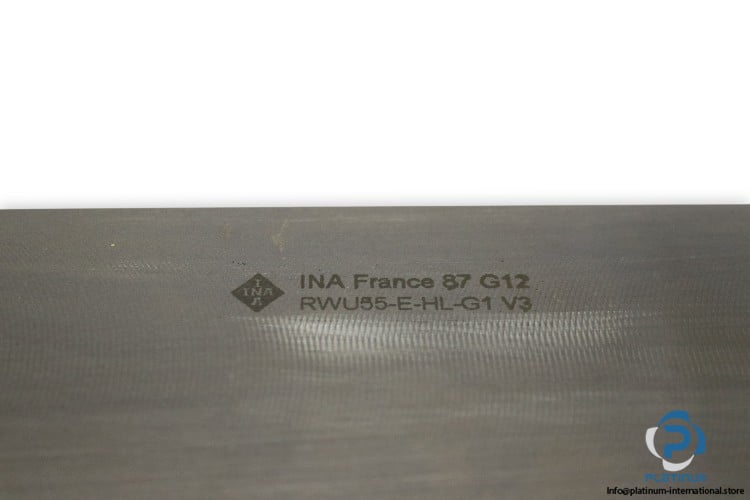

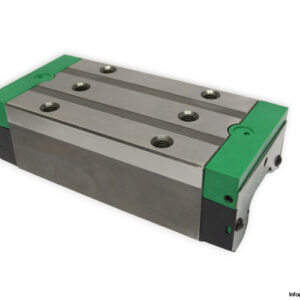

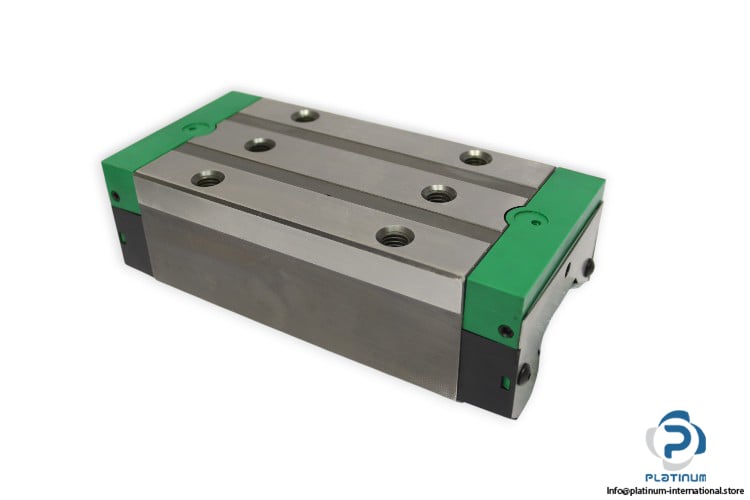

INA RWU55-E-HL-G1 V3 Recirculating Roller Bearing Carriage
The INA RWU55-E-HL-G1 V3 is a heavy-duty recirculating roller bearing carriage engineered for high-load linear guidance applications. Featuring a high, long carriage design with preload and G1 accuracy, it delivers excellent rigidity, precision, and reliability in demanding industrial environments. Compatible rails (TSX 55-E) are available in a wide range of lengths.
Manufacturer: INA
Type: Recirculating Roller Bearing Carriage
Model: RWU55-E-HL-G1 V3
Rail: TSX 55-E
Size: 55 mm

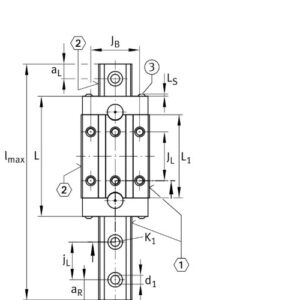

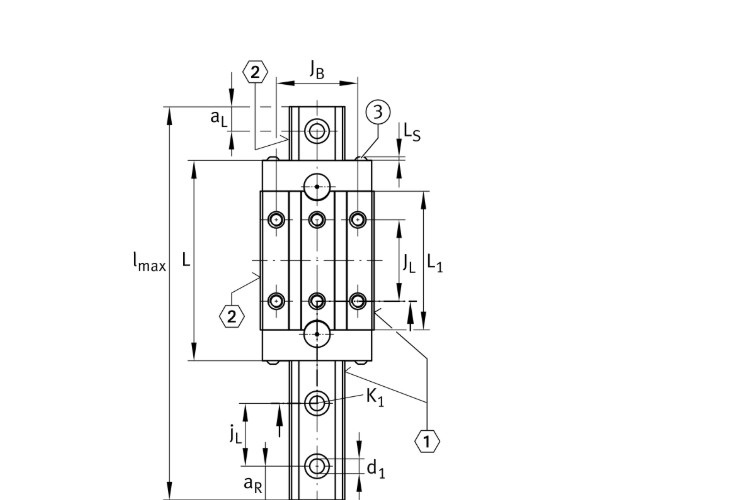

Technical information
- Height System H: 80 mm
- Height of Block: 69 mm
- Width Carriage B: 100 mm
- Overall Length Carriage L: 210.7 mm
- JL: 95 mm
- JB: 75 mm
Basic Load Ratings
- Dynamic C: 167,000 N
- Static C0: 415,000 N
Static Moment Rating
- X Axis M0x: 4223 Nm
- Y Axis M0y: 12,214 Nm
- Z Axis M0z: 11,010 Nm
Additional Information
- Accuracy Class: G1
- Carriage Preload: V3
- Carriage Design: HL, High, Long Carriage
- Note: We also provide the corresponding rails (guideways) in a wide range of lengths-please ask us if you need rails to match your bearing.
