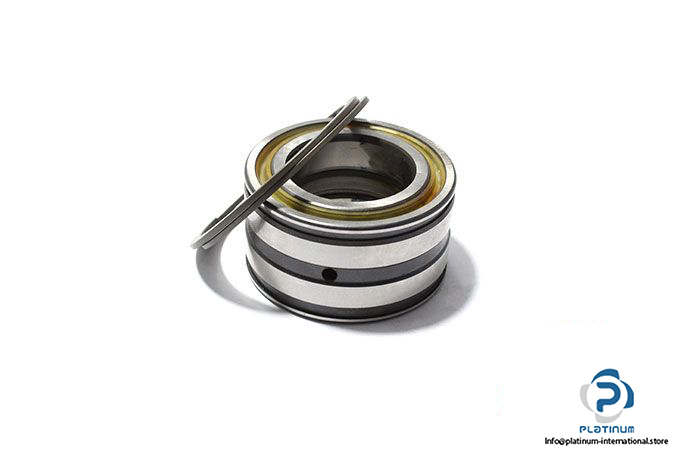

Manufacturer: Schaeffler INA

Type: Cylindrical Roller Bearing

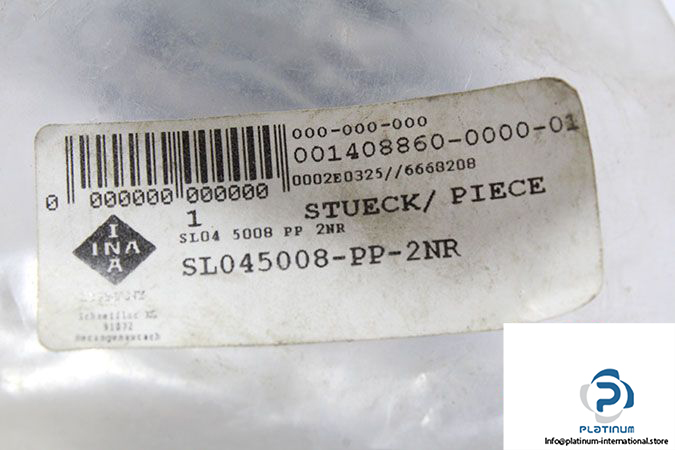

Model: SL04 5008 PP 2NR

Dimensions:

Bore Diameter d: 40 mm

Outer diameter D: 68 mm

Width B: 38 mm

Basic load ratings:

Dynamic C_r: 80,000 N

Static C_0r: 111,000 N

Fatigue load rating: 16,300 N

Limiting speed for grease lubrication: 3150 rpm

Sealing: Contact Seal on both sides

Cage design: Full complement of rollers (no cage)

Operating temperature: -30 … +80°C

Holding Rings: two retaining rings included

Weight: 0.56 kg
