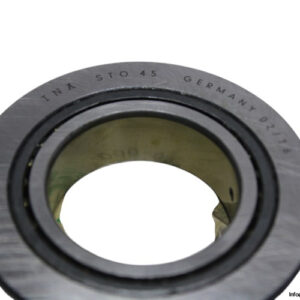

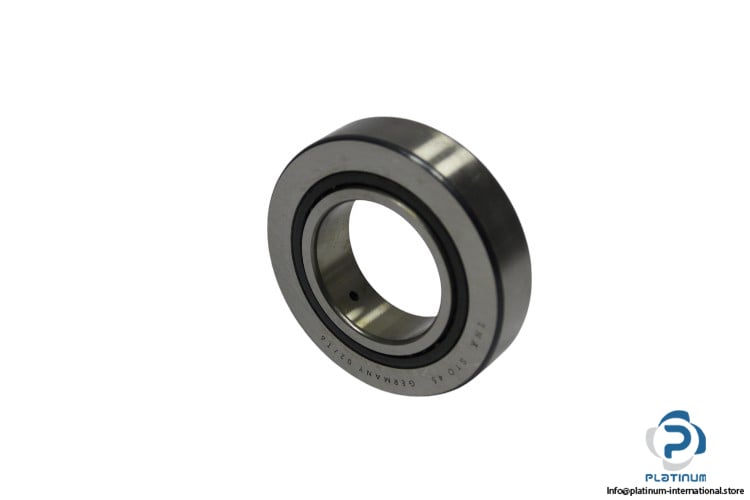

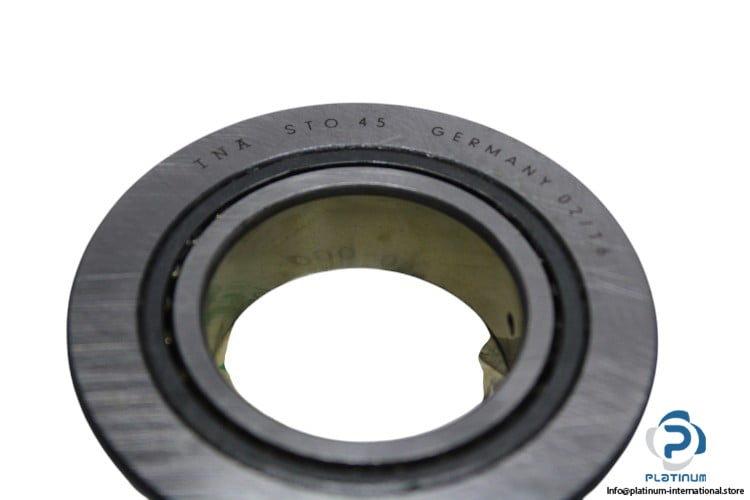

INA STO 45 Yoke Type Track Roller
The INA STO 45 Yoke Type Track Roller is a high-performance roller bearing designed for applications requiring smooth and precise motion control. With its durable design, high load-carrying capacity, and ability to operate under permanent grease lubrication, this track roller ensures long-term reliability in demanding environments.
- Manufacturer: INA
- Type: Yoke Type Track Roller
- Model: STO 45
Technical Information
- Bore Diameter (d): 45 mm
- Outer Diameter (D): 85 mm
- Width, Inner Ring (B): 20 mm
- Width, Outer Ring (C): 19.8 mm
- Basic Load Ratings:
- Dynamic: 25,000 N
- Static: 44,000 N
- Fatigue Load Limit: 6,000 N
- Speed on Permanent Grease Lubrication: 750 1/min
