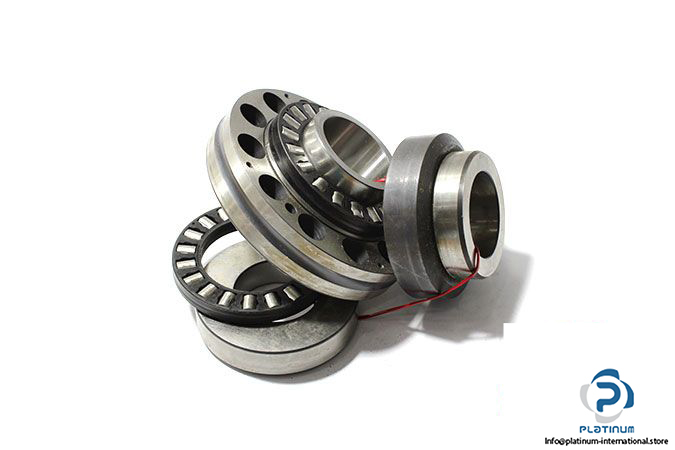

Manufacturer: Schaeffler INA

Type: Combined Axial/Radial Bearing

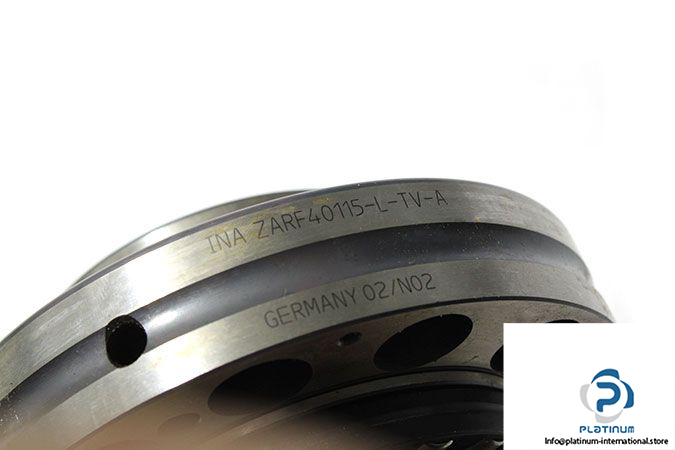

Model: ZARF40115 L TV A

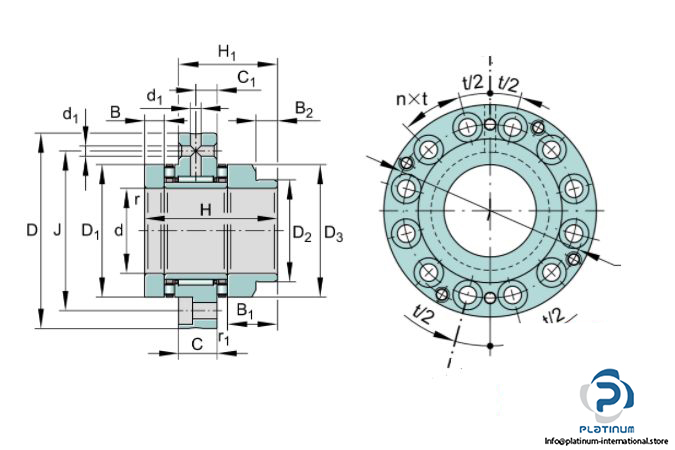

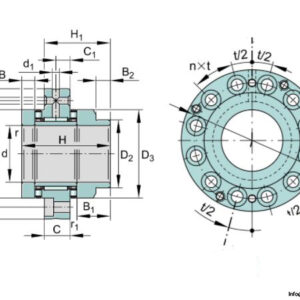

Dimensions:

Bore Diameter d: 40 mm

Outer diameter D: 115 mm

Hight H: 93 mm

Basic load ratings, Radial:

Dynamic C_r: 38000 N

Static C_0r: 74000 N

Basic load ratings, Axial:

Dynamic C_a: 117000 N

Static C_0a: 315000 N

Fatigue load rating:

Radial C_ur: 10400 N

Axial C_ua: 27000 N

Limiting speed oil lubrication: 3700 rpm

Limiting Speed, Grease lubrication: 1200 rpm

Cage: TV, Plastic Cage

Operating temperature: -30 … +120 °C

Weight: 2.76 kg
