Manufacturer: Schaeffler INA
Type: Axial Angular Contact Ball Bearing
Model: ZKLN1747-2RS-PE

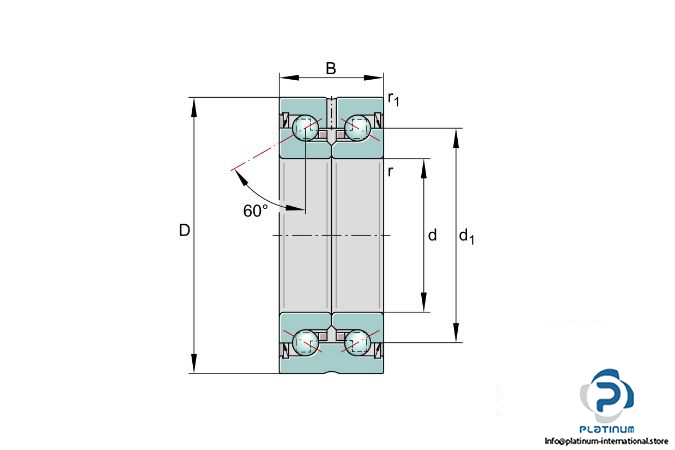

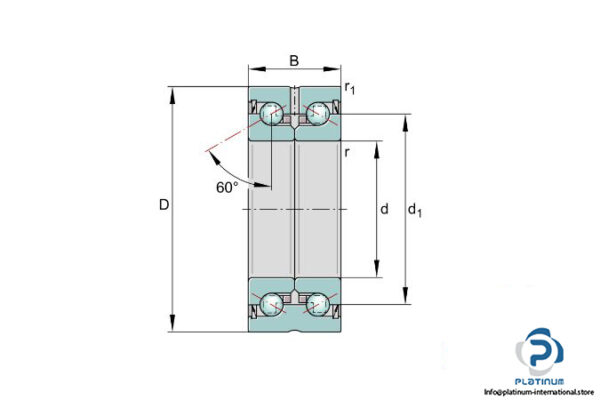

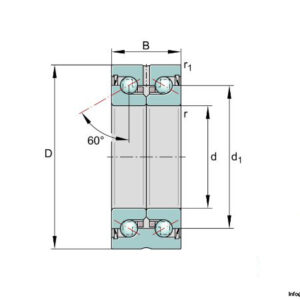

Dimensions
Bore Diameter d: 17 mm
Outer diameter D: 47 mm
Width B: 25 mm
Contact angle α: 60 °
Basic load ratings, axial:
Dynamic Ca: 18900 N
Static C0a: 31500 N
Fatigue load limit, axial: 1144 N
Limiting speed for grease lubrication: 7600 rpm
Thermally safe operating speed: 3300 rpm
Sealing: 2RS, Contact lip seal on both sides
Operating Temperature: -30 … +120 °C
Weight: 0.25 kg
