Manufacturer: Schaeffler INA
Type: Precision locknut ZM
Model: ZM55

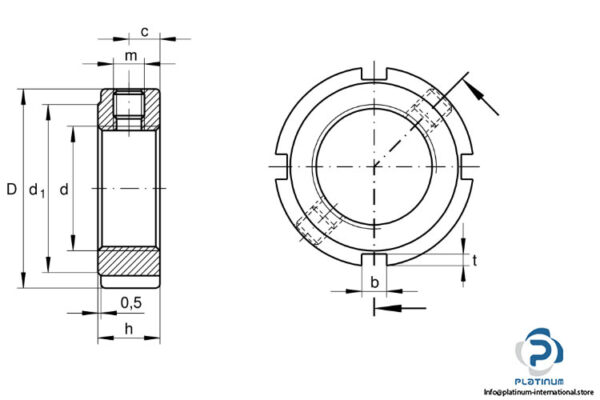

Dimensions:
Thread d: M55X2
Plant diameter outside d1: 68 mm
Outside diameter D: 75 mm
Height h: 16 mm
Mounting torque set screw: 5 Nm
Breaking load, axial FaB: 229000 N
Breakawag ML: 150 Nm
Mounting torque reference MAL: 95 Nm
