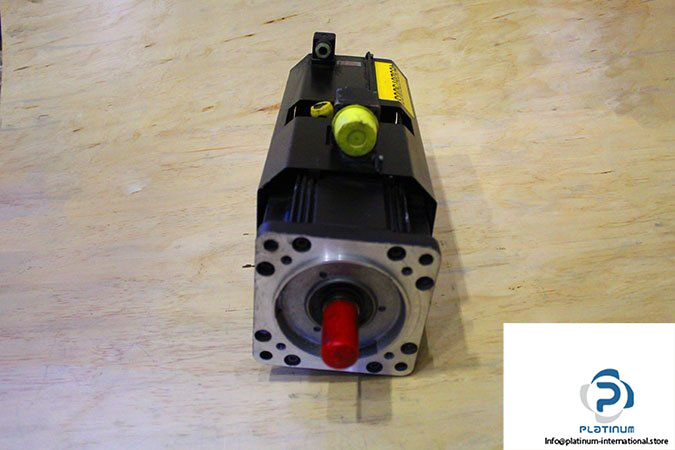

Manufacturer: BOSCH REXROTH INDRAMAT

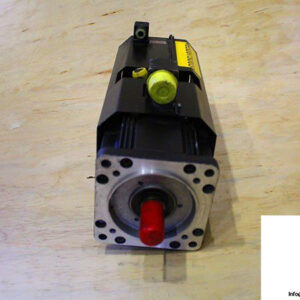

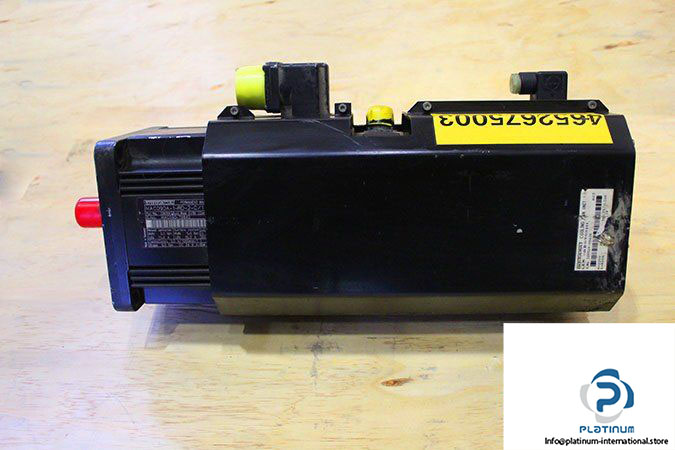

Type: PERMANENT MAGNET SERVOMOTOR WITH AXIAL COOLING

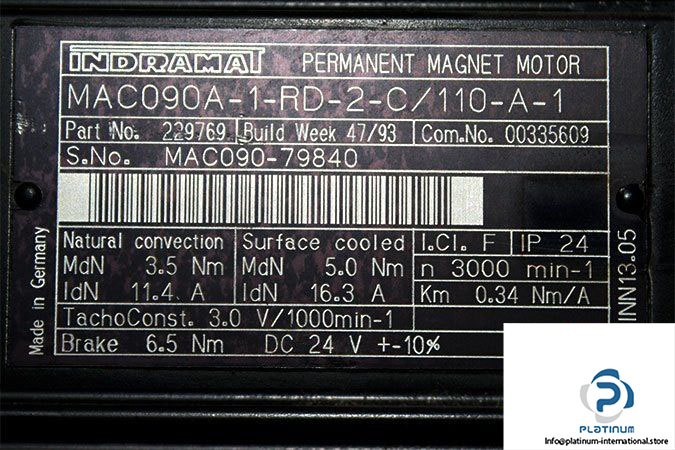

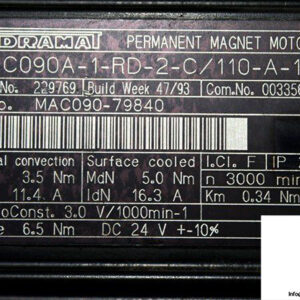

Model: MAC090A-1-RD-2-C / 110-A-1

MRNs: 229769 – 00335609 – MAC090 – 79840



Motor Size: 090

Centering diameter: for design B05 and B14

Speed: 3000 min^-1

Standstill torque: 3.5 Nm Natural convection, 5 Nm Cooled surface

Standstill current: 11.4 A Natural convection, 16 A cooled surface

Torque Constance: 0.34 Nm/A

Feedback: Tacho 3 V/1k min^-1

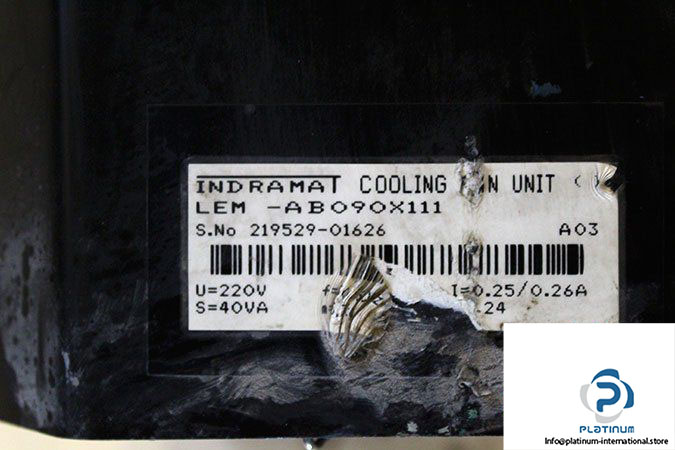

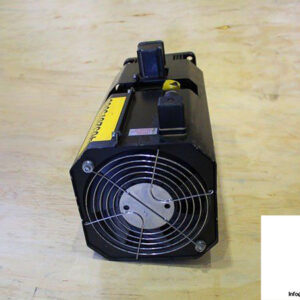

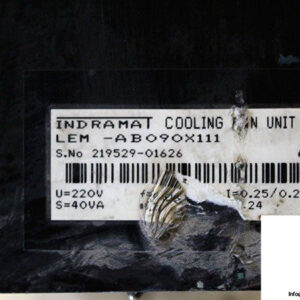

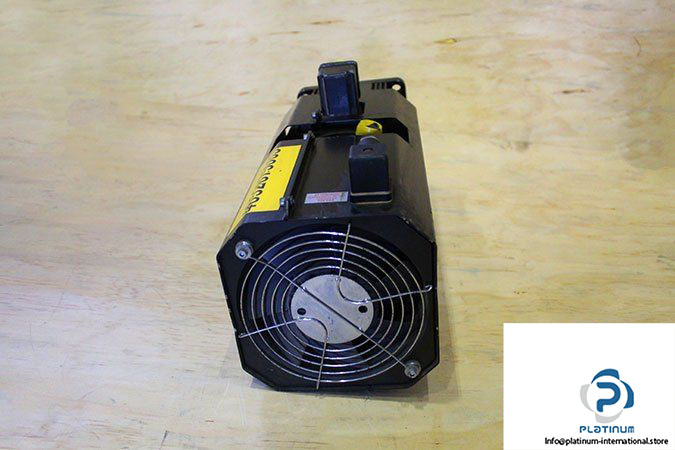

Cooling Unit: INDRAMAT LEM – AB090X111; 220V, 40W

Insulation Class: F

Protection: IP24
