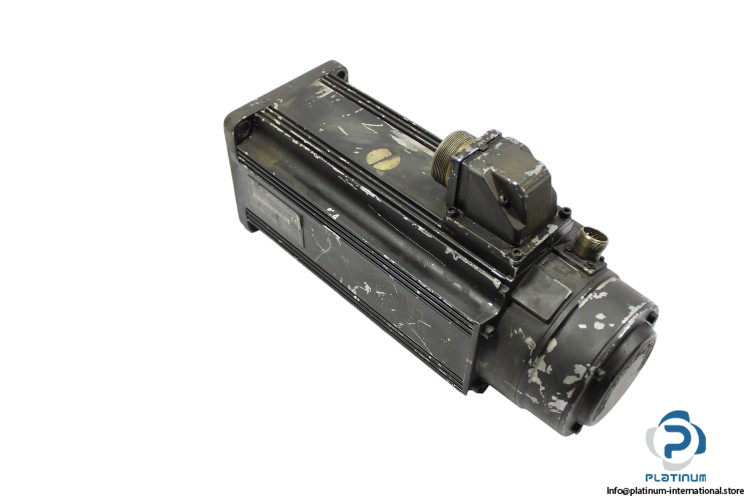

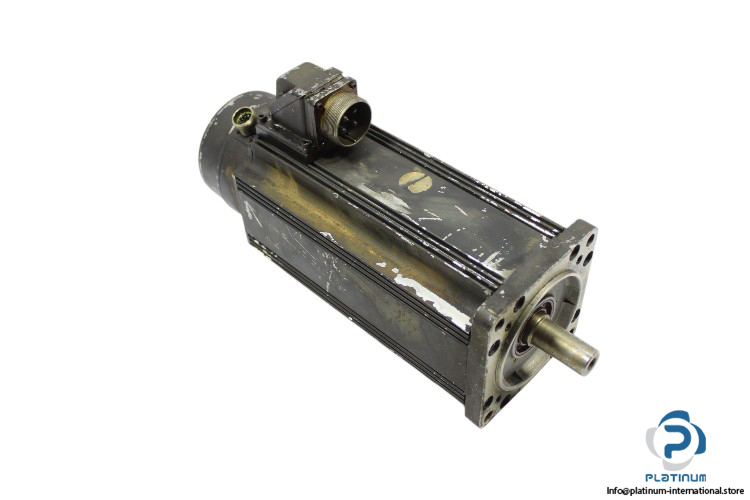

INDRAMAT MAC093C-0-DS-3-C/110-A-0 Permanent Magnet Motor
The INDRAMAT MAC093C-0-DS-3-C/110-A-0 Permanent Magnet Motor is a high-performance industrial motor engineered for precision and efficiency. Designed for demanding applications, it delivers reliable operation with natural convection and surface cooling options, ensuring optimal performance under various load conditions. With a rated speed of 4000 rpm and a robust IP65 protection class, this motor is ideal for high-precision automation systems.
- Manufacturer: INDRAMAT
- Type: Permanent Magnet Motor
- Model: MAC093C-0-DS-3-C/110-A-0
- MRN: R911270160

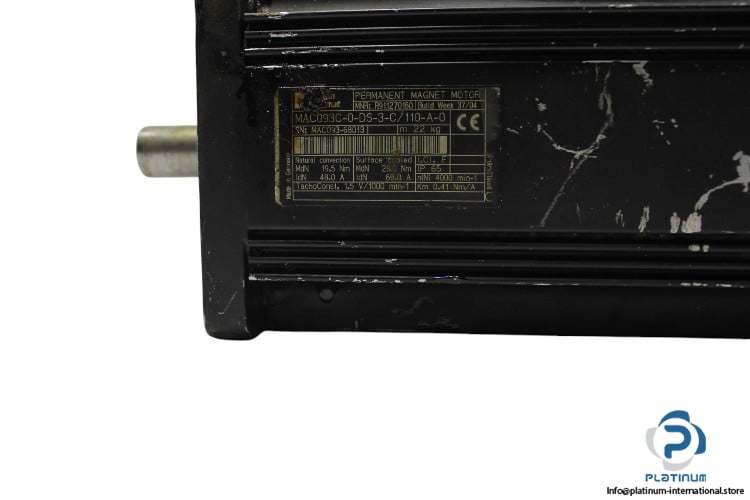

Technical Specifications
- Natural Convection:
- Rated Torque: 19.5 Nm
- Rated Current: 48.0 A
- Surface Cooled:
- Rated Torque: 28.0 Nm
- Rated Current: 69.0 A
- Rated Speed: 4000 rpm
- Torque Constant: 0.41 Nm/A
- Tacho Constant: 1.5 V/1000min»¹
- Protection Class: IP65
- Insulation Class: F
