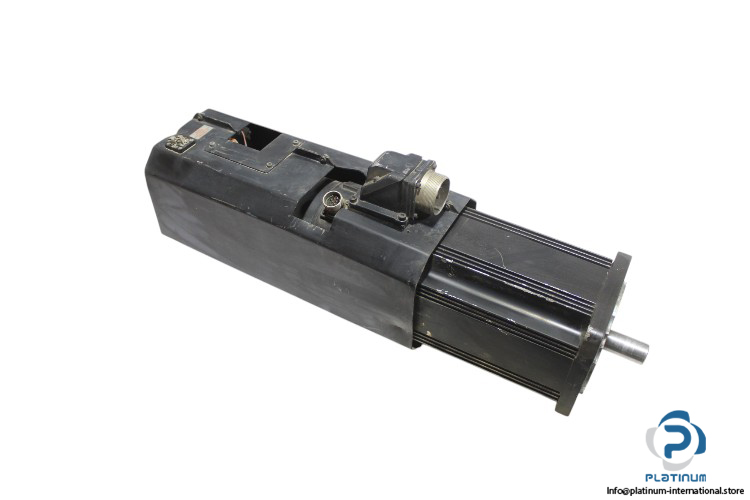

Indramat MAC093C-1-FS-4-C/130-A-0/DI517LV Permanent Magnet Motor
The Indramat MAC093C-1-FS-4-C/130-A-0/DI517LV Permanent Magnet Motor is designed for high-performance applications with high-rated torque and speed. It ensures reliable operation with natural convection cooling and surface cooling, making it ideal for demanding environments.

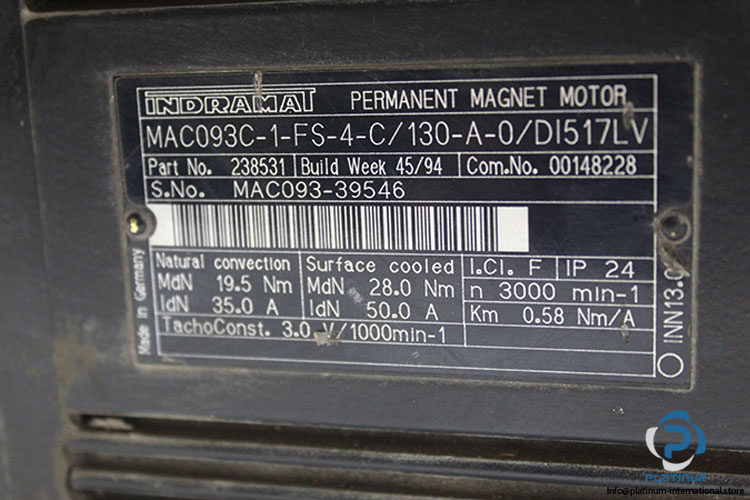

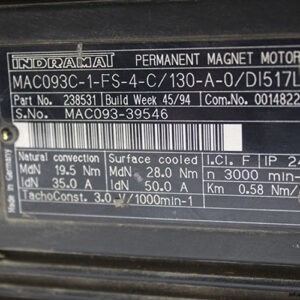

Manufacturer: Indramat
Model: MAC093C-1-FS-4-C/130-A-0/DI517LV
Type: Permanent Magnet Motor
Part No.: 238531
Com. No.: 00148228
S. No.: MAC093-39546
Technical Information:
- Size: 93
- Centering Diameter: 130 mm
- Cooling: Natural Convection
- Rated Torque [Nm]: 19.5
- Rated Current [A]: 35.0
- Surface Cooled: Yes
- Rated Torque [Nm]: 28.0
- Rated Current [A]: 50.0
- Rated Speed [rpm]: 3000
- Torque Constant [Nm/A]: 0.58
- Tacho Constant [V/1000 min-1]: 3.0
- Protection Class [IP]: 24
- Insulation Class: F
Attachment: INDRAMAT LEM-AB093X141 COOLING FAN UNIT

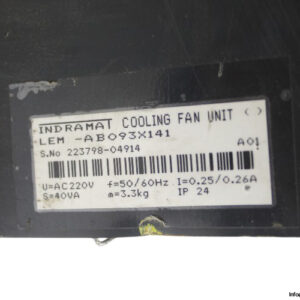

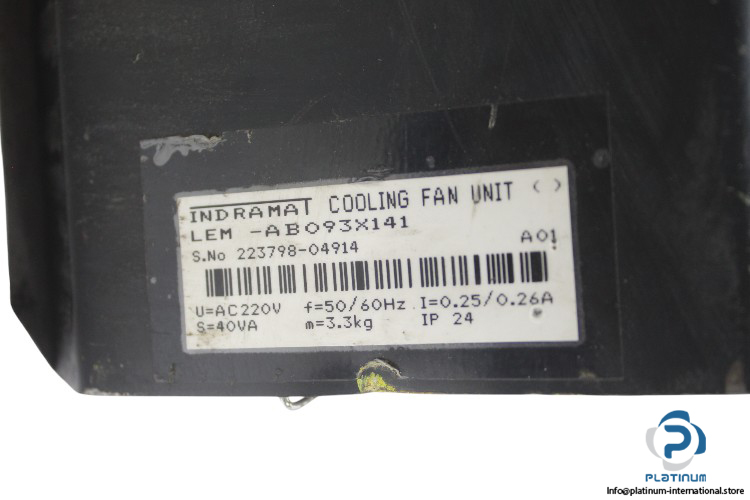

Indramat LEM-AB093X141 Cooling Fan Unit
Manufacturer: Indramat
Model: LEM-AB093X141
Type: Cooling Fan Unit
Part No.: 223798-04914
Technical Information:

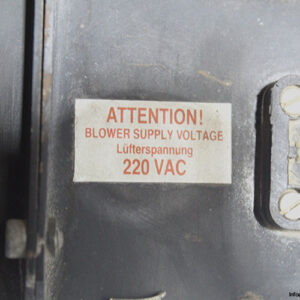

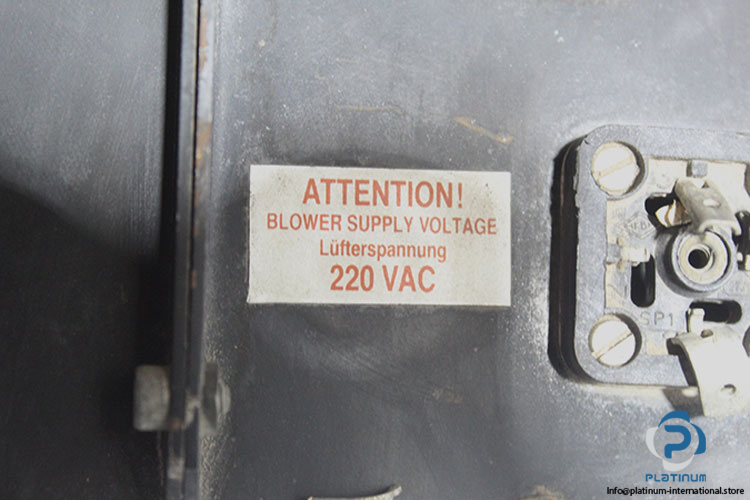

- Voltage: 220 V AC
- Frequency: 50/60 Hz
- Current: 0.25 / 0.26 A
- Power: 40 VA
