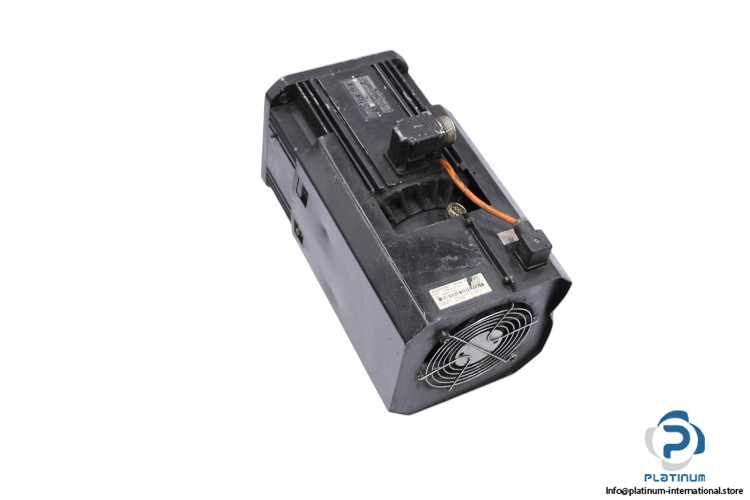

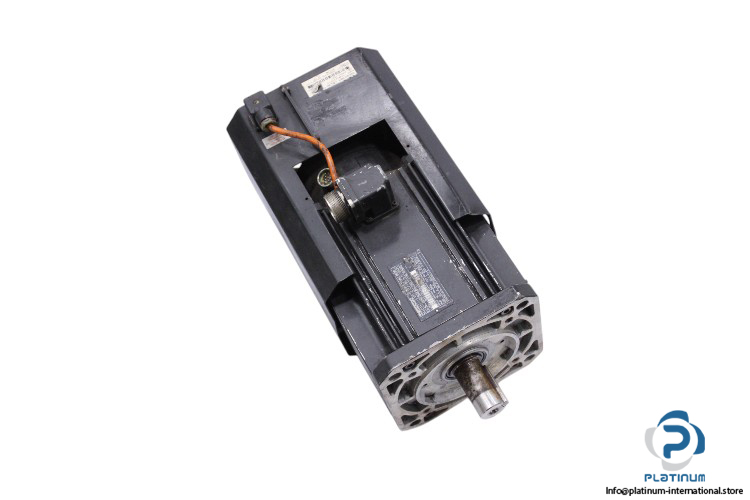

INDRAMAT MAC112A-1-VD-2-C/130-A-0/S005 Permanent Magnet Motor

The INDRAMAT MAC112A-1-VD-2-C/130-A-0/S005 Permanent Magnet Motor is a high-performance servo motor designed for precision applications. Built for efficiency and durability, it provides consistent torque and speed control with advanced cooling options, making it ideal for demanding industrial environments.

• Manufacturer: INDRAMAT
• Type: Permanent Magnet Motor
• Model: MAC112A-1-VD-2-C/130-A-0/S005
• Part No.: 232423

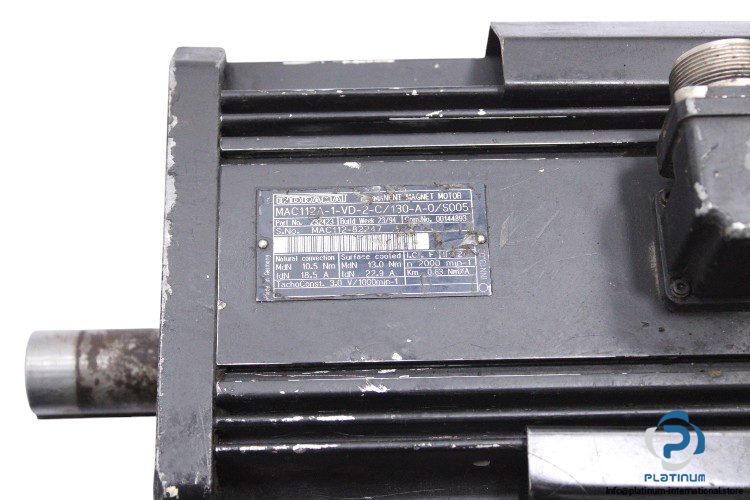

Technical Specifications

• Natural Convection:
• Rated Current: 18.5 A
• Rated Torque: 10.5 Nm
• Surface Cooled:
• Rated Current: 22.9 A
• Rated Torque: 13 Nm
• Rated Speed: 2000 min»¹
• Torque Constant: 0.63 Nm/A
• Voltage Constant: 3.0 V/1kmin»¹
• Thermal Class: F

Attached Components

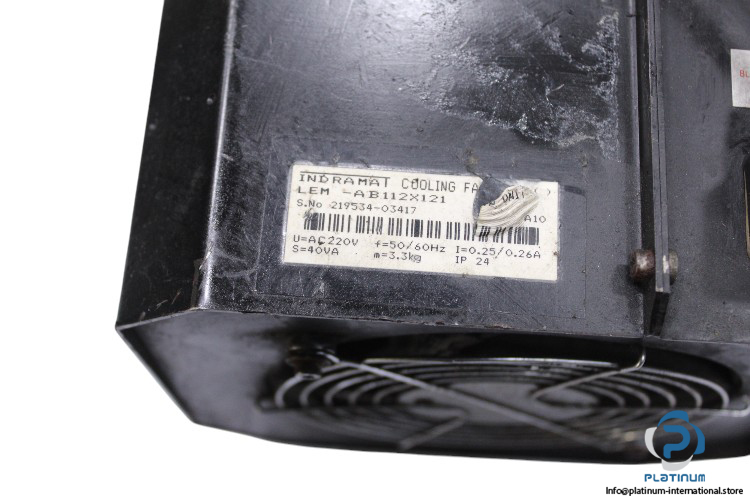

• Cooling Unit: INDRAMAT LEM “ AB112X121

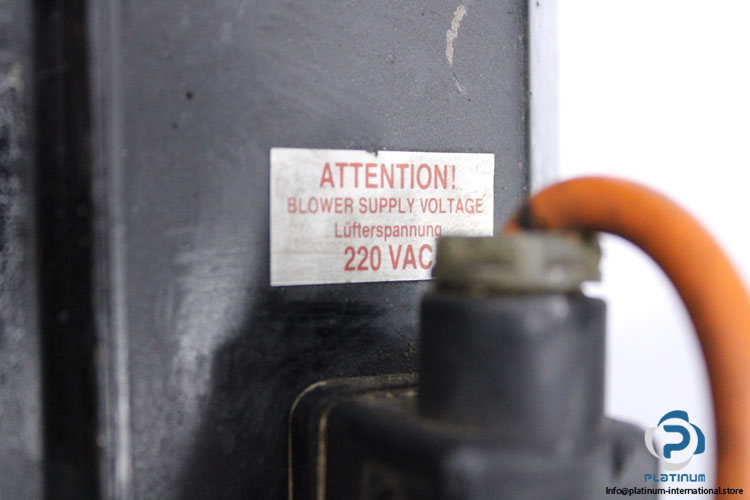

• Supply Voltage: 220 VAC
• Frequency: 50/60 Hz
• Current: 0.25/0.26 A
