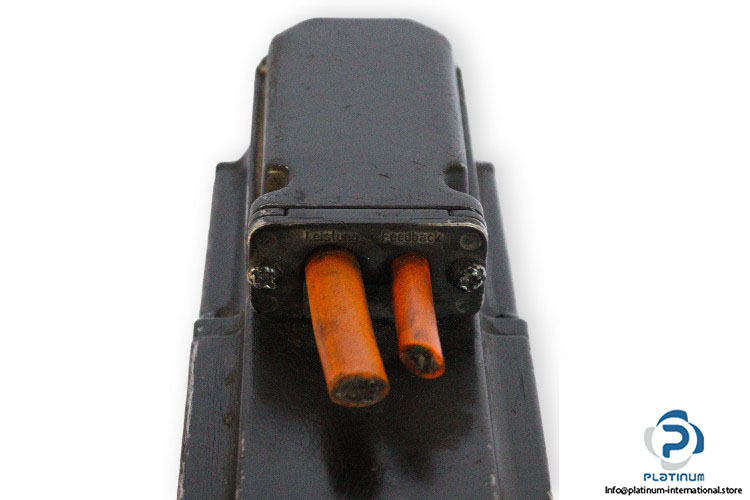

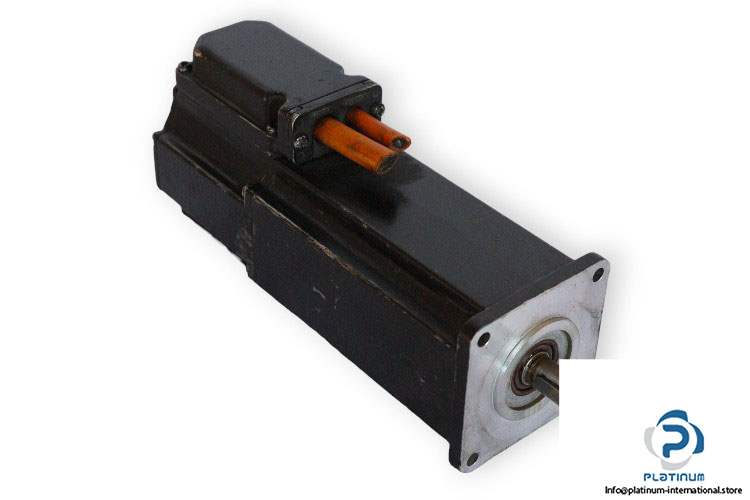

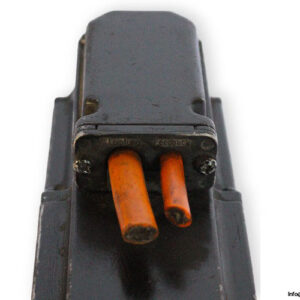

INDRAMAT / REXROTH MKD041B-144-KP1 PERMANENT MAGNET MOTOR

The MKD041B-144-KP1 Permanent Magnet Motor by Indramat/Rexroth is a compact and powerful servo motor, engineered for high-precision motion control in demanding automation systems. With a high nominal speed and excellent torque-to-inertia ratio, it ensures accurate and dynamic positioning.

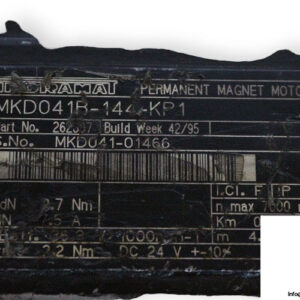

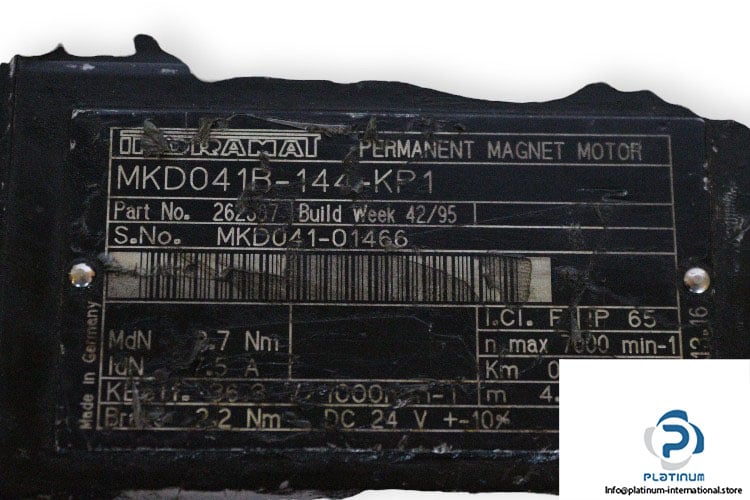

Manufacturer: INDRAMAT / REXROTH
Type: Permanent Magnet Motor
Model: MKD041B-144-KP1
Part No.: 262307
S.NO.: MKD041-0-01466

Technical Information

• Motor Size: 41
• Winding Code: 144
• Nominal Speed: 6000 rpm
• Continuous Torque at Standstill MdN: 2.7 Nm
• Rated Torque MN: 12.0 Nm
• Continuous Current at Standstill IdN: 7.5 A
• Rated Current: 2.8 A
• Peak Current IMAX: 34 A
• Rated Speed: 3000 min»¹
• Rated Torque: 1.4 Nm
• Rated Frequency: 150 Hz
• Rated Voltage: 115 V
• Number of Pole Pairs: 3 P
• Voltage Constant at 20°C: 36.3 V/1000min»¹
• Torque Constant: 0.4 Nm/A
• Maximum Speed: 7500 min»¹
• Brake Holding Torque: 2.2 Nm
• Brake Rated Voltage: 24 V
• Brake Rated Current: 0.34 A
• Moment of Inertia: 0.1 x 10»´ kg·m²
• Encoder: Multiturn Absolute Encoder
