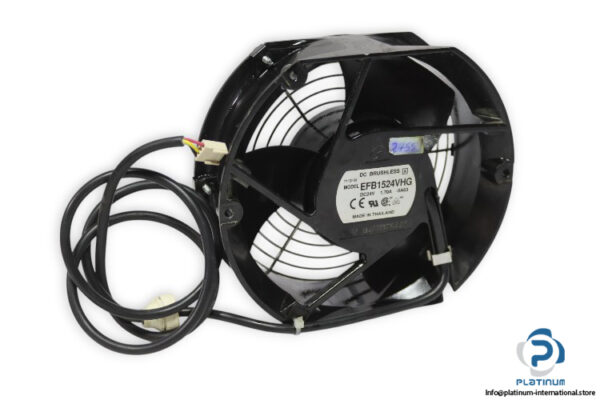

DELTA EFB1524VHG DC BRUSHLESS FAN

High-performance DC brushless fan designed for industrial cooling systems and compatible with Danfoss VLT FC-302 drives. Built with ball bearing technology and aluminum housing, it delivers efficient airflow and long-term durability in demanding environments.

• Manufacturer: Delta
• Type: DC Brushless Fan

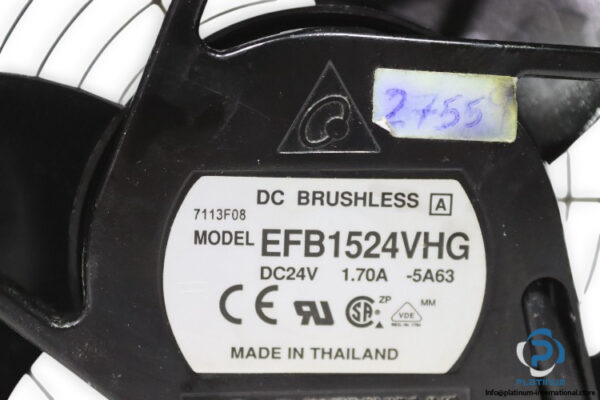

• Model: EFB1524VHG
• ID. No.: 7113F08
• Ref. Code: 5A63
• Complete With: VLT / DANFOSS / FC-302P30KT5E55H1XGXXXXSXXXXA0BXCXXXXD0 / 131B7129013024G137 / 131B7129

Technical Information

• Current Rating: 1.7 A
• Voltage: 24 V DC
• Power Rating: 23.28 W
• Speed: 4000 rpm
• Air Flow: 302 CFM (8.6 m³/min)
• Bearing Type: Ball
• Housing Material: Aluminum
• Dimensions: 172 × 51 × 150 mm
