DELTA ELECTRONICS AFB0912M AXIAL FAN

AXIAL FAN

Delta Electronics axial fan with 92x92x25 mm square frame, 12 V DC input, ball bearing design, and 43.79 CFM airflow ” ideal for stable cooling in compact industrial setups.

SKU: 1063770 Category: Tags: , , , , , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

DELTA ELECTRONICS AFB0912M AXIAL FAN

This high-performance axial fan by Delta Electronics is built for reliable cooling in compact industrial systems. With a square 92 mm frame, ball bearing design, and 3-wire configuration, it ensures optimal airflow and durability in continuous-duty environments.

Manufacturer: Delta Electronics
Type: Axial Fan
Model: AFB0912M
Code: 9R15
Part No.: 4X11A12R

Technical Information

  • Frame Shape: Square Frame
  • No. of Blades: 7

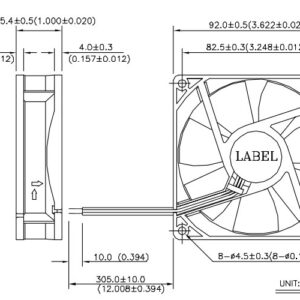

  • Dimensions (mm): 92x92x25
  • Direction: Push
  • Voltage (V DC): 12
  • Bearing Type: Ball bearing
  • Flow Rate (m³/h): 74.4
  • Flow Rate (CFM): 43.79
  • Speed: 2450 rpm
  • Current (A): 0.2
  • Inverter: Without Inverter
  • Number of Wires: 3
  • Blade / Housing Material: Plastic / Plastic
Weight0,1 kg
