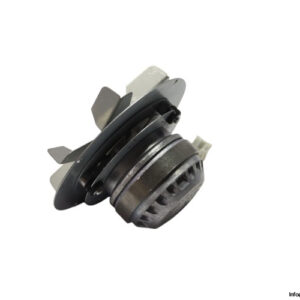

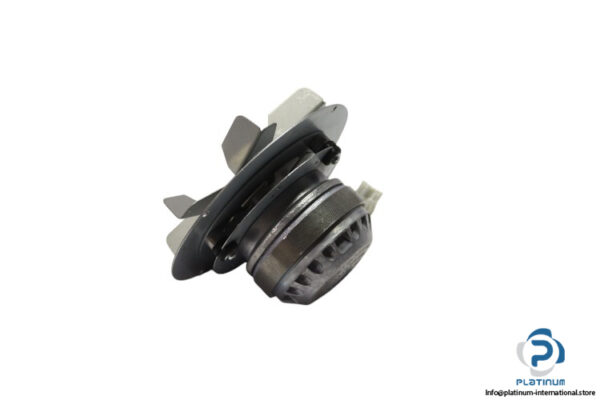

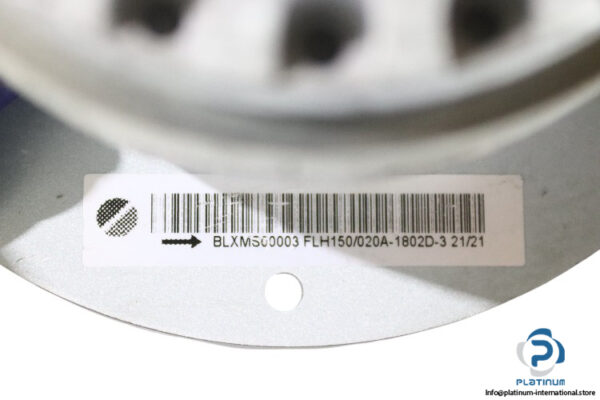

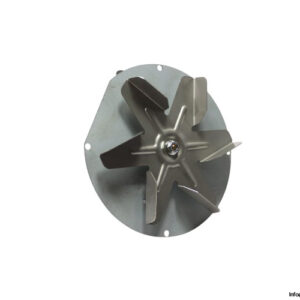

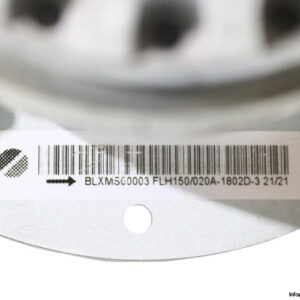

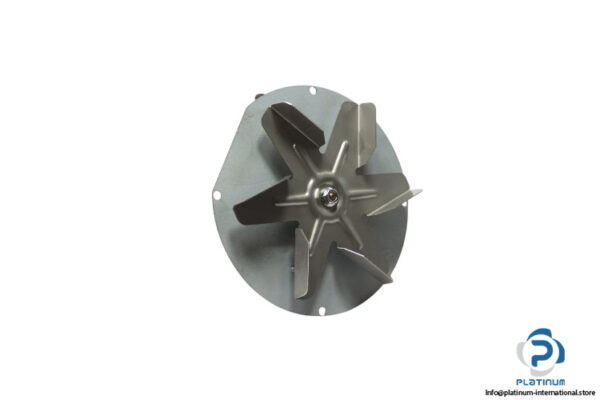

IPC BLXMS00003 Blower Fan with Exhaust Motor FLH150/020A-1802D-3
The IPC BLXMS00003 Blower Fan is a high-performance industrial ventilation component designed for effective airflow and cooling. Equipped with 6 durable metal blades and operating at speeds up to 2600 RPM, it delivers a maximum airflow of 160 m³/h. It runs on 220/240 V AC and supports both 50/60 Hz frequency operation.
This unit is coupled with the IPC FLH150/020A-1802D-3 Exhaust Fan Motor, ensuring reliable and energy-efficient performance with a current rating of 0.14/0.13 A. Built with a metal blade and fan housing, and integrated with a 7-wire configuration, the fan is ideal for demanding ventilation needs in industrial environments.
Manufacturer: IPC
Type: Blower Fan
Model: BLXMS00003
Technical Information:
- Number of Blades: 6
- Voltage: 220/240 V AC
- Power Rating: 32/33 W
- Speed: 2400/2600 RPM
- Frequency: 50/60 Hz
- Inverter: Without Inverter
- Number of Wires: 7
- Dimensions: 150×20 mm
- Max Air Flow: 145/160 m³/h
- Blade / Fan Housing Material: Metal
- Attachment: IPC FLH150/020A-1802D-3 Exhaust Fan Motor

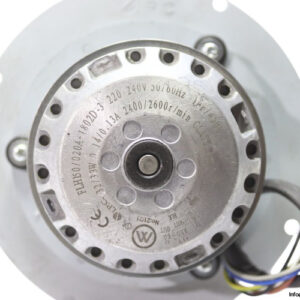

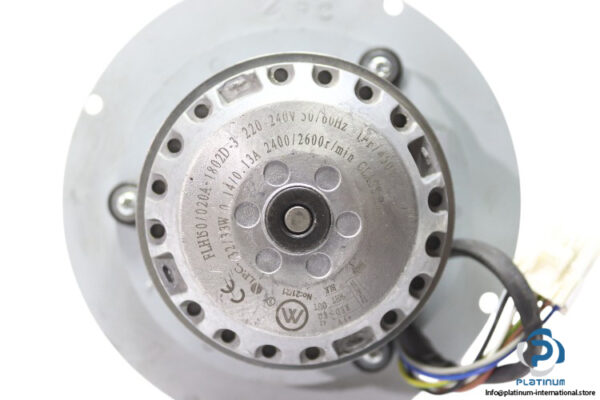

Exhaust Fan Motor Technical Information:
- Manufacturer: IPC
- Type: Exhaust Fan Motor
- Model: FLH150/020A-1802D-3
- Current: 0.14/0.13 A
