Manufacturer: Inor

Type: Temperature Transmitter

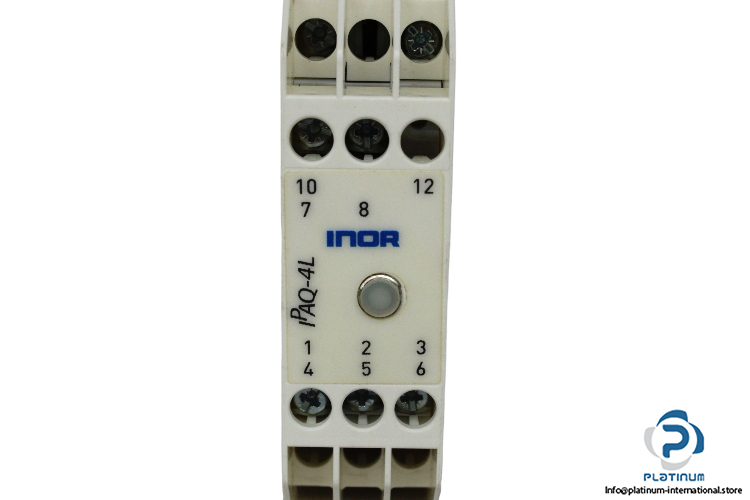

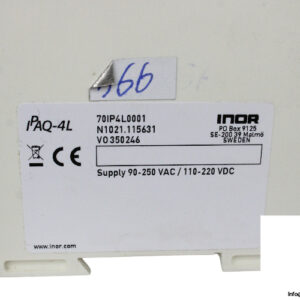

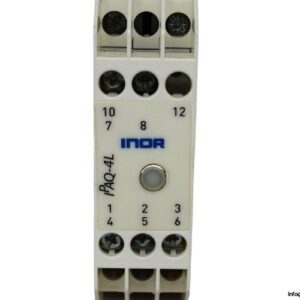

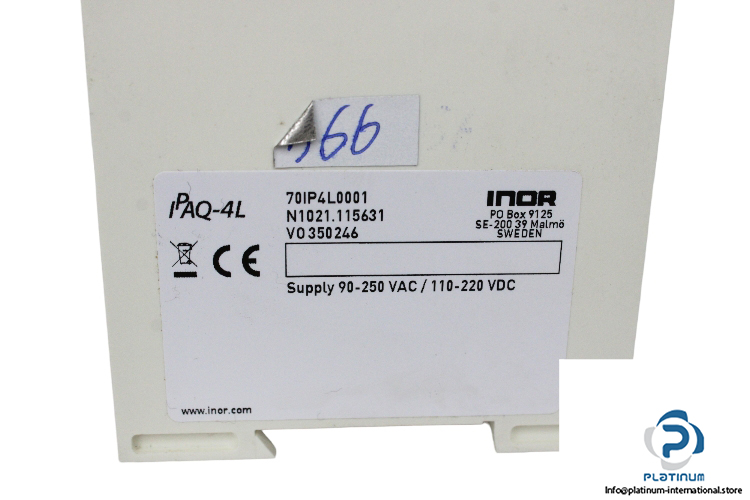

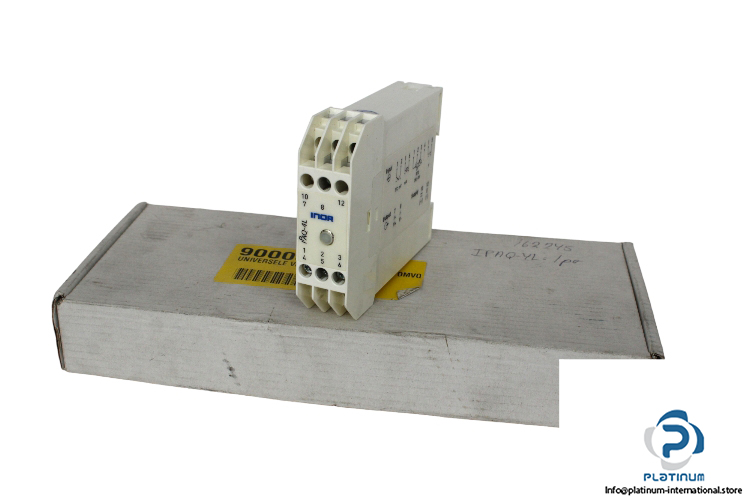

Model: IPAQ-4L

Part No.: 70IP4L0001

Supply Voltage: 90 … 250 V AC/110 … 220 V DC

Selectable Damping Time: ~2s

Power Consumption: <1.5 W
Output Current, Voltage:  4 … 20 mA; 0 … 10 V

Type of Signal Converter: Digital

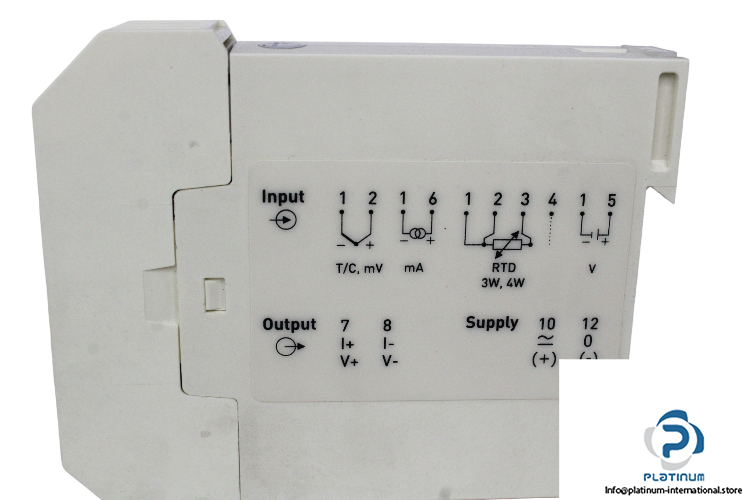

Sensor connection: 3-, 4-wire connection

Entry RTD: Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10

Input Thermocouple: Type B, C, E, J, K, L, N, R, S, T, U

Mounting: Rail acc. to DIN EN 50022, 35 mm, and wall (brackets)

Operation Temperature: -20 … 70 °C

Material: PC + ABS

Protection Degree: IP 40

Dimensions: 99 x 90 x 22.5 mm
