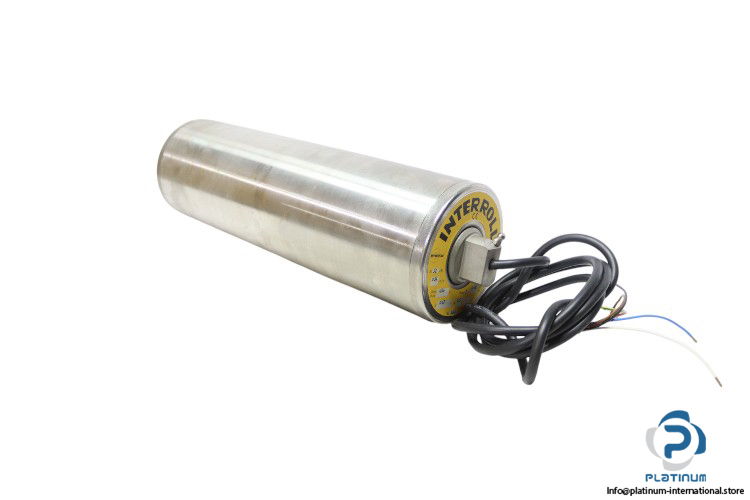

INTERROLL DRUM MOTOR 6099J

This three-phase drum motor from Interroll is built for demanding conveyor and automation systems, offering reliable performance, high ingress protection, and energy efficiency. Its integrated design minimizes maintenance while delivering consistent torque in compact conveyor applications.

Manufacturer: Interroll
Type: Drum Motor
Article No.: 6099J
Reference No.: 6523441

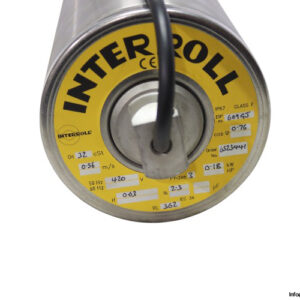

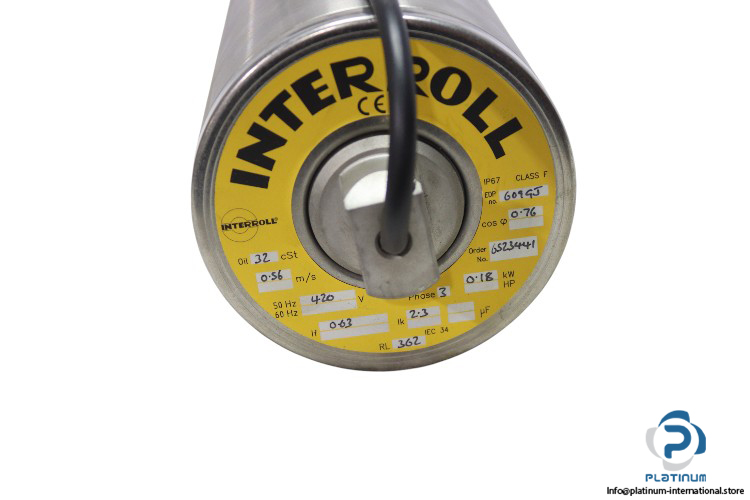

Technical Information

• Phase: 3
• Drum Speed [m/s]: 0.56
• Rated Current [A]: 0.63
• Roller or Tube Length: 362 mm
• Rated Power [kW]: 0.18
• Frequency [Hz]: 50
• Rated Voltage at 50Hz [V]: 420
• Current Consumption with Blocked Motor [A]: 2.3
• Power Factor (cos φ): 0.76
• Oil Type: 32 cSt
• Protection Class [IP]: 67
• Insulation Class: F
