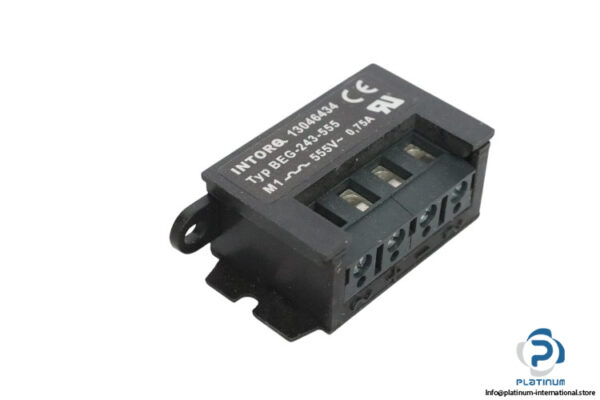

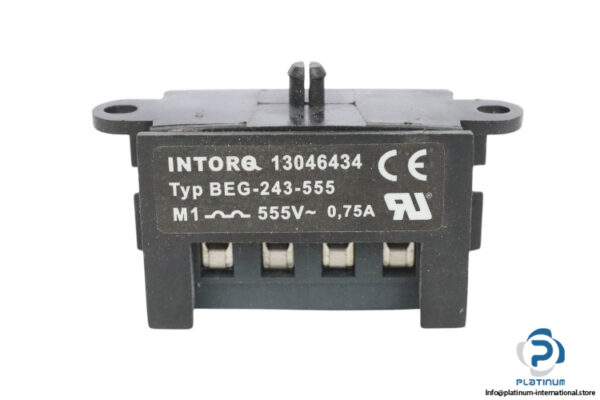

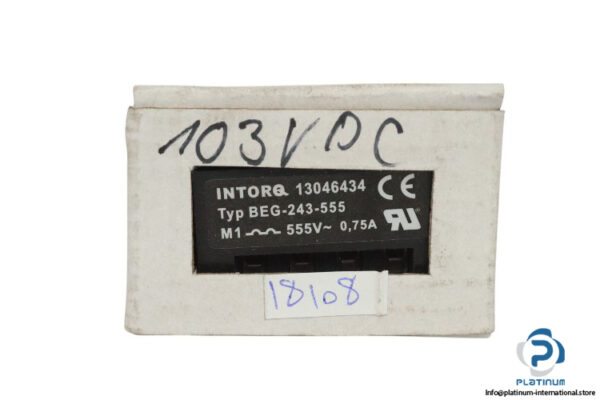

Intorq BEG243555 Half-Wave Rectifier / Motor Brake Rectifier
The Intorq BEG243555 is a high-performance Half-Wave Rectifier / Motor Brake Rectifier designed to supply power to spring-applied brakes from an AC mains connection. It ensures efficient current conversion, providing reliable operation for industrial braking systems.
Key Details:
- Manufacturer: Intorq
- Type: Half-Wave Rectifier / Motor Brake Rectifier
- Model: BEG243555
- Part Number: 13046434
Technical Information:
- Application Area: Current supply for spring-applied brakes from AC mains (normal excitation)
- Max. Mains Voltage: 555 V AC
- Current: 0.75 A
- Max. Ambient Temperature: 80°C
- Number of Poles: 4
- Dimensions: 46 x 17.5 x 25 mm
The Intorq BEG243555 rectifier is ideal for industrial motor braking applications, ensuring smooth braking performance, reduced wear, and enhanced system efficiency.
