IPC CFX2121201 CENTRIFUGAL FAN

ipc-CFX2121201-centrifugal-fan-used
ipc-CFX2121201-centrifugal-fan-used-1
ipc-CFX2121201-centrifugal-fan-used-2
ipc-CFX2121201-centrifugal-fan-used
ipc-CFX2121201-centrifugal-fan-used-1
ipc-CFX2121201-centrifugal-fan-used-2
Used
Manufacturer: Ipc

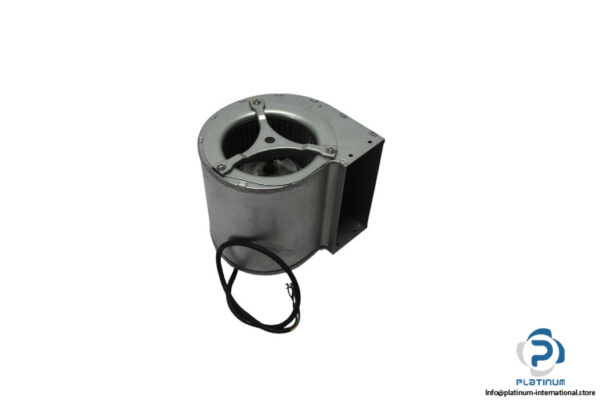

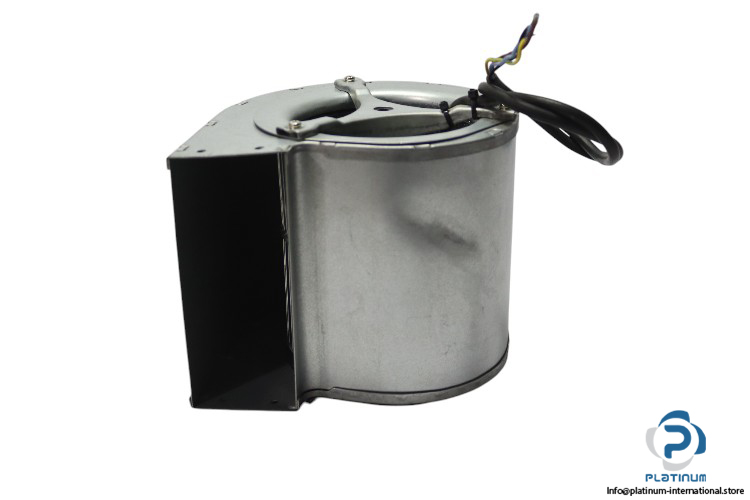

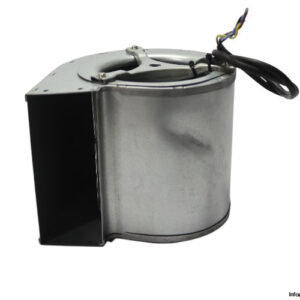

IPC CFX2121201 CENTRIFUGAL FAN

Centrifugal Fan

The IPC CFX2121201 is a powerful centrifugal fan with metal blades and housing, 230 V AC operation, and 395 m³/h max airflow. Suitable for industrial and HVAC applications with IP44 protection and low noise.

SKU: 1063665 Category: Tags: , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

IPC CFX2121201 Centrifugal Fan

The IPC CFX2121201 Centrifugal Fan is a high-performance ventilation component designed for demanding industrial and HVAC systems. Featuring a robust metal blade and housing, the fan delivers reliable airflow and efficiency. It operates on 230 V AC with variable performance across 50/60 Hz frequencies, making it suitable for a wide range of systems.

Manufacturer: IPC

Type: Centrifugal Fan

Model: CFX2121201

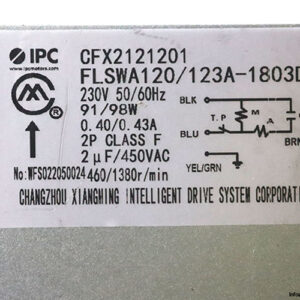

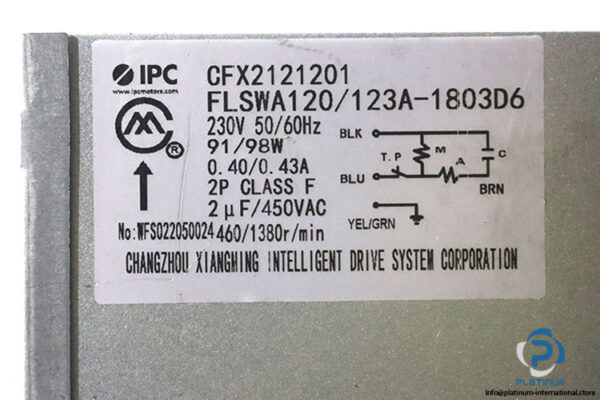

Motor Model: FLSWA120/123A-1803D6

Technical Information:

  • Dimensions: 120 x 123 mm
  • Voltage: 230 V AC
  • Power Rating: 0.091/0.098 kW (91/98 W)
  • Speed: 1460 / 1380 rpm
  • Flow Rate: 395 / 365 m³/h
  • Current: 0.40 / 0.42 A
  • Inverter: Without Inverter
  • Frequency: 50 / 60 Hz
  • Number of Wires: 4
  • Blade / Housing Material: Metal
  • Class: F
  • Noise Level: 59 / 58 dB(A)
  • Static Pressure: 316 / 432 Pa
  • IP Rating: IP44
  • Capacitor Value: 2 μF @ 450 V AC
Weight2,45 kg
Condition

No. of Wires

Manufacturer

Type of Product

Nominal Voltage [AC]

Inverter

Fan Housing Material

Frequency [Hz]

Blade Material

Shelf No.

Model

Dimensions [mm]

Power [kW]

Speed [RPM]

Current [A]

Flow Rate [m3/h]
