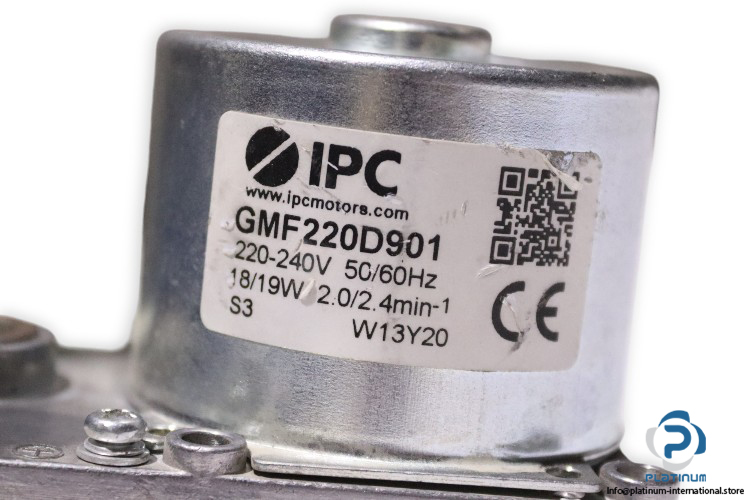

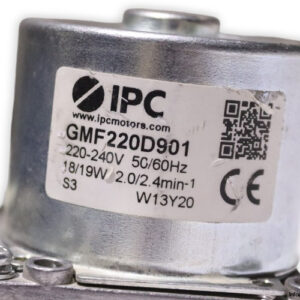

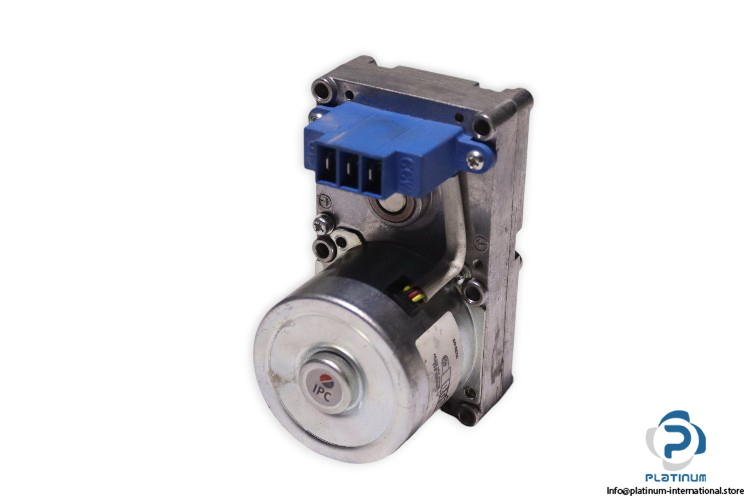

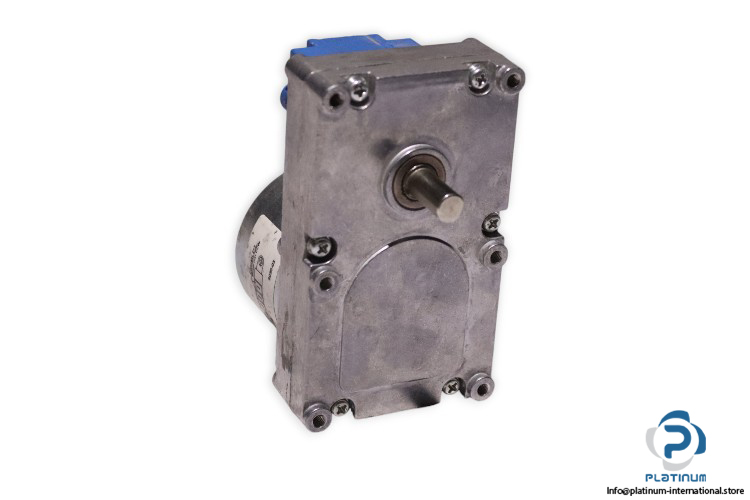

IPC GMF220D901 Gear Box Motor

The IPC GMF220D901 Gear Box Motor is a compact and durable drive unit designed for low-speed, high-torque motion applications. Featuring an aluminum alloy gearbox housing and reliable S3 duty cycle, it ensures efficient performance and long operational life for industrial and mechanical equipment.

Manufacturer: IPC
Type: Gear Box Motor
Model: GMF220D901

Technical Information

Rated Voltage: 220 / 240 V
Rated Frequency: 50/60 Hz
Rated Power: 18/19 W
Rated Speed: 2.0 / 2.4 rpm
Rated Torque: 18 Nm
Rated Current: 0.07“0.09 A @ 50 Hz, 0.07“0.10 A @ 60 Hz
IP Rate: IP20
Max Torque: 22 Nm
Type of Service: S3 (10%“80% Duty Cycle)
Stall Torque: 25 Nm
Operating Temperature: -10°C / +70°C
Gearbox Shell Material: Aluminium Alloy
Shaft Diameter: 9.5 mm
