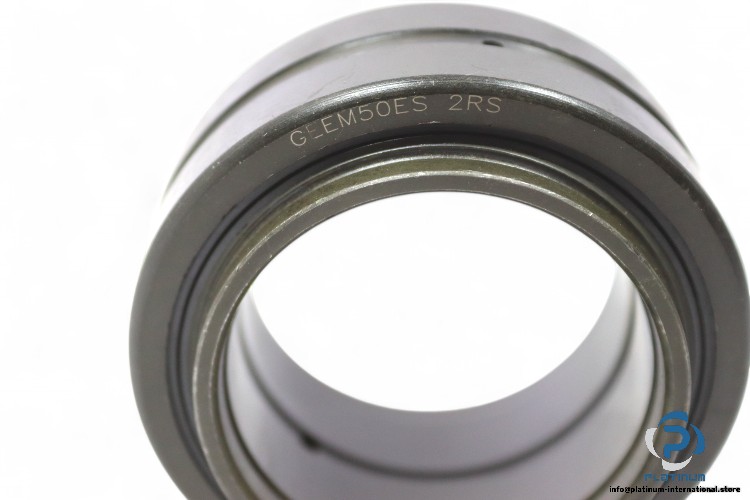

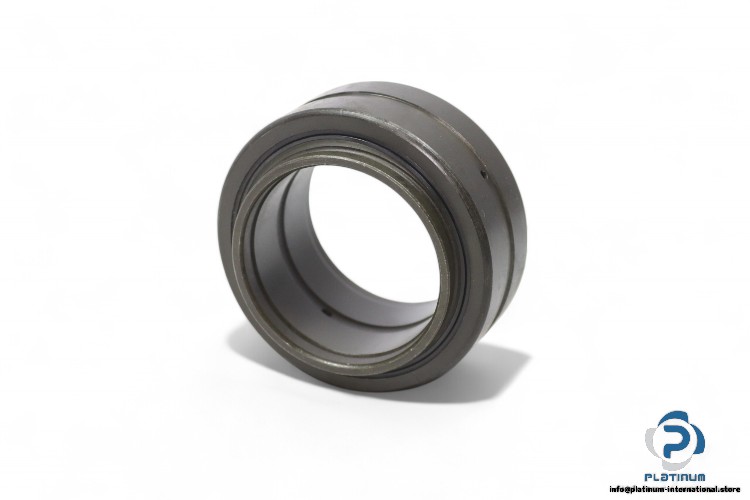

ISB GEEM50ES 2RS Spherical Plain Bearing
The ISB GEEM50ES 2RS Spherical Plain Bearing is a high-performance bearing designed for heavy-duty applications requiring smooth articulation and high load capacity. Featuring a steel-on-steel sliding contact surface and double-lip seals on both sides, this bearing ensures durability and protection against contaminants.
- Manufacturer: ISB
- Type: Spherical Plain Bearing
- Model: GEEM50ES 2RS
Technical Information
- Bore Diameter (d): 50 mm
- Outer Diameter (D): 75 mm
- Width, Inner Ring: 43 mm
- Width, Outer Ring: 28 mm
- Contact Angle: 3°
- Dynamic Load Rating: 156 kN
- Static Load Rating: 780 kN
- Sealing: 2RS, Double-lip seal on both sides
- Sliding Contact Surface Combination: Steel/Steel, Standard
