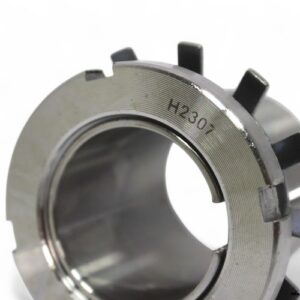

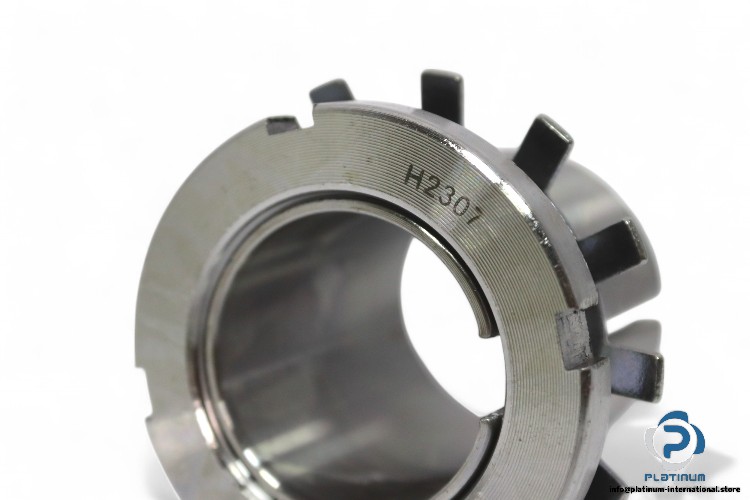

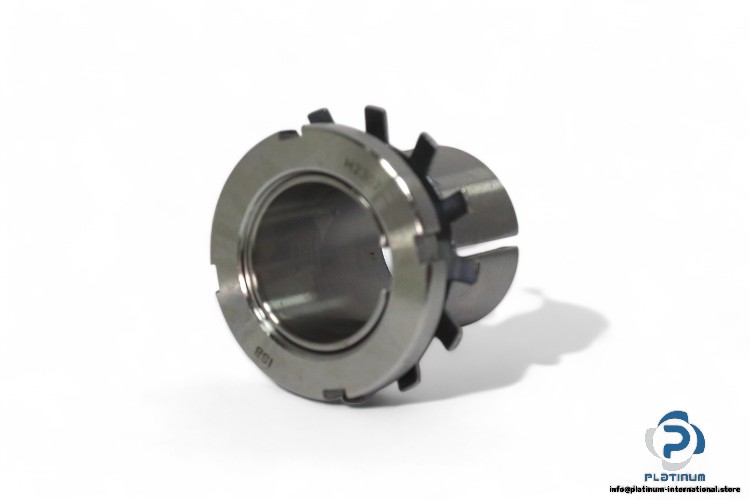

ISB H2307 Adapter Sleeve
The ISB H2307 Adapter Sleeve provides a reliable solution for mounting spherical roller bearings and other components onto shafts. With a robust design, it features a tapered outer diameter and comes with a lock nut and washer for secure fitting.
Manufacturer: ISB
Type: ADAPTER SLEEVE
Model: H2307

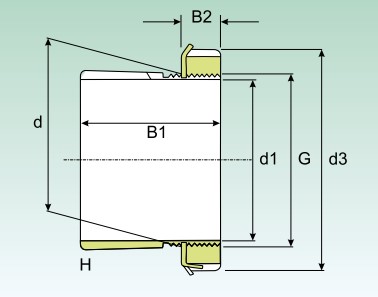

Technical Information:
- Bore Diameter (d1): 30 mm
- Outside Diameter Small Taper (d): 35 mm
- Outer Diameter Lock Nut (d3): 52 mm
- Width (B1): 43 mm
- Width Lock Nut Including Lock Washer (B2): 9 mm
- Thread (G): M35x1.5
- Lock Nut: KM 7
- Washer: MB 7
This adapter sleeve offers secure mounting and is commonly used in applications where precision and strength are essential for bearing installation. Its compact design and tapered fit ensure ease of installation and stable performance.
