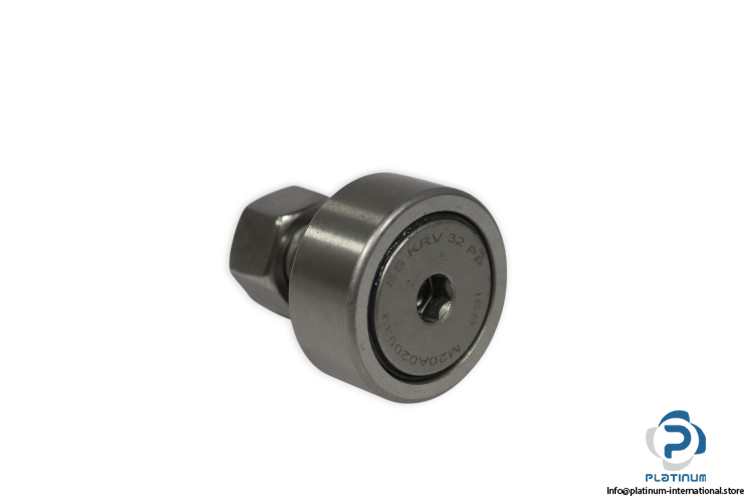

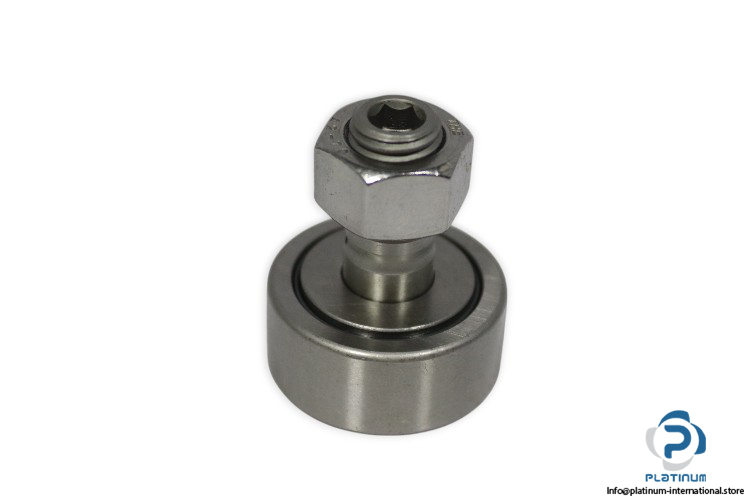

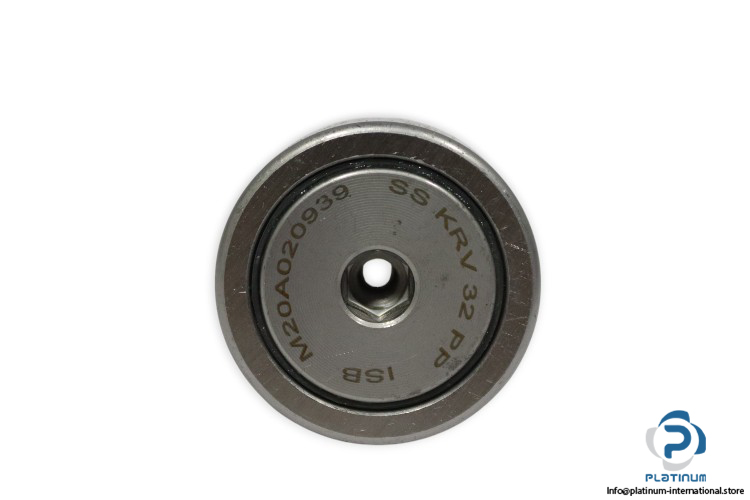

ISB SSKRV32PP Stainless Steel Stud Type Track Roller
The ISB SSKRV32PP Stainless Steel Stud Type Track Roller is designed for high-load applications, offering durability, precision, and reliability. Ideal for systems requiring stable movement under radial loads, this roller ensures smooth performance with robust sealing and efficient lubrication.
Manufacturer: ISB
Type: STAINLESS STEEL STUD TYPE TRACK ROLLER
Model: SSKRV32PP
Technical Information:
- Outside Diameter (D): 32 mm
- Fit Diameter of Roller Stud (d1): 12 mm
- Width of the Roller Stud (B): 40 mm
- Roller Width (B1): 15.2 mm
- Thread (G): M12X1.5
- Thread Length: 13 mm
- Basic Load Ratings, Radial:
- Dynamic (Crw): 10500 N
- Static (C0rw): 15800 N
- Fatigue Load Limit (Curw): 1990 N
- Nut Tightening Torque: 22 Nm
- Speed on Permanent Grease Lubrication: 2100 rpm
- Sealing: PP, seal on both sides
Built with a stainless steel stud for added durability, this track roller offers long-lasting performance in industrial applications, with excellent sealing and reliable grease lubrication for smooth operation.
